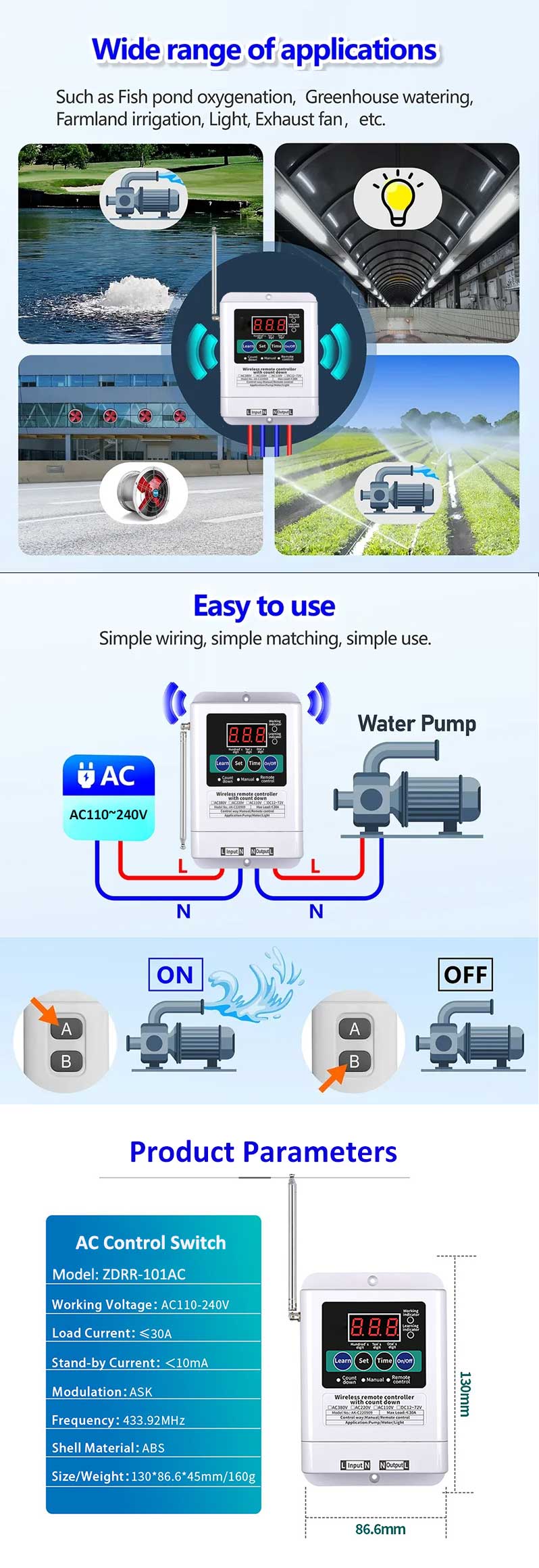

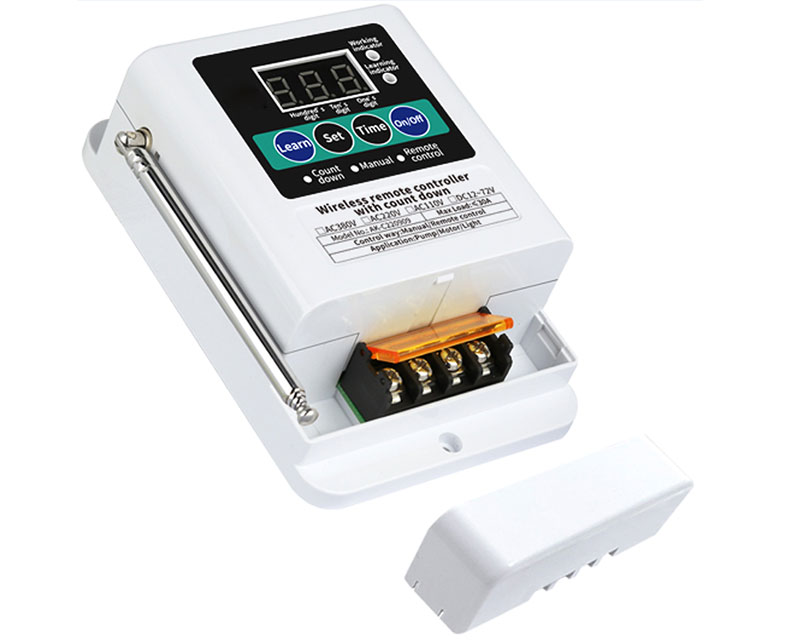

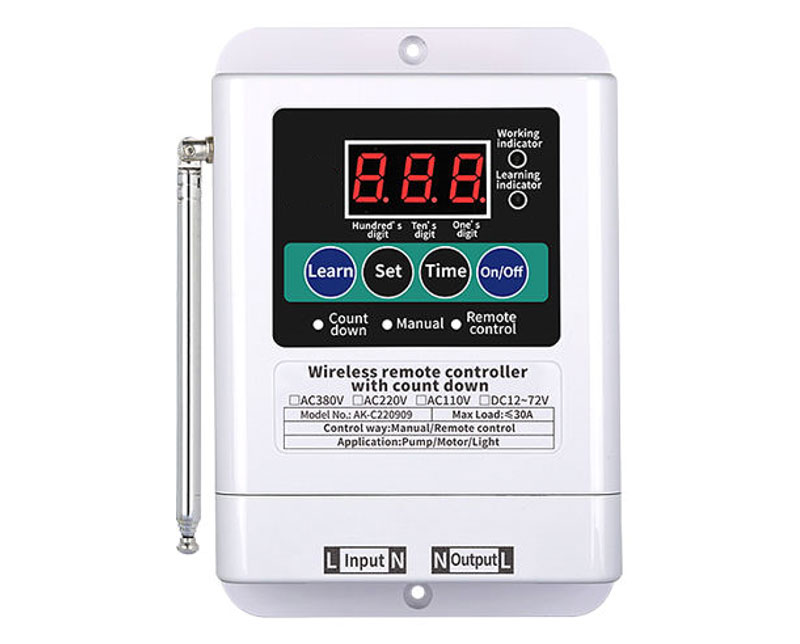

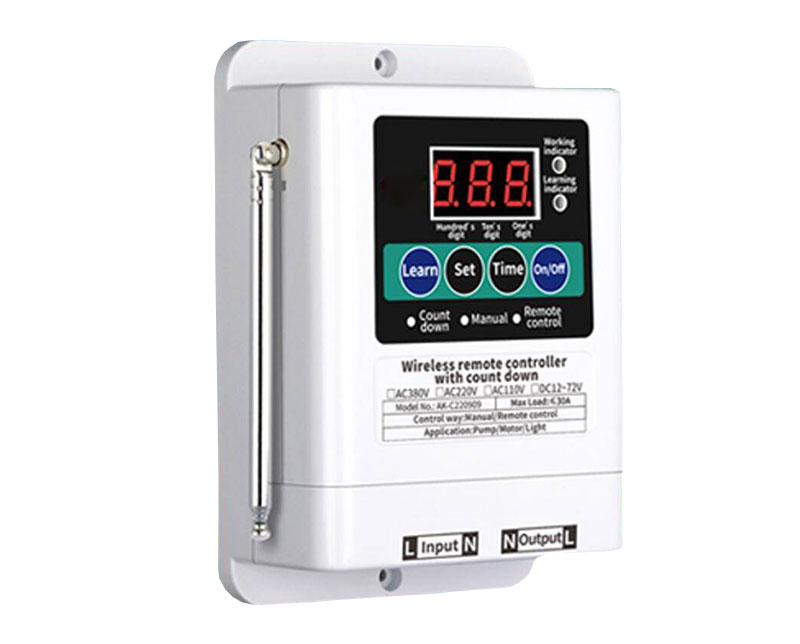

AC220~240V Wireless Remote Control Switch With Delay Setting:  1 Channel output, 200~500M long distance transmission, 30A Maximum load current, AC220~240V wide range voltage, with Time-Delay setting from 1~999 minutes.  It's an idea wireless solutions for automatic control application like: Remote control Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission \ Electrical equipment etc, various wireless appliance switch to switch on/off of equipment controlling . Can work with same frequncy ZUDSEC remote controller.

- Remote Control Water Pump:

- High security, larger storage, stable performance, low power consumption and easy operation.
- Learning code between remote control and wireless relay receiver
- Can learn up to 20 different remote controls each wireless relay receiver.
- 200~500M long distance remote control

- Maximum load current≤30A

- Wider Range of Application:

* Factory \ Farm \ Office \ Instrument;

* Remote control Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission \ Electrical equipment.

• Time-delay mode:  1~999 minutes adjustable


• Output method; terminal block;

• Demodulation method: ASK;

• Shell material: ABS;

• Max. number of learning codes: 20;

• Operating voltage: AC100-240V; AC or DC ouput can be customized.

• Standby Currentt: <10mA; No-load operating current: <15mA

• Receiver sensitivity-105dBm

• Maximum load current≤30A

• Wireless Frequency: 433MHz

• Coding type: learning code

• Transmit distance：200-500M (Optional)

• Operating temperature ：-20℃ ~ +70℃

• Relay Receiver ：130mm×87mm×45mm;  Weight: 161g/pc;

Package Contents:

• Standard Exporting Packing Box
