Blind Engine: ZDCM-AM43-WF

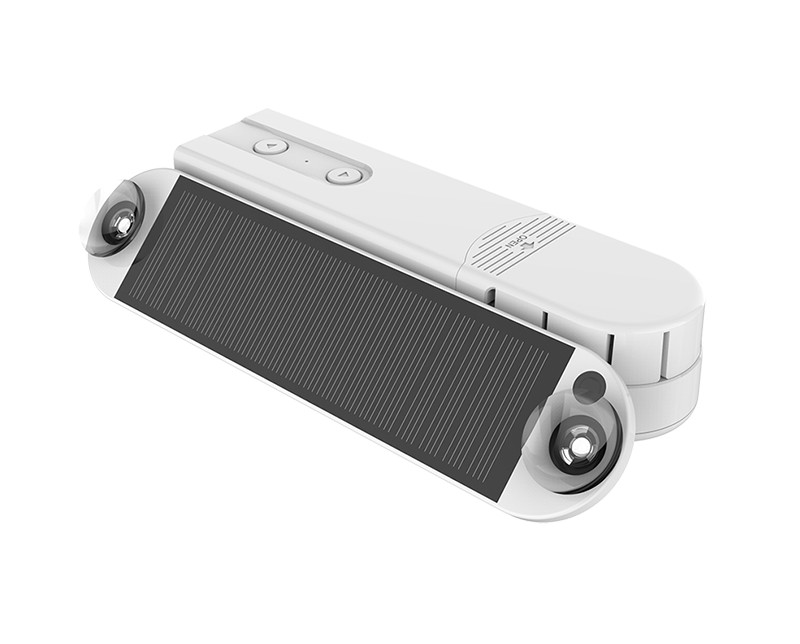

Blind Engine with Solar panel

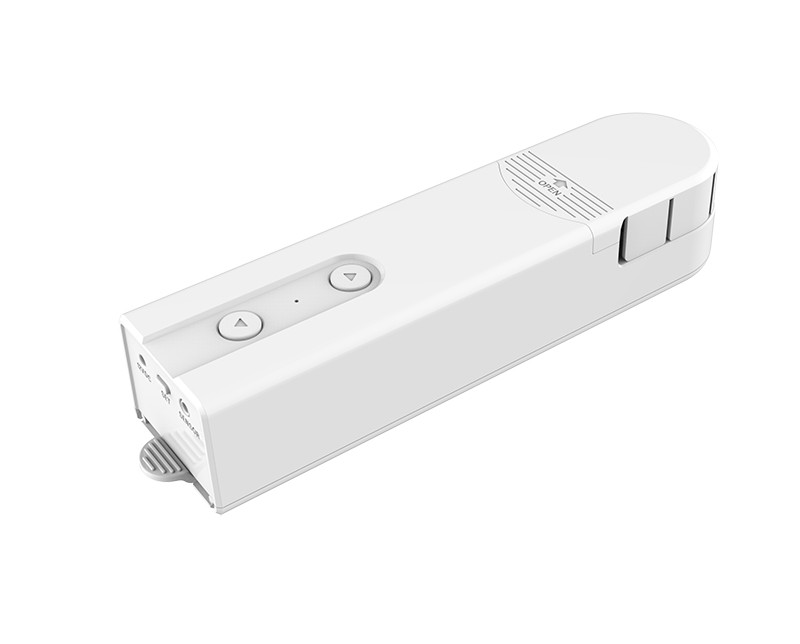

Wifi Motorized Roller Blind Engine

MODELZDCM-AM43-WF

Facebook Twitter InLink instagram Youtube Skype
  • Smart DIY Motorized Roller Blinds/Shades Drive Motor

  • Bluetooth bi-direction technology

  • Powered by Solar Panel and Charger

  • Control via Smartphone App Freely

  • Custom Schedules & Accurate Timing Setting

  • Simple DIY Installation


Smart Motorized Roller Blinds/Shades Drive Motor: Easily installation & Voice Control, Connected with Smart Life app, Motorize your own blind and control on your smart devices. Simply attach the Blind Engine to wall or window frame and link the blind cords. Raise and lower your blinds anytime and anywhere. It is possible to control multiple blinds simultaneously. Set schedule or location for automatic operations.



Wifi Motorized Roller Blind Engine(图1)

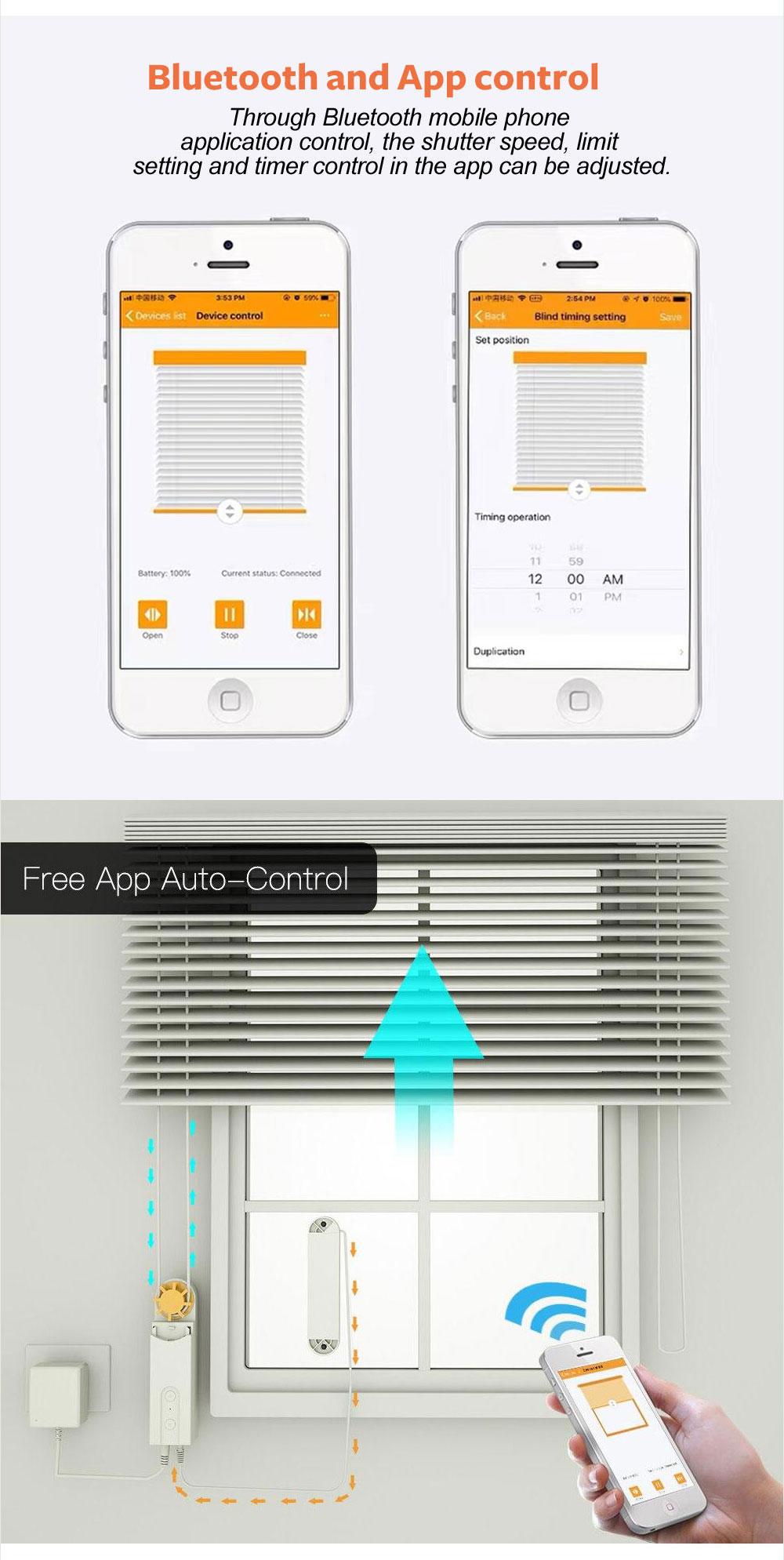

Wifi Motorized Roller Blind Engine(图2)

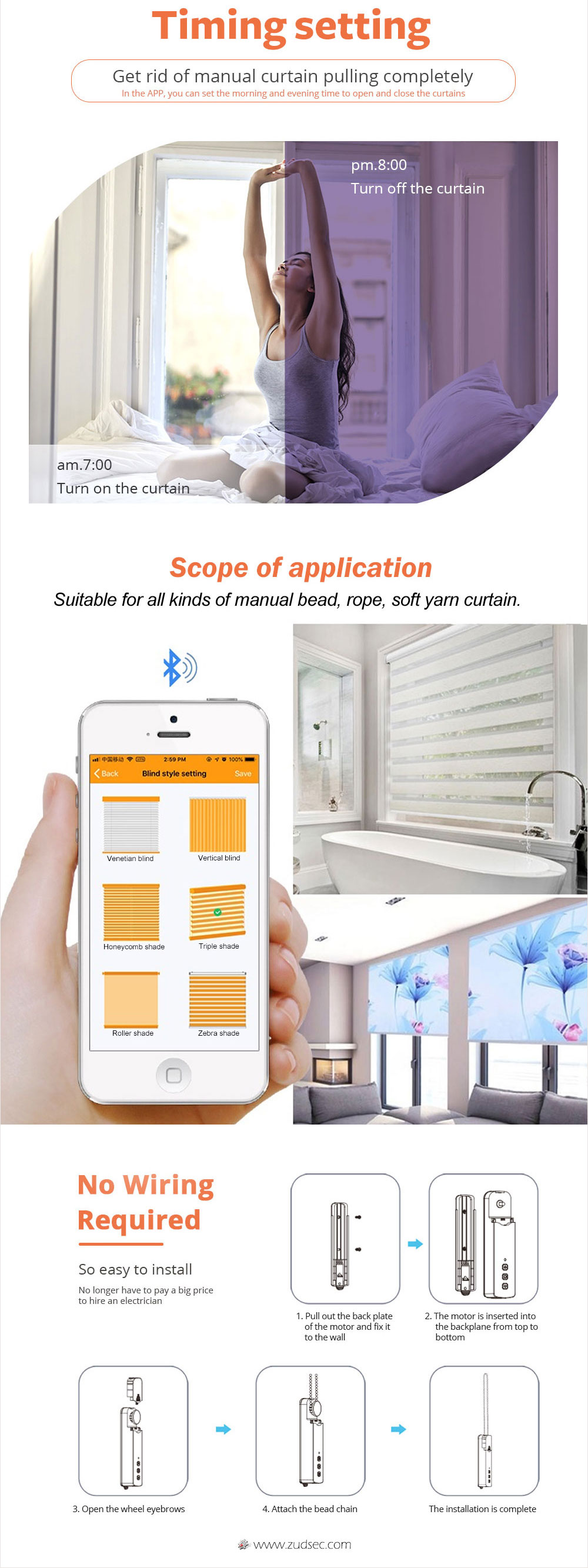

Wifi Motorized Roller Blind Engine(图3)


- Smart Home Automation: Automate your existing blinds, shades, curtains in the simplest and most cost-effective way. Motor can set upper & bottom limit positions and limits can be saved even when power off. And motor speed can be adjustable on APP. Simply add motorized shades to your smart home with Smart Blinds Drive Motor!

- Simple DIY Installation: No installers or a degree in rocket-science required. Easily install and setup Blinds Drive Motor in minutes. Works with any plastic beaded chain or metal beaded chain that is looped.

- Solar Panel or Li-battery Charging: Powered by solar panel of light sensor or charger(adaptor is included) ensures long time continuous working with the large battery capacity.Even save more money and energy with the solar panel charging.

- Control via Smartphone App Freely: Control your new smart blinds directly with Smartphone App or its intuitive Touch Strip controls. Even you want to move your blinds from your bed,your couch or with one touch on Gear.

- Custom Schedules& Accurate Timer Setting: Set schedule and timer of your blinds independently. Also strengthen smart control with light sense automatic identification pipeline,including single control, group control, as well as slow start and slow stop control. Even set custom schedules and accurate timers throughout the day, week and month and choose from winter mode to summer mode as your requirements. Also 6 different scenes are free to be added.

- Multiple Compatibility: Compatible with a variety of shades, blinds, curtains, and drapes with the new update manual. Note:Open the Bluetooth before using the App.


  • APP Remote Control: Smart life

  • Input Voltage: 110-240V

  • Solar Panel Specs: 12V/0.3W

  • Input Power: DC Charger 8.4VDC

  • Battery Capacity: 7.4VDC/1000mAh

  • Frequency: 2.4GHz

  • Torque: 0.45Nm


Package Contents:

  • Smart Blinds Drive Motor*1

  • Solar Panel*1 Adapter*1

  • Screw*2

  • Gear*3

  • 3M VHB*1
