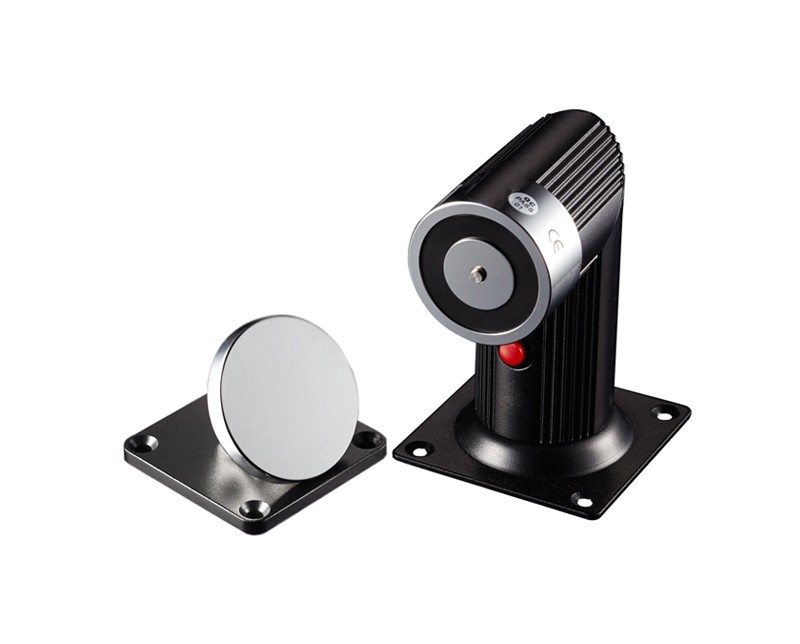

Floor Mount Door Holder: Adopts low power consumption, that makes it more environment friendly and more durable. The Holding Force(Collinear Load) is 60kg(120Lbs)Professional anti-residual magnetism design ensures highest security. It will release automatically the fire door when fire alarms. It also contains build-out release button for testing and build-in MOV which reverse current protection.

- Dual Voltage 12/24VDC(Adjustable)
- MOV provides Reverse current protection.
- Emergency release button or Testing button.
- Floor and wall Mounted
- Build-out release button
- Low-Power design
- Fail Safe Security settings
- Durable operation

• Holding Force: 60kg(120Lbs)

• Input Vatage: 12/24VDC

• Current Draw:  DC12V/170mA or DC24V/85mA

• Suitable for:   All Kind of the Single & Double Smokeproof Door

• Finishes for Shell High temperature paint and Environmental protection zinc

• Finishes for Armature Zinc

• Environment humidity: ≤ 95% RH (no congelation);

• Operating temp. ：-10 to +50°

• Dimensions: 80Lx80Wx120Hmm; Gorss Weight:1kg

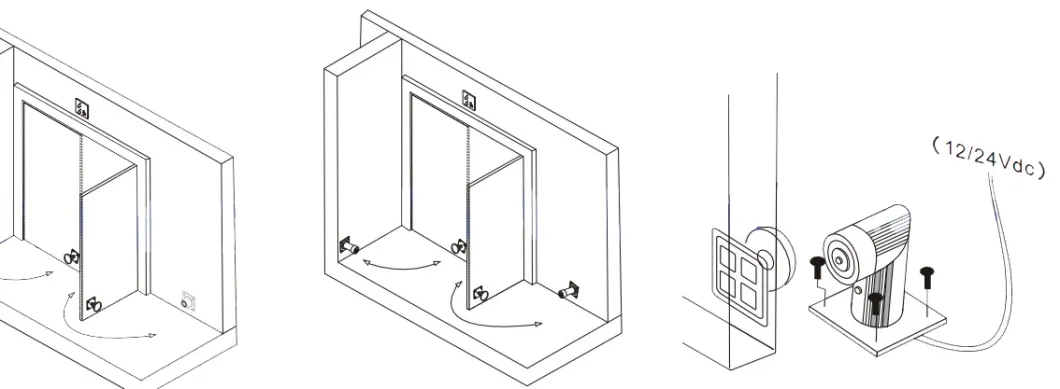

Installation:

Package Contents:

• Standard Exporting Packing Box
