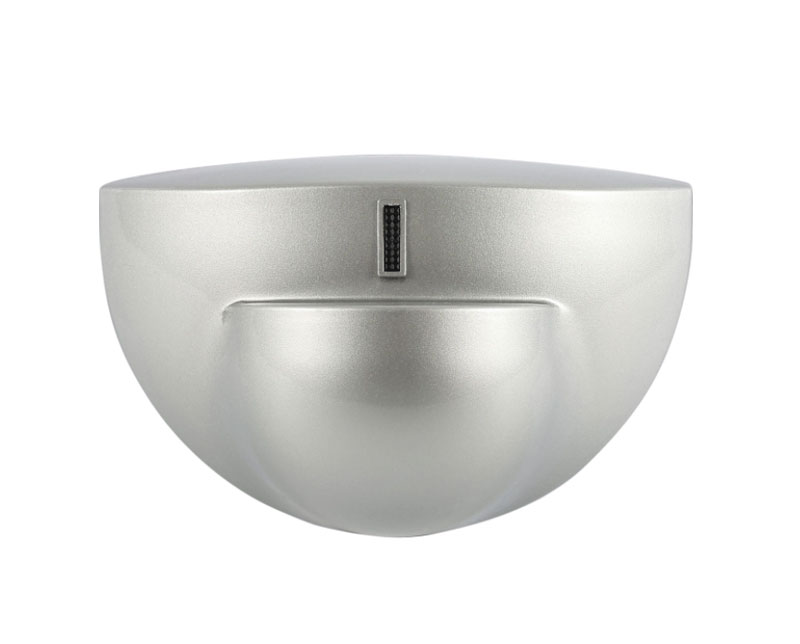

Microwave sensor: ZDMS-002
Swing Door Operator: ZDAD-100L /100S

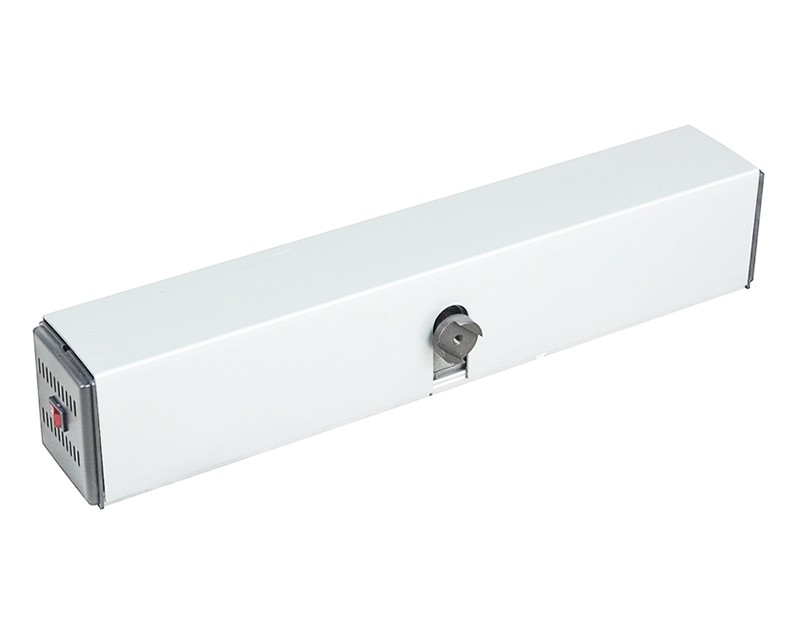

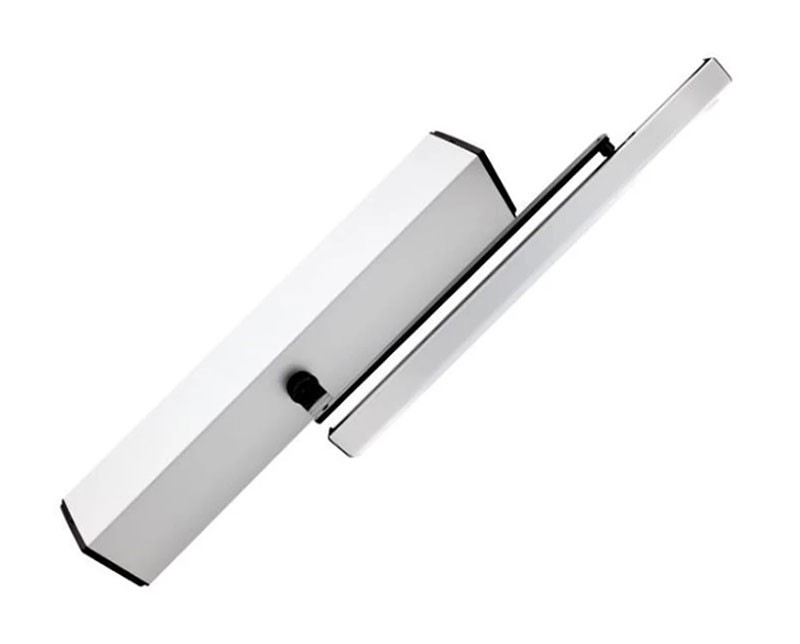

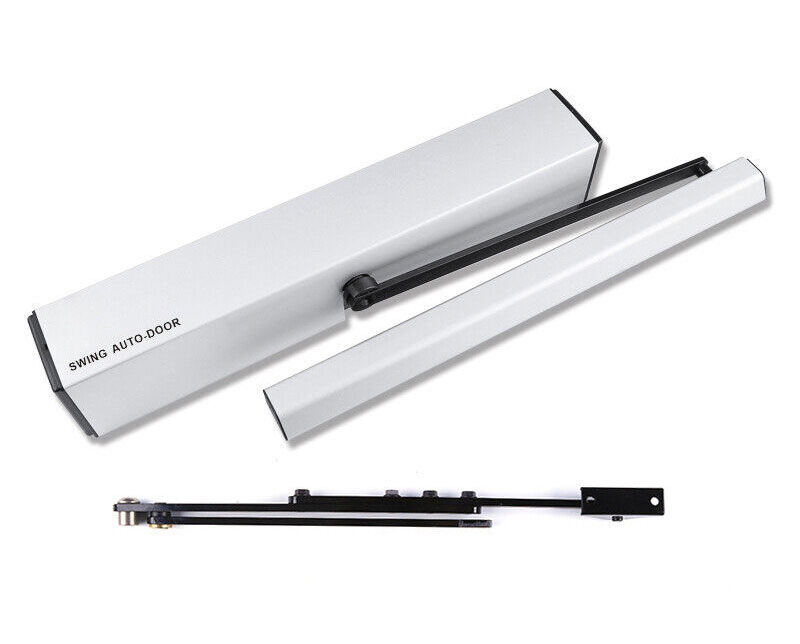

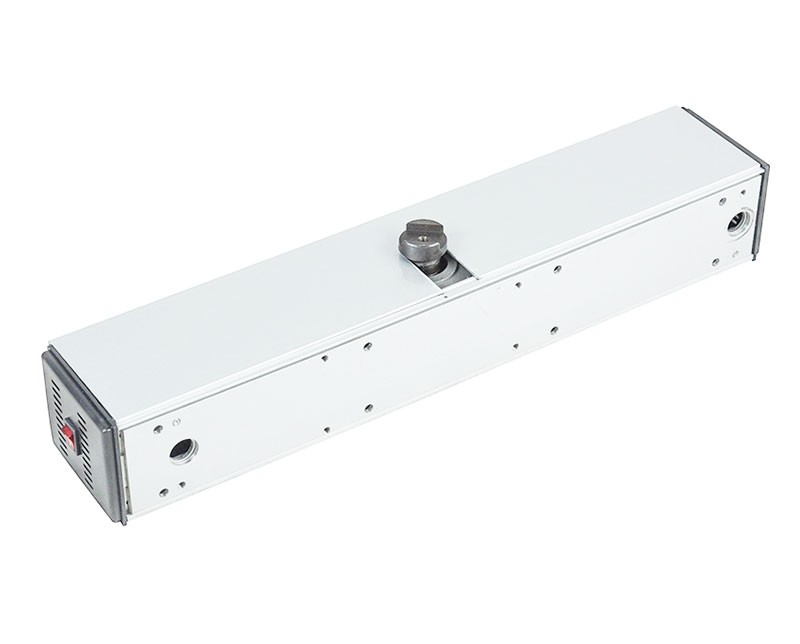

Multi-Angle View
Multi-Angle View
Multi-Angle View

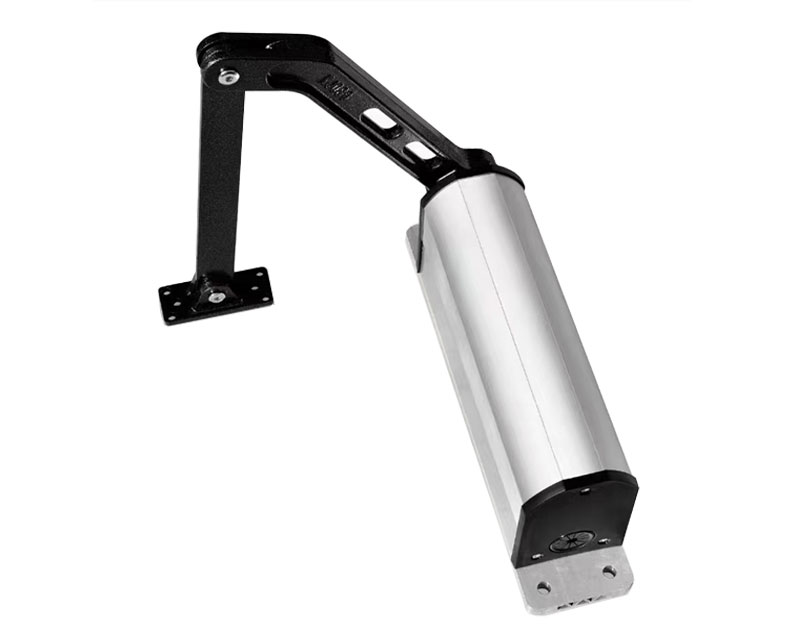

Automatic Swing Door Operator

MODELZDAD-100

Facebook Twitter InLink instagram Youtube Skype
  • Safe and reliable

  • Adjustable Opening & Closing Speed

  • Adjustable automatic closing time

  • Brushless motor with self-locking

  • Low energy, Auto-Reverse

  • Surface mounted and overhead concealed installation

Automatic Swing Door Operator: The ZudSec ZDAD-100 is the ideal low energy operator for applications that need reliable, durable entrances with the strength to withstand continuous usage. The electro-mechanical surface mounted operator is extremely quiet and flexible with unique features not found in other low energy operators, including stack pressure compensation, lock circuit retry, electronic dampening, power assist, obstruction control and low power consumption.


With adjustable open and closing speeds, the ZudSec ZDAD-100 can be configured to meet precise requirements, eliminating wear on the motor and safeguarding the life of the product. The ZudSec ZDAD-100 also offers safety features to match its excellent performance, helping foot traffic flow smoothly and efficiently.


2 working modes:

1. Standalone use: open it by remote control and close it automatically

2. Work together with door access control system: enter by face, RFID, password or fingerprint, and exit by exit button or microwave sensor.

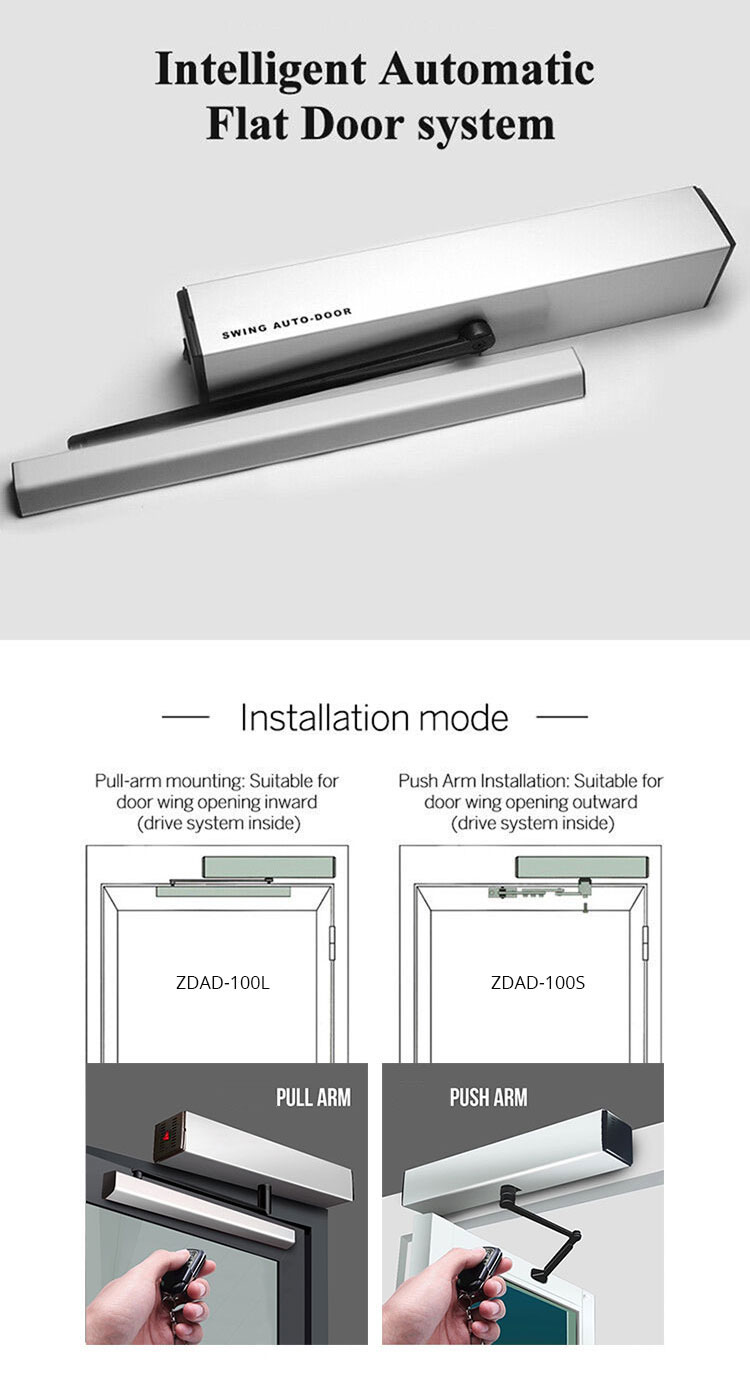

- Optional model:

* ZDAD-100L with pull arm for open inside.

* ZDAD-100s with push arm for open outside.

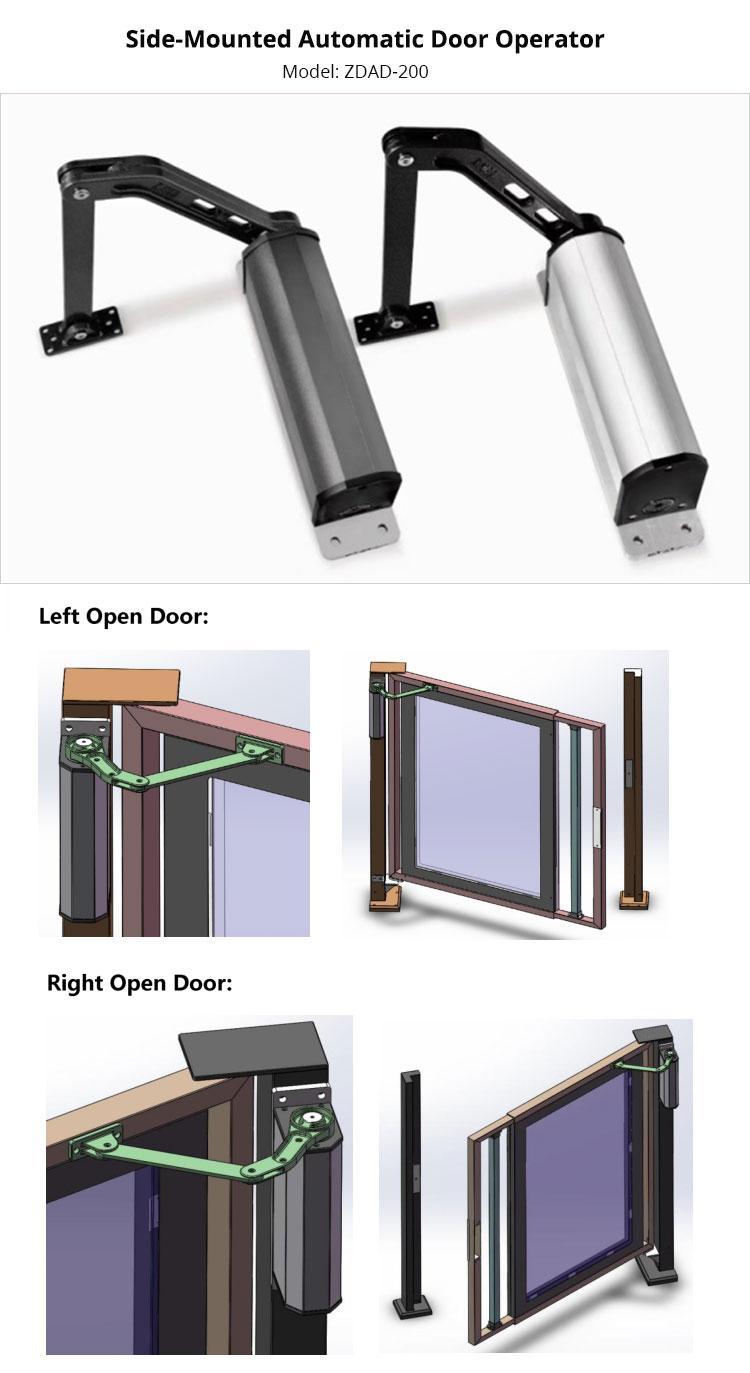

* ZDAD-200 for Side-mounted Flat Swing Door.

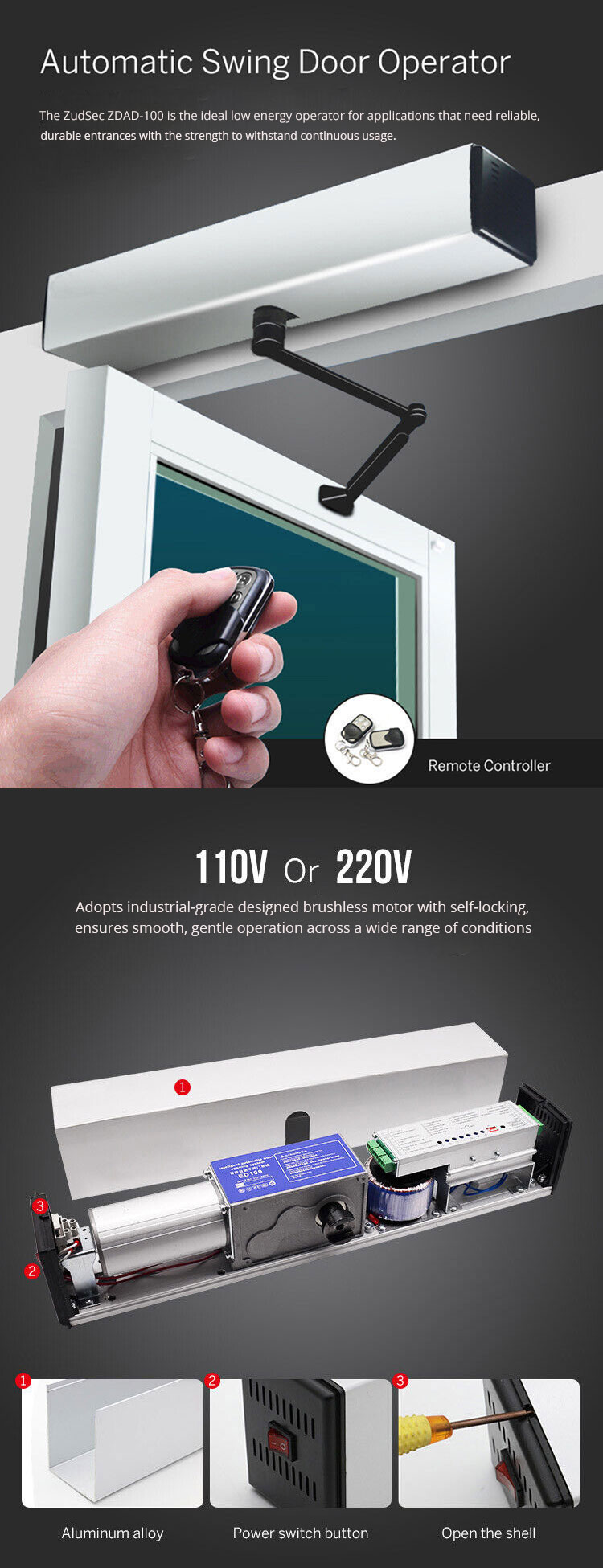

Automatic Swing Door Operator(图1)

Automatic Swing Door Operator(图2)

Automatic Swing Door Operator(图3)


-  Offers advanced technology that ensures smooth, gentle operation across a wide range of conditions.

- An advanced and reliable microprocessor controller is applied.

- Brushless motor with self-locking, a long life span, and energy conservation.

- Opening & Closing Speed adjustable.

- Automatic/Lock/One Way/Half-open/Hold-open status can be set by remote key.

- Opening and closing smooth with low noise.

- Safety interlock and electric lock function.

- Support multiple access control systems and Fire Alarm System

- Auto-Reverse

  • Surface mounted and overhead concealed

  • Power supply: AC220V / 110V

  • Opening time 3~7s / 90°

  • Opening and holding time 1-30s

  • Door Weight: <100Kg

  • Door width: <1200MM

  • Protection level: IP12D

  • Temperature -20ºC~55ºC

  • Product volume 515x95x90mm


Package Contents:

  • Standard Exporting Packing Box
