Multi-Angle View

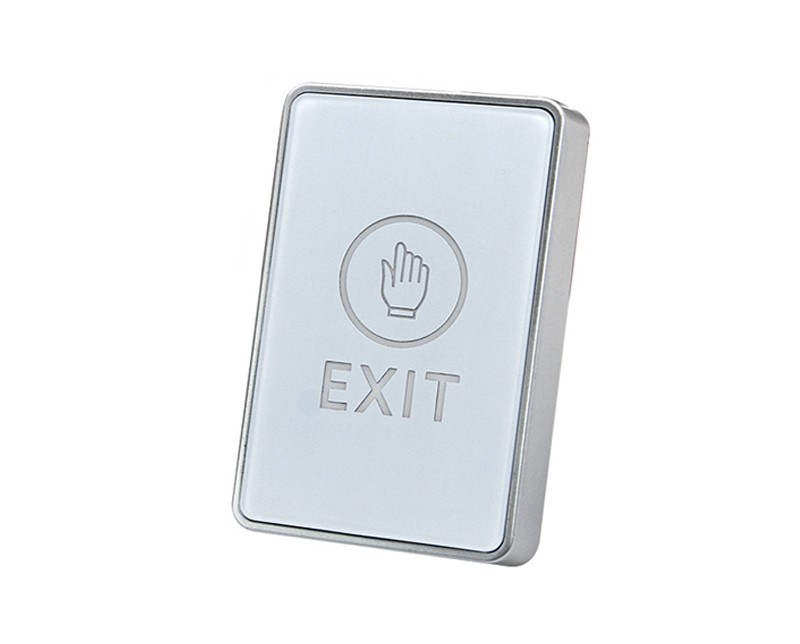

Touch Screen Exit Button: ZDBT-901B
Multi-Angle View
Multi-Angle View

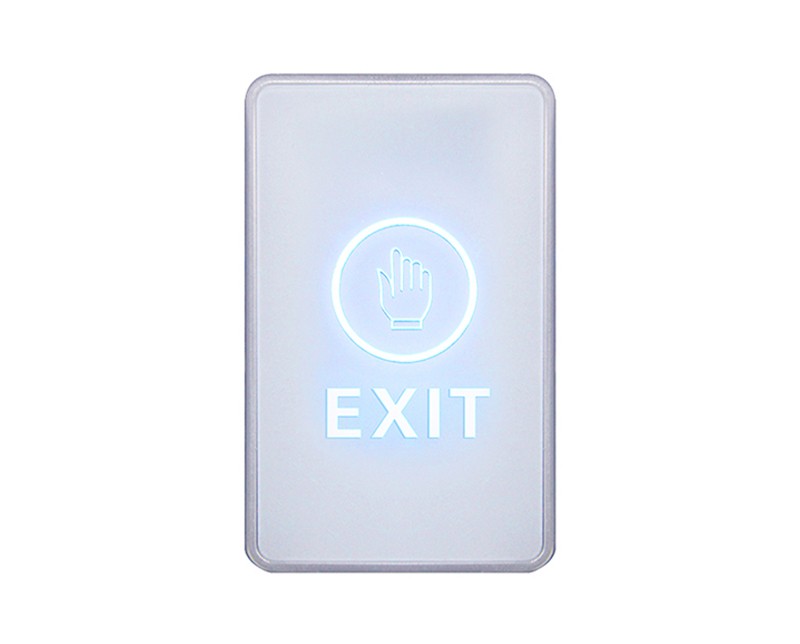

White Color
Multi-Angle View

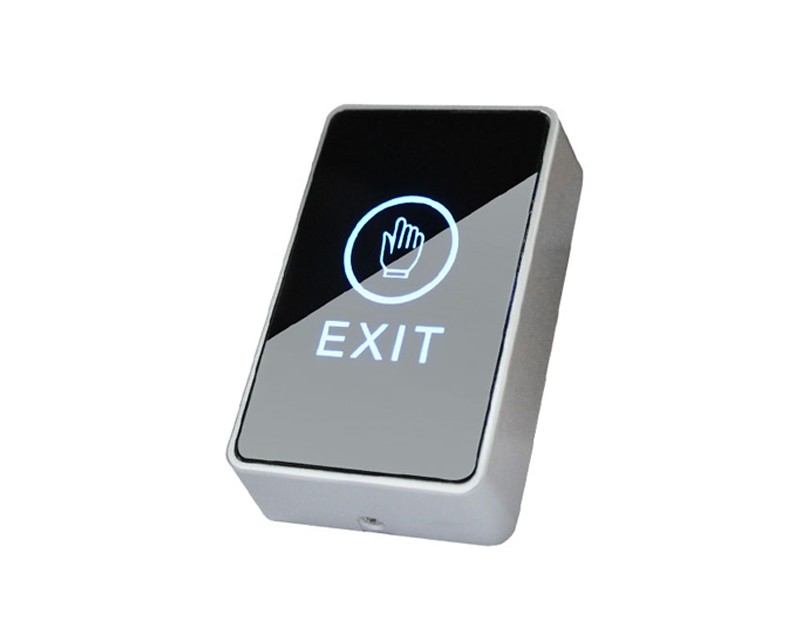

Touch Sensor Exit Button

MODELZDBT-901B

Facebook Twitter InLink instagram Youtube Skype
  • Luxury & Fashion design

  • Touch to exit technology

  • Surface mount

  • 500000 times life

  • NO\NC\COM output contact

  • No Mechanical Fault

Touch Sensor Exit Button: Touch design, Surface mount, 500000 times life, NO\NC\COM output contact, Surface installation. Can be used as door release button, it's widely used for access control system.

- Touch to exit
- Output Contact: NO\NC\COM
- Mechanical Life: 500000 tested
Surface installation
- Suitable for access / entrance / automation


Touch Screen Exit Button(图1)


  • Output Contact: NO\NC\COM

  • Input: DC12V

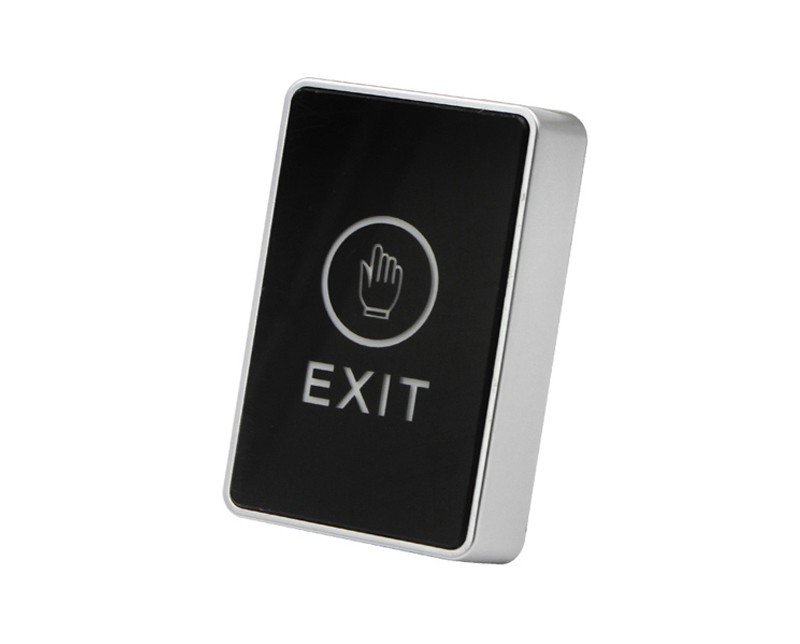

  • Surface installation, Black Color

  • Standard Structure: scratch-resistant acrylic panel (can be loaded into a standard 86 bottom box)

  • Mechanical Life: 500000 tested

  • Trigger device: Touch

  • Surface Intallation

  • LED indicator status: white patterned light is off state

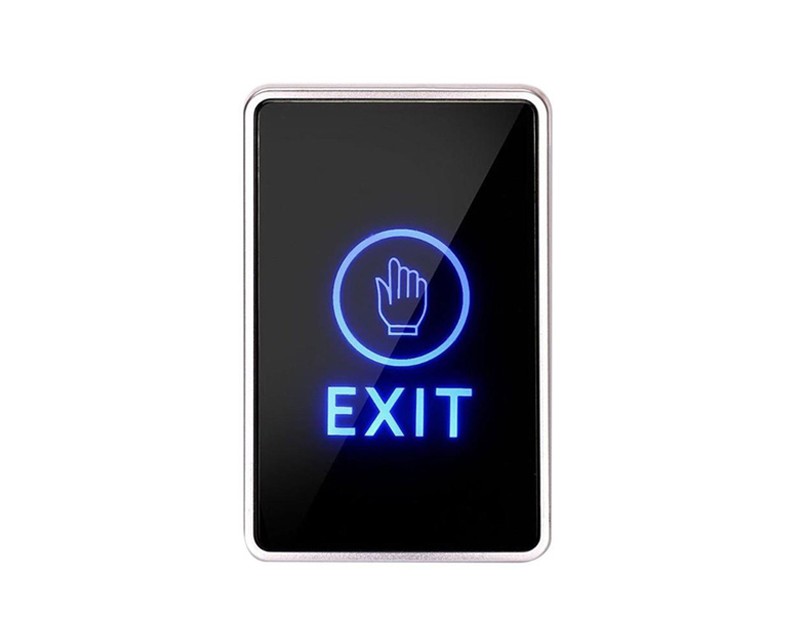

    LED Status: pattern light blue to standby
    LED Status: patterns of work status indicator is red

  • Operating temp: 10~+55℃(14-131F)
    Operating Humidity: 0-95% (non- condensing)

  • Product Size: 86Lx56Wx25H(mm)

  • Packing size: 105*95*42mm; Weight: 0.1kg


Package Contents:

  • Standard Exporting Packing Box
