Plastic Exit Button: ZDBT-A5

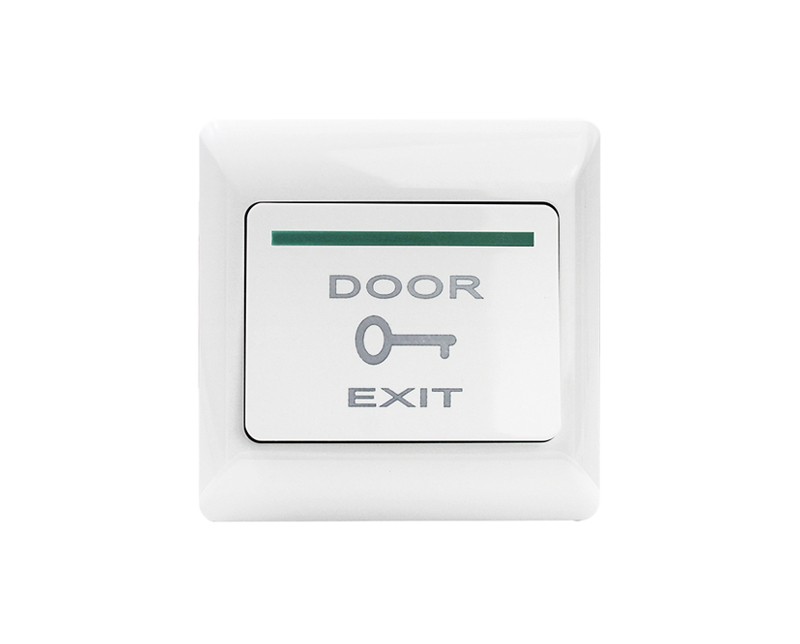

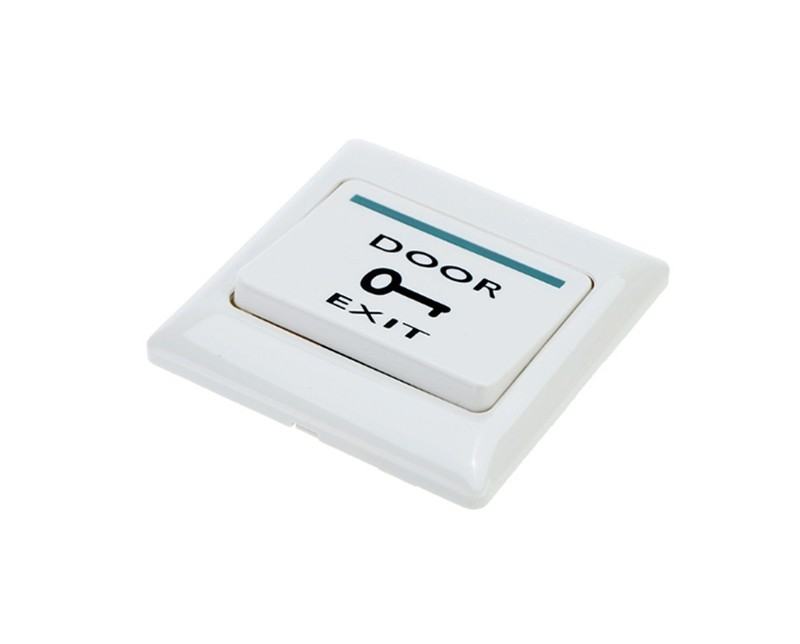

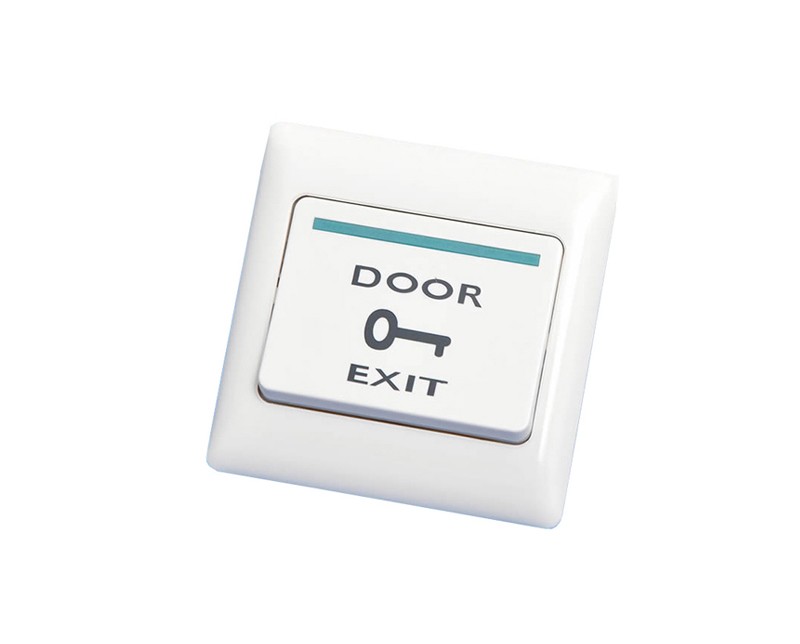

Multi-Angle View
Multi-Angle View
Multi-Angle View

Plastic Exit Button

MODELZDBT-A5

Facebook Twitter InLink instagram Youtube Skype
  • fireproofing PC material

  • Recessed Intallation

  • With Noctiluca instructions

  • 500000 times life

  • No Mechanical Fault

  • Contait Output: NO. (NC.&NO. can be customized)

  • Suitable for all kinds of locks

Door Release Button:  NO. output, Recessed Intallation, Auto reset, Fireproof Material, ABS Plastic Housing,Can be used as door release button



- Optinal model: ZDBT-A5S (Surface installation)


Plastic Exit Button(图1)


- Auto reset, ABS Plastic Housing, 100000 times life
- Fireproof Material  Structure
- Output Contact:  NO. (NC.&NO.contact can be customized)
- Can be used as door release button

  • On-off mode: automatic reset

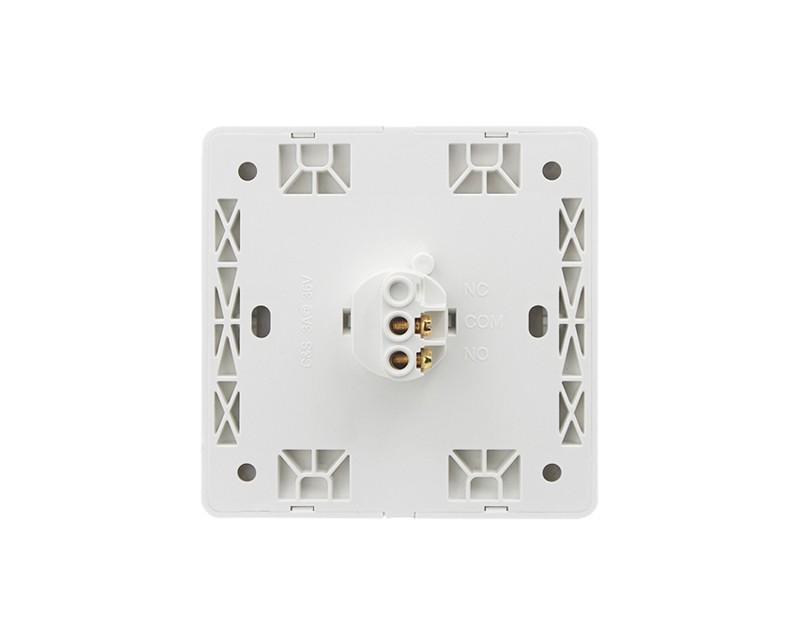

  • Contact Output: NO. (NC.&NO. contact can be customized)

  • Current Rating:  3A 36VDC Max

  • Suitable for Door: Concealing Box

  • Operating temp: 10~+55℃(14-131F)

  • Operating Humidity: 0-95% (non- condensing)

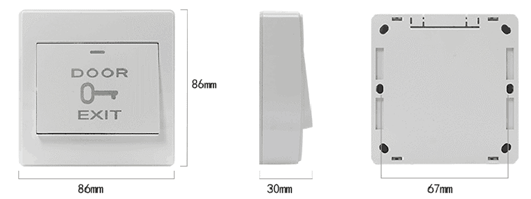

  • Dimension:86×86mm; Weight: 0.15kg

  • Packing size: 19.5*15*9.5cm,10pcs/CTN; Weight: 0.15kg


Package Contents:

  • Standard Exporting Packing Box
