Push Button
Infrared Sensor Exit Button:ZDBT-701P

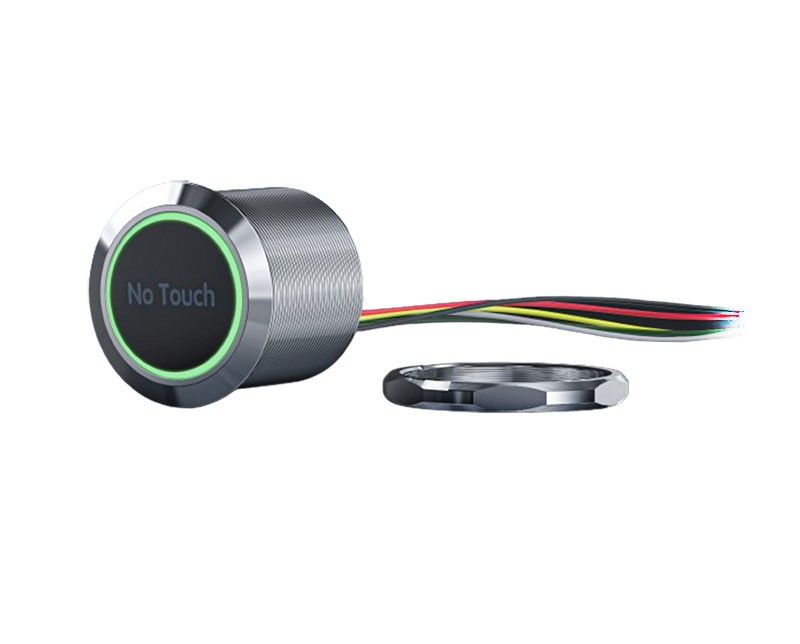

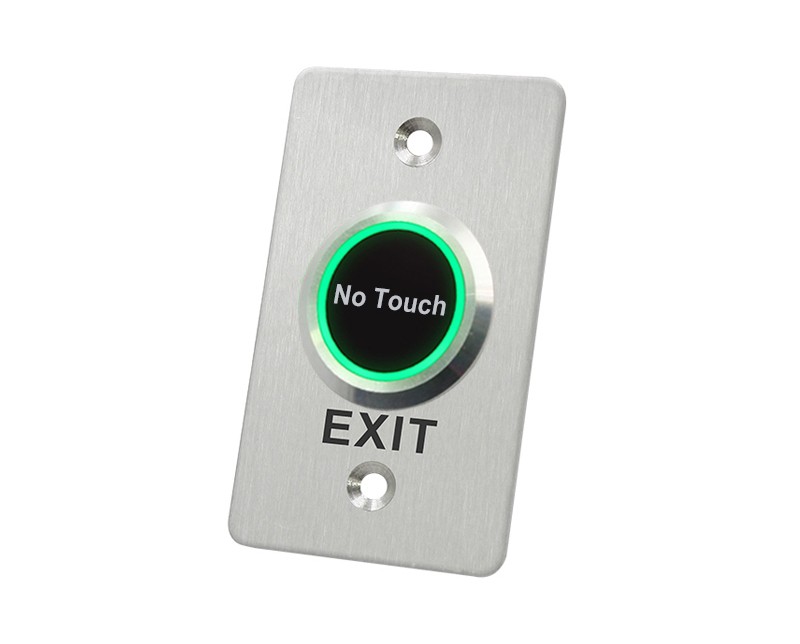

Active Green LED

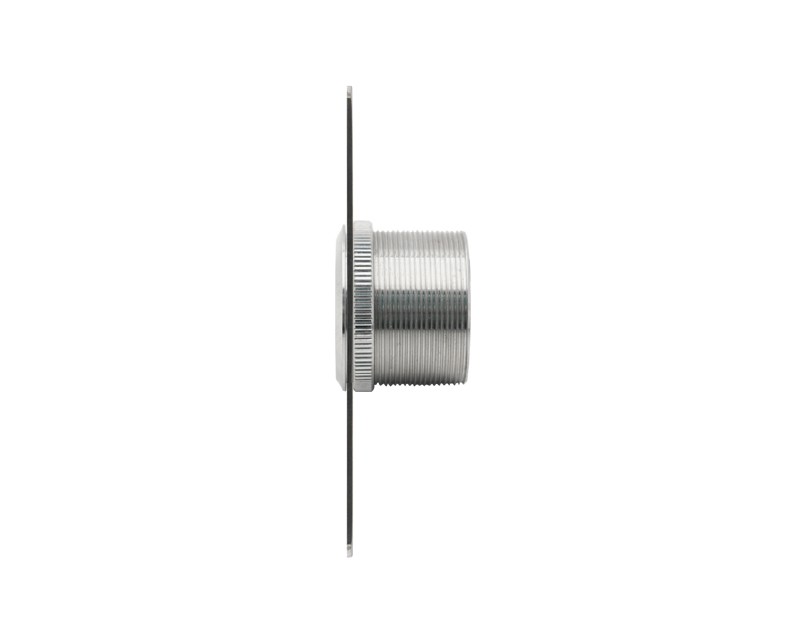

Multi-Angle View

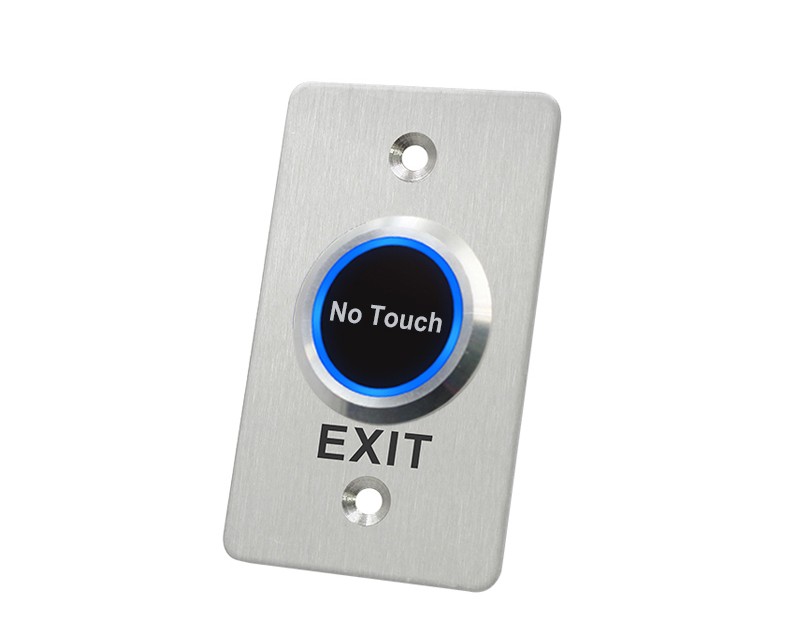

Infrared Sensor Exit Button

MODELZDBT-701P

Facebook Twitter InLink instagram Youtube Skype
  • Infrared Sensor No Touch Door Release Button

  • Output Contact: NO/NC/COM

  • Blue LED Lighting

  • Input: DC12V~24V

  • Induction distance 5-20cm.

  • Stainless Steel single gate plate

  • Suitable for all kinds of locks.

Infrared Sensor No Touch Door Release Button: Infrared Sensor, No Touch exit Button, Stainless steel Panel with Elegant Style. Tested to 500000 Cycles. NO\NC\COM output contact, User can choose N.O, N.C, COM terminals to get access to system application accordint to using station, Suitable for all kinds of Locks.The Best Choice for  Access Control.


- Outdoor waterproof function can be customized.

- Infrared Sensor No touch, Optical / Infrared Technology
- 1.8mm thick Durable stainless steel plate

- Laser texture, no discolor
- Output Contact: NO/NC/COM
- Mechanical Life: 500000 tested
- Suitable for Gate/Door/Exit/Automation control

  • Input Volt.: DC12V-24V

  • Output Contact: NO/NC/COM

  • No touch / Touch free Exit Sensor (Diffused Detection)

  • Material: 1.8mm thick 304 Stainless steel Plate

  • Detection range: 5~20 cm

  • Operating temp: 10~+55℃(14-131F)

  • Operating Humidity: 0-95% (non- condensing)

  • LED Indicator: Blue LED (Standby); Green LED (Active)

  • Product size: 86Lx50W(mm), Weight: 0.18kg


Package Contents:

  • Standard Exporting Packing Box
