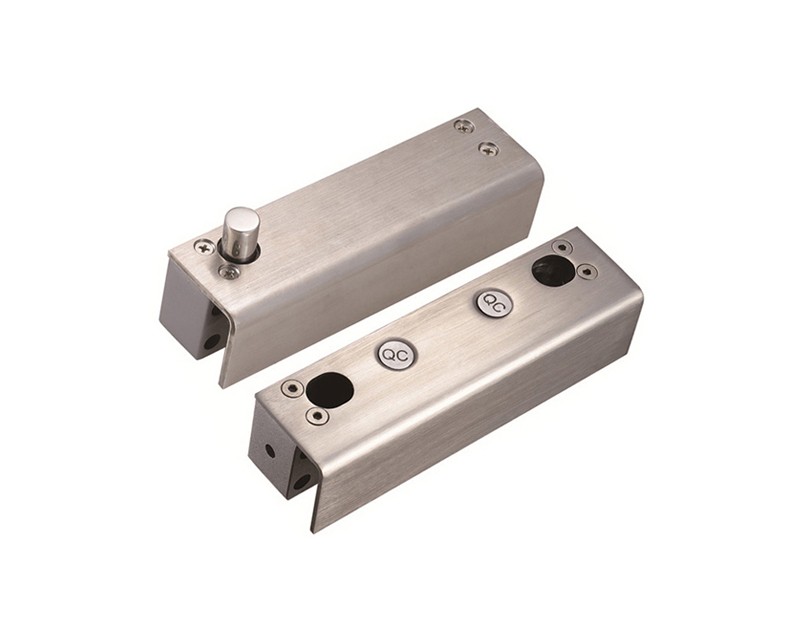

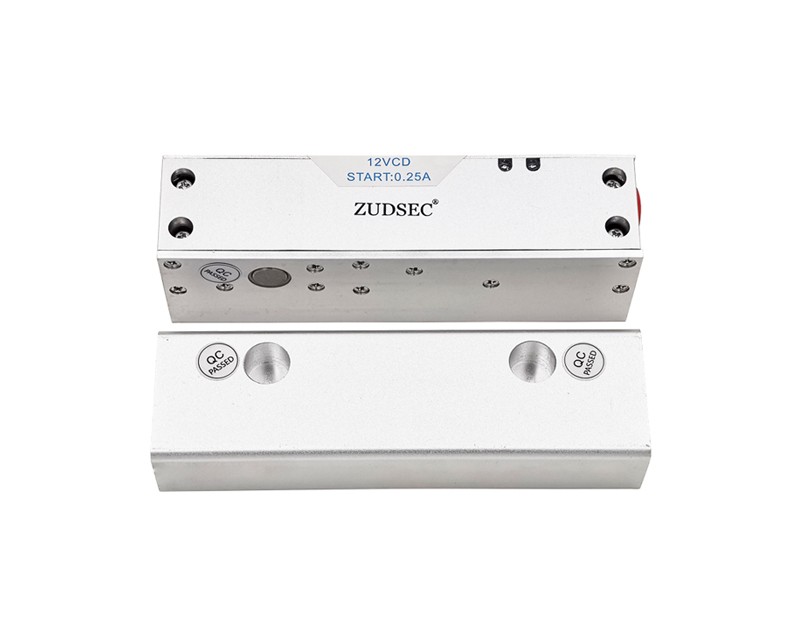

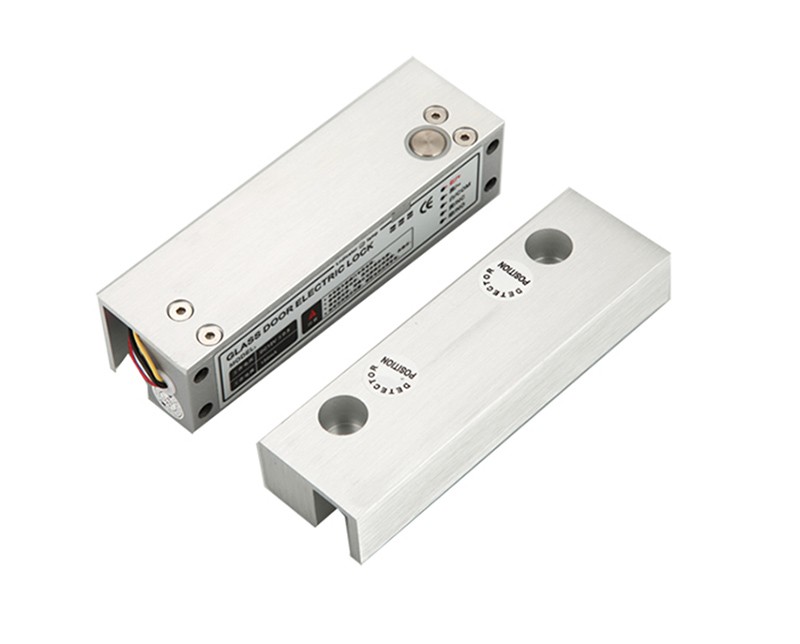

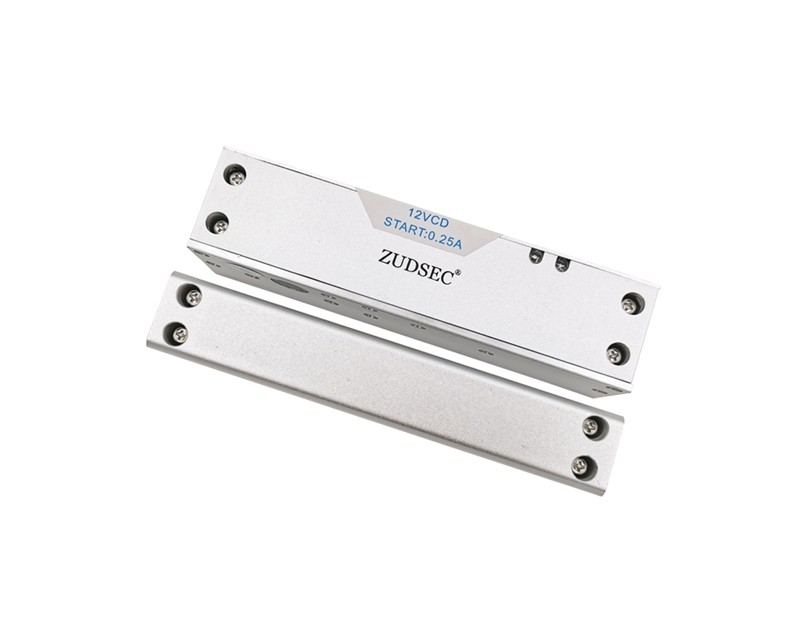

Electric Bolt for Full Frameless Glass Door: Adopt high quality materials, stable & reliable, DC12V, ZDL-5818 is specially designed for frameles glass doors (without up & down frame), used by matching a bracket, and is convenient to match with automatic door. Time delay setting can keep the bolt open/close status in a certian period. So when it connects to access control, it can make some employee enter or exit the door simultaneously. It also can check the position of lock and door.
- Optional Lock model:
* ZDL-5818S: Stailess steel, Power-off to open
Dimension: L148xW43xH39(mm), Packing size:18.5X10.5X6CM,1.3KG
* ZDL-5818S: Zinc alloy, Small size.
Dimension: L148xW43xH39(mm)
- it's specially used for full frameless glass door (without up
& down frame)
- Safety mode: Power-on to
lock;
- Time delay: 0 Second, 2.5 Seconds, 5 seconds optional(Adjustable delay).
- Signal feedback: With NO /NC output(Connect NC, fail safe; Connect NO, fail secure).
-
Signal output: Door state, Lock state.
