Wired Magnetic Door Sensor: ZDD-420M

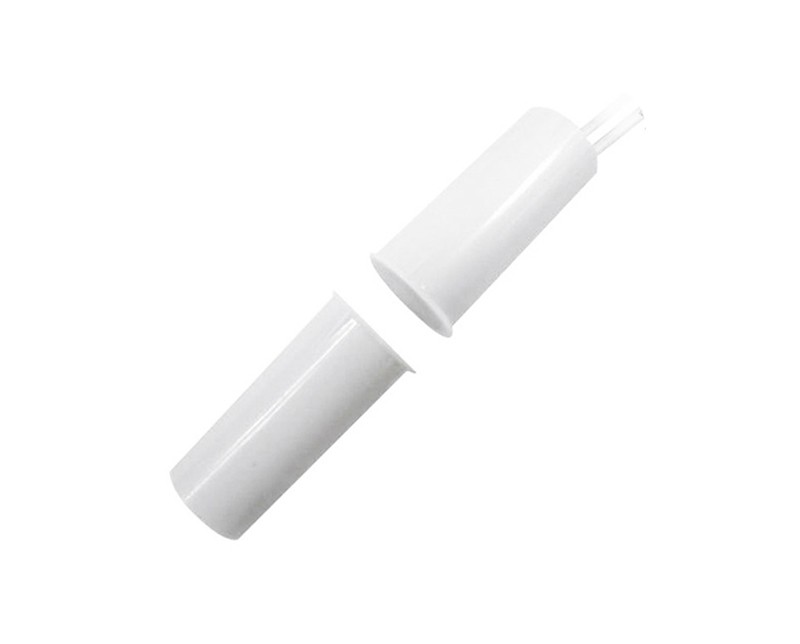

Wired Magnetic Door Sensor -Recessed Mount

MODELZDD-420M

Facebook Twitter InLink instagram Youtube Skype
  • Detecting door gap by opening

  • Operating distance(Gap): 20~30mm

  • Connecting mode: N.C / Wire (N.O.& changeover  available)

  • Color: White/Brown

  • Cable length: 350mm

  • Installation: embedment installing

Wired Magnetic Door Sensor -Recessed Mount: Detecting door gap by opening, Be used to detect door, window, or drawer if it is opened or moved. It is widely used for monitoring and security system, with high reliability, small size, easy installation and operation and strong flexibility.

Φ9.5mm diameter super miniature stubby switch
- Press fit mini contact
- 43cm side leads with AWG #22
- Color : white, brown
- Connecting mode: N.C. (N.O.& changeover  available)
- Installation: embedment installing, suitablel for wooden dor

  • Operating distance(Gap):  20~30mm

  • Housing Material:  ABS

  • Color: white /brown

  • Connecting mode: N.C / Wire (N.O.& changeover  available)

  • Installation: embedment installing

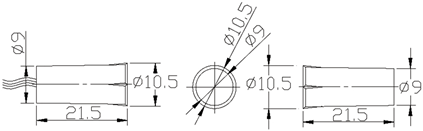

  • Product Size:    Φ0.5*21.5mm
         Packing:       20sets / PE(Inner);  1600sets / carton( Outer)
         Gross Weight: 17.0KG



Wired Magnetic Door Sensor -Recessed Mount(图1)


Package Contents:

  • Standard Exporting Packing Box
