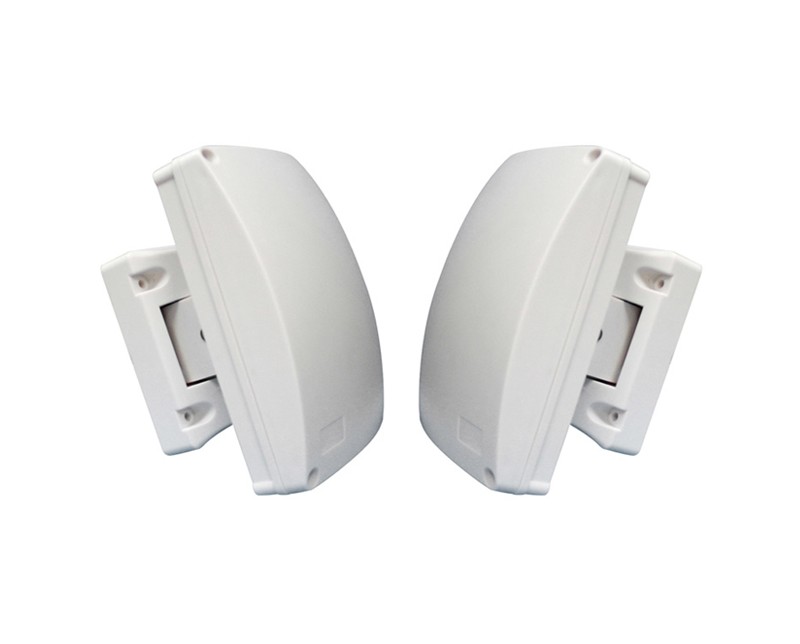

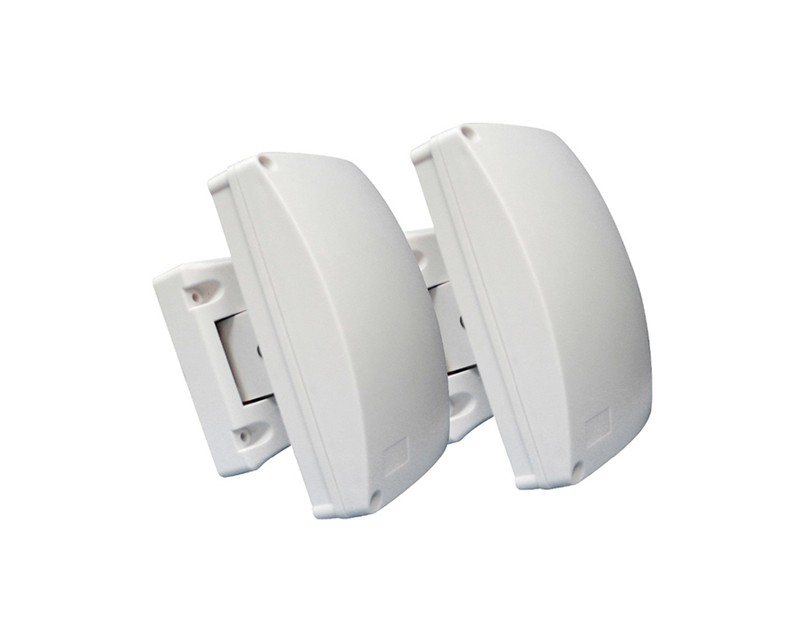

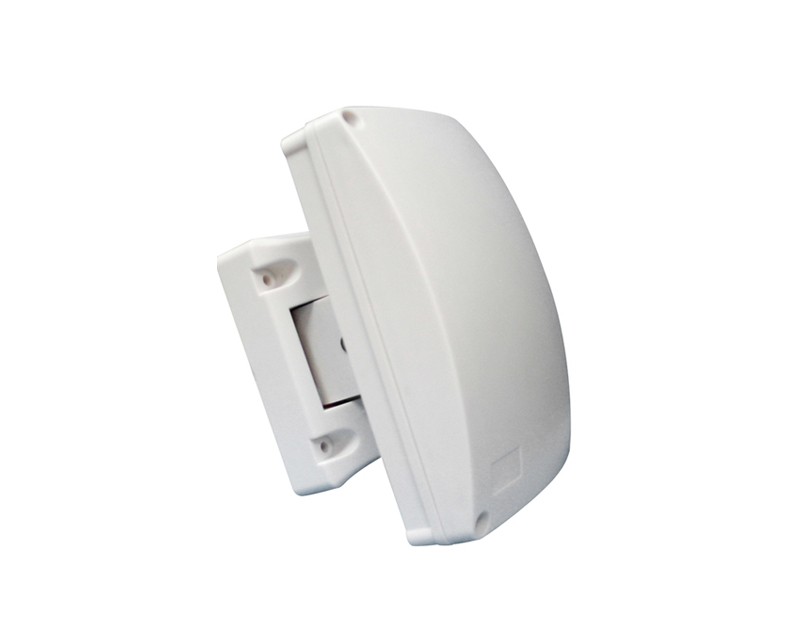

Perimeter Intrusion Detecting Microwave Barrier: Making Alarm under the following status: the intrusion people walking, run or climb with speed between 0.1~10m/s. It provides ideal cost-effective solutions for medium-range applications such as perimeter protection of buildings, fences, warehouses, factories, parking lots, gardens, walls, etc, especially inner balcony to substitute metal structure. It will alarm at once and dial the pre-set alarm numbers when the emitting bundle is shut off by the object.
- Detect human intruders walking, running or crawling.
- Detetion Distance: 150M
- Center Point 1.8m, width 5m, snow 0.5m, grass 0.3m,
- Power input:10.2~30 VDC

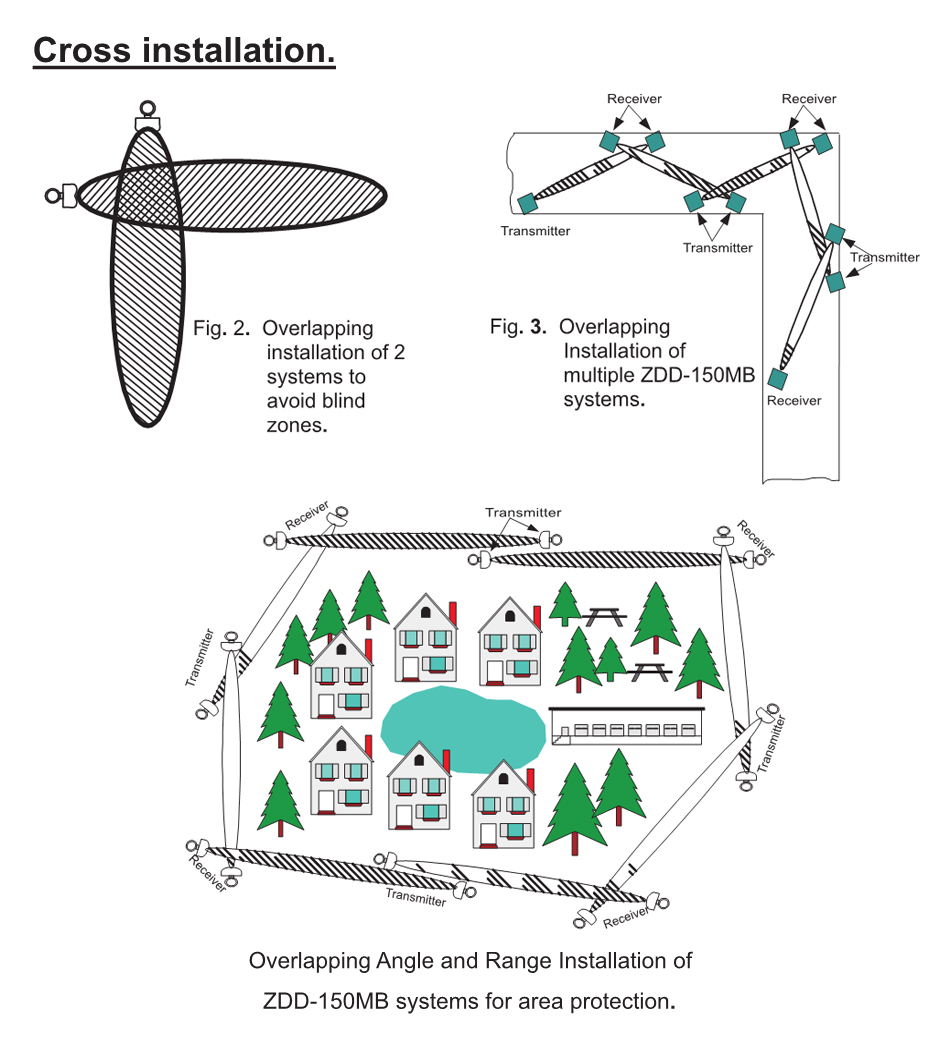

- Quick and easy installation on pole, fence or wall.
- No maintenance required.
- High RFI & EMI immunity
- Power failure protection and backup
- Multi-level sensitivity adjustment
- Digital signal analysis, avoid false alarm.
- Making Alarm under the following status: the intrusion people walking, run or climb with speed between 0.1~10m/s.
| Model | ZDD-150MB |
| MW frequency | 10.525GHz |
| Detection distance | 150m |
| Central location width | 5m |
| Central location height | 2.5m |
| Grass width | 0.3m |
| Snow width | 0.5m |
| Power input | 12~18 VDC |
| Working current | Transmitter:25~30mA,12VDC |
| Receiver:30~35mA,12VDC |
| Alarm Relay capacity | (N.C.)50mA,20VDC |
| Alarm time | ≤3s |
| Tamper switch capacity | (N.C.)0.1A,20VDC |
| Max emitting power | 35mW(common);50mW(Max) |
| Detection speed | 0.1~10m/s |
| Alarm output | ≥3s |
| Temperature | -40ºC~+65ºC |
| Humidity | Max 98% |
| Dimension | 158×113×46mm |
| Water-proof design | Built-in water-proof equipment, anti-rain/snow 30mm/h |
Packing Size: 38.5*16.5*12CM, Gross Weight: 3KG/pair
