Mini Card Reader-for Lift/Elevator: ZDR-12
Multi-Angle View
Multi-Angle View

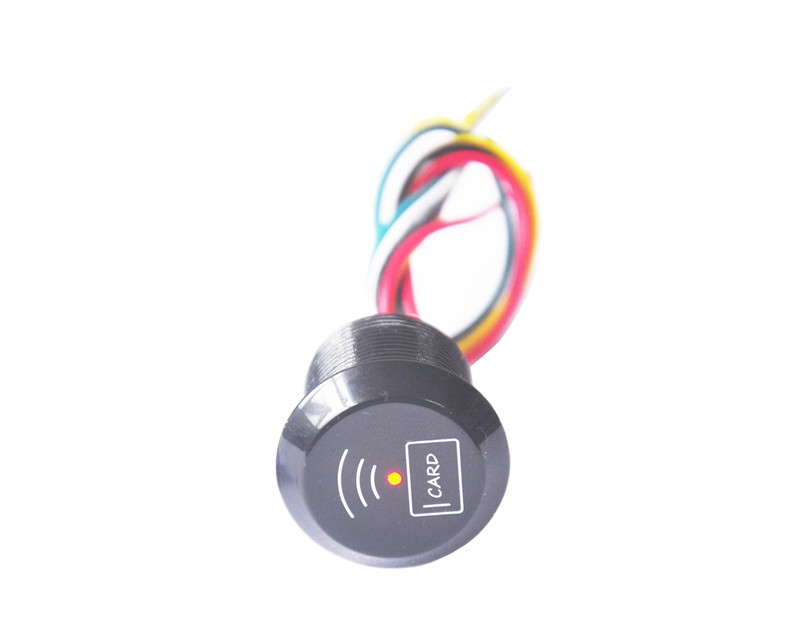

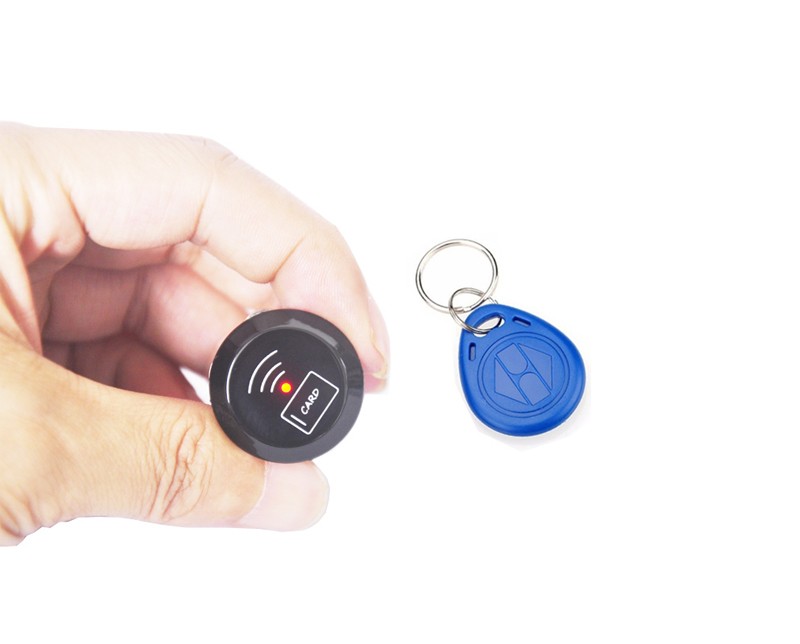

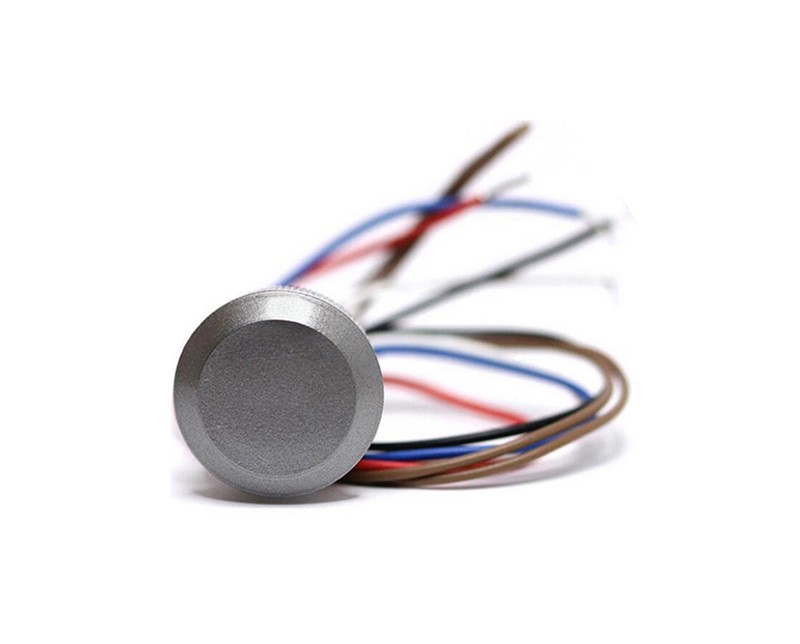

Mini Card Reader -for Lift/Elevator

MODELZDR-12

Facebook Twitter InLink instagram Youtube Skype
  • Mini Card Reader for Lift/Elevator

  • Anti-vandal case

  • Reading Mode: 125KHz EM-ID Card; or 13.56 MHz Mifare-ID optional

  • Proximity Range: 3-15cm

  • Output Format: Wiegand 26

  • Response Speed: Less than 0.2 second;

  • Proximity Time Distance: Less than 0.5 seconds


Mini Card Reader: Anti-vandal case ,RFID type ID access control card reader, Reading Distance is about 3-15CM; Support Wiegand 26bits. It's widely use for Lift/Elevator.

- Support UEM 4100 ID Card or compatible with it( 64bits, Manchester Code) or Mifare 1 Card (13.56 MHz Frequency)

Anti-vandal case

- Built-in Antenna
- Built-in LED (Double Color LED)
- Built-in Loud Speaker (Buzzer)
- 100 Meters Communication Distance



  • Reading Mode: 125KHz EM-ID Card; or 13.56 MHz Mifare-ID optional

  • Proximity Range: 3-15cm

  • Output Format: Wiegand 26

  • Response Speed: Less than 0.2 second; Proximity Time Distance: Less than 0.5 seconds :

  • Working Voltage: DC12V; Working Current: 70mA

  • Color: Dark Grey Color

  • Temperature: -25℃ to 75℃; Humidity: 10%-90%

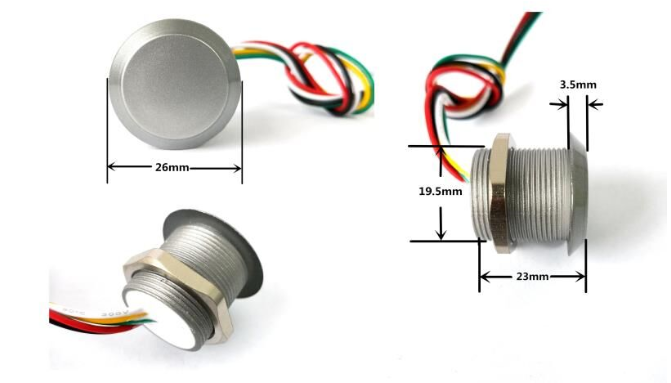

  • Product size:   Φ25*22(mm)

  • Packing size: 5X5X5 cm; Weight: 0.5kgs



Mini Card Reader -for Lift/Elevator(图1)

Package Contents:

  • Standard Exporting Packing Box
