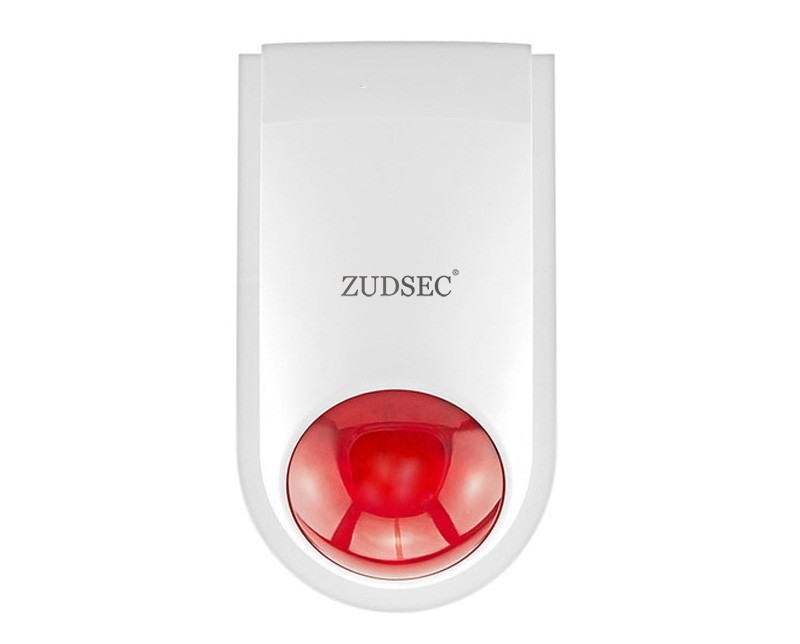

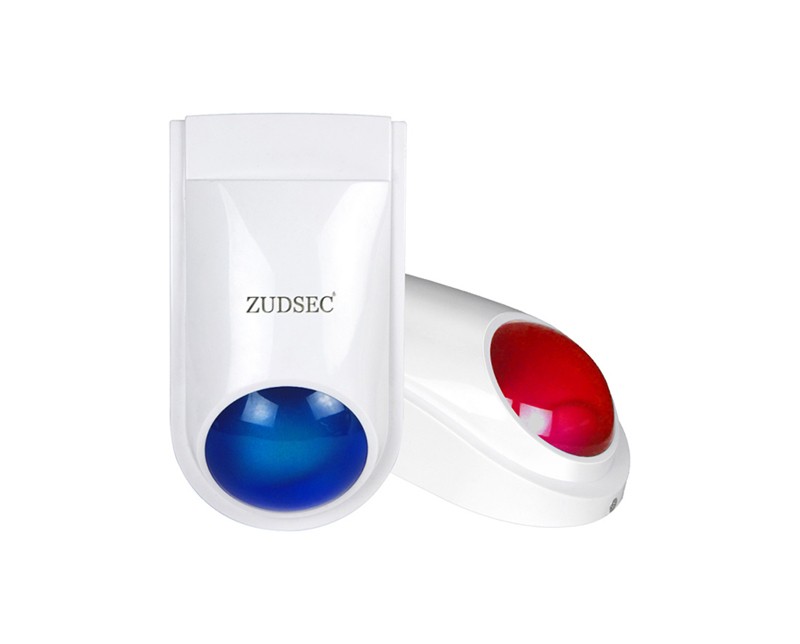

Outdoor Flash Siren: ZDSH-112
Lens Color: Blue/Red

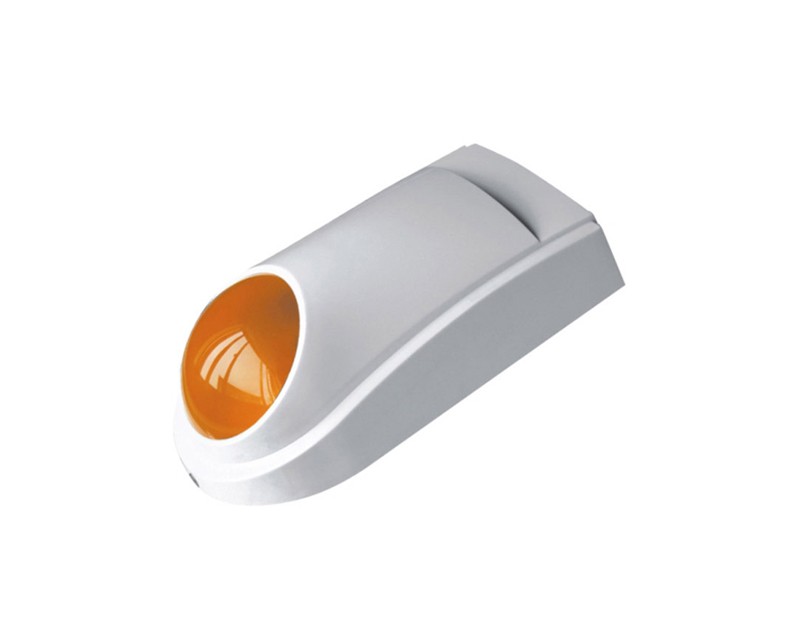

Lens Color: Orange

Outdoor/Indoor Siren With Light

MODELZDSH-112

Facebook Twitter InLink instagram Youtube Skype
  • Waterproof design, ABS Housing

  • Internal/External Tamper trigger selectable

  • Related Voltage: 12VDC

  • 4 kinds of sounder time selection

  • Lens: blue, red, orange colors selectable

Outdoor/Indoor Siren With Light:  115dB, Waterproof desgin, ABS Housing . It connects with control panel and gives off strong strobe light with high siren volume to scare away the intruders once the detector is triggered.


- Wired/ Wireless output optional

- Waterproof design, ABS Housing
- Internal/External Tamper trigger selectable
- SAB function available
- 4 kinds of sounder time selection
- Piercing siren sound with high-visibility xenon strobe flashes
- Separated strobes providing both negative and positive inputs
- Red and green LED indicate easy status confirmation
- With/without backup battery optional
- Lens: blue, red, orange colors selectable


  • Siren Volume: 115dB±3dB

  • Operating voltage: DC9~15V; Rated voltage: 12V

  • Current Consumption: 380mA@DC12V

  • Alarm Timer: 5D, 3M, 15M, Continous

  • Flash frequency: >60 times/minute

  • Material: ABS Housing with UV resistance

  • IP Rating: IP65

  • Backup Battery: 7.2V, 500mA Ni-MH rechargeable battery(Optional Battery Backup model)

  • Wireless receiver frequency: 315MHZ or 433MHZ(Optional wireless model)

  • Operating Temperature Range: -10℃ to +50℃

  • Dimensions: 210X130X78mm ; Packing size: 250 X 120 X 80MM;
    Gross Weight: 0.4.kg(without battery) , 0.7kg with battery.


Package Contents:

  • Standard Exporting Packing Box
