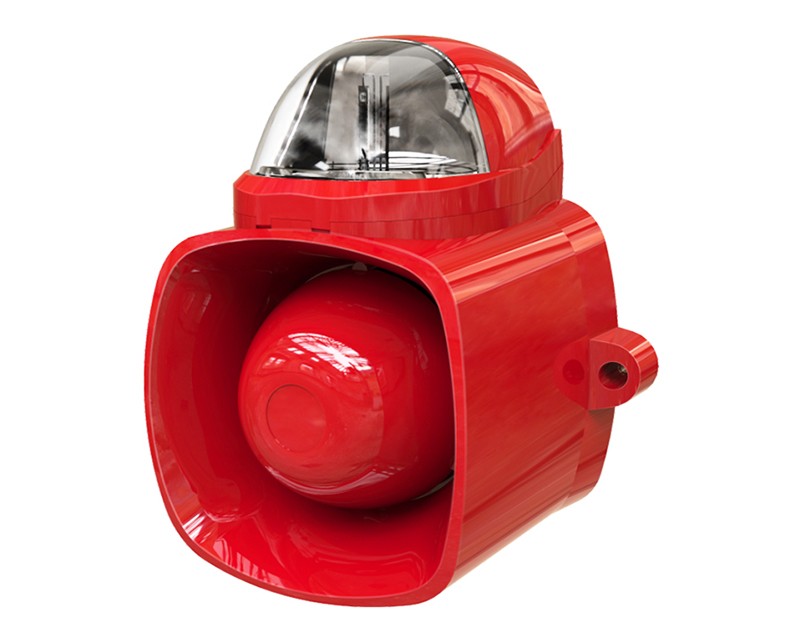

Outdoor Strobe Siren: ZDSH-128
Optional Body Color: Red Color
Inner Structure
Super-Powerful Strobe light:  ZDSH-126F

Outdoor Strobe Siren with Audio Input

MODELZDSH-128

Facebook Twitter InLink instagram Youtube Skype
  • Self-Contained Siren With Strobe Light

  • 120dB Warble-tone Siren

  • Audio Input For Broadcasting Messages Or Audio Playback

  • IP65 Weatherproof, White with Red Light

  • Len Color: red, blue, clear, amber

  • Supports 32 different tones

Outdoor Strobe Siren with Audio Input:  Self-Contained Siren With Strobe Light, 120dB Warble-tone Siren, Audio Input For Broadcasting Messages Or Audio Playback, IP65 Weatherproof.  ZDSH-128 is multi-purpose devices: siren + speaker + strobe. It can serve as a regular siren, but also has an audio input that can be used to playback audio or broadcast messages. It can be surface installed or to a standard single gang, double gang or C-type back box.


Outdoor use with durable poly carbon housing. It has a built-in dynamic speaker to generate loud sound. The combo version has a xenon flash light on the top. An tamper switch is equipped to prevent any illegal removal. Or low current design for both speaker and strobe light, which can be used in series for a fire system, access control system or any other systems which use more than one sounder and beacon. And the sounder has 32 different tones.


It's widely used for all kinds of burglar, fire, access control, and CCTV system application, where reliable siren is required, like Gas stations, Laundromats, Jeweley stores, Secret rooms, pawnshops, real estate office, telecom base station, bus, and train station, airport, museum and other publice places.

- 120dB Warble-tone siren, 25W Speaker for audio or broadcast system input (broadcast will interrupt the siren)

- Bright LED strobe light, or Bright Red xenon tube strobe light optional, Audio input for broadcasting messages or audio playback

- DC12V Works on external power source, Low current draw

- Built-in tamper output, IP65 weatherproof for outdoor/indoor use

- Mount directly to wall or to most common back boxes

- Built-in tamper alarm output

- Strobe can be triggered separate from siren
- Strobe Len Color available in red, blue, clear, amber

- Easy installation



ModelZDSH-128
TypeSiren/LED
Operating   Voltage12VDC
Current Draw   (max.) - LED50mA@12VDC
Current Draw   (max.) - Siren1000mA(20W)
Siren Volume120dB
Speaker   Rating25W Peak
Strobe Flash Rate60 Times /Min
Flash Memory2M
Tamper Output100mA@30 VAC/VDC
IP RatingWeatherproof IP65
Operating   Humidity0~95%
Operating   temperature-4°~131° F (-20°~55°   C)
Housing   materialWhite polycarbonate   plastic
Lens ColorClear/ Red/ Blue/   Amber
Boldy ColorWhite/ Grey/ Red
Dimensions178x125x115 mm)

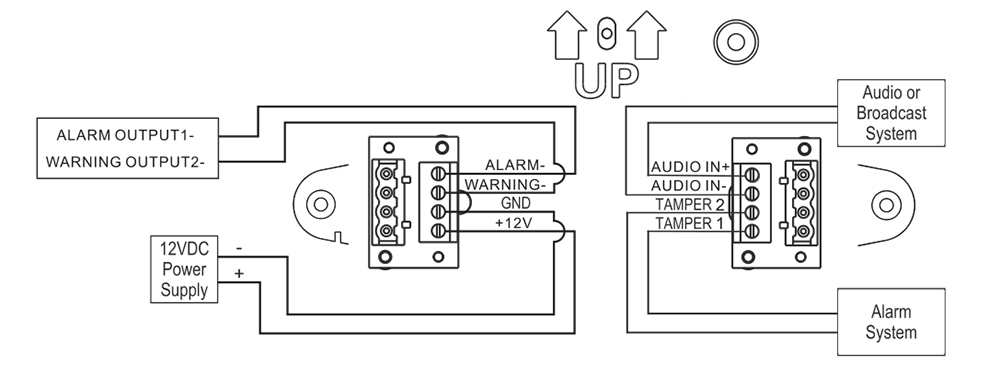

- Wiring Diagram:


Outdoor Strobe Siren with Audio Input(图1)


Package Contents:

  • Standard Exporting Packing Box
