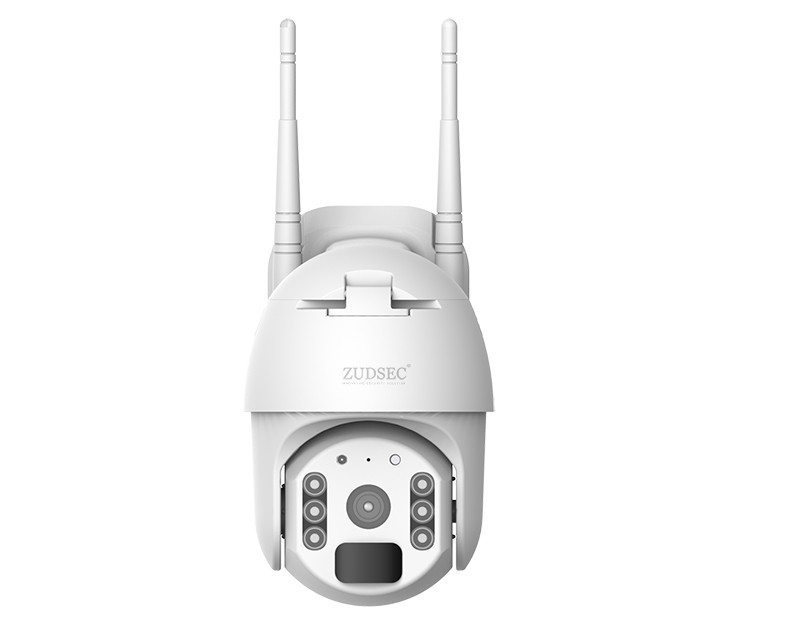

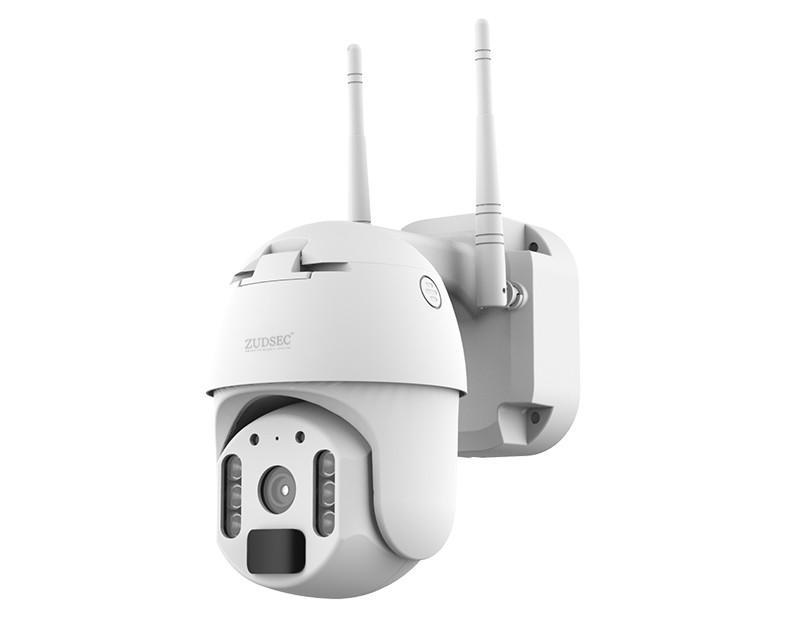

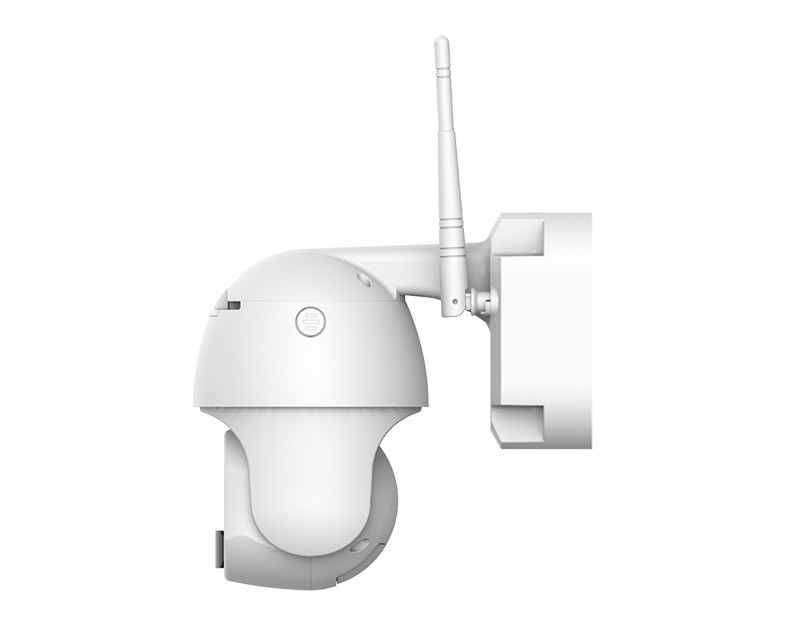

WIFI PTZ Outdoor Solar camera: ZDC-Q7
Multi-Angle View
Multi-Angle View
Multi-Angle View

4G/WIFI PTZ Outdoor Solar camera

MODELZDC-Q7-4G

Facebook Twitter InLink instagram Youtube Skype
  • 2.0MP outdoor WIFI solar camera

  • 4G GSM Network

  • No need for wire, solar power generation

  • Support PIR motion detection, alarm push

  • Solar panels power: 10W

  • Support Mobile & PIR detection wake up

  • Two-way intercom with noise cancellation

  • Support SD card storage up to 128G

  • IP67 waterproof grade


WIFI PTZ Outdoor Solar camera:4G GSM Network,2.0MP high resolution, Powerful solar panel battery, 10W Solar panel, IP67 Weatherproof, Wide Angle, Built-in Siren, Two-way comunication, supports up to 128GB memory card. Suitable for yards, fish ponds, orchards, farms, mines, construction sites and other environments that are inconvenient to connect to electricity and wiring.


- WiFi Solar Camerm: ZDC-Q7-4G(WiFi without 4G)

- WiFi PTZ Camerm:   ZDC-Q7 (WiFi without Solar)



4G/WIFI PTZ Outdoor Solar camera(图1)

- 4G GSM Network, Built-in 2 MP, 6mm high-definition lens with a maximum viewing angle of 80 degrees

- Built-in six 18650 high-capacity lithium batteries, wake up normally for 15 minutes every day, can be used for 9 - 18 months

- Comes with Micro SD card slot, supports up to 128GB memory card

- No need for wire, solar power generation and built-in lithium battery power supply

- HiSilicon Hi3518E chip, Resolution 1920×1080

- Ultra-low power consumption full HD battery camera, standby current 250uA

- With LiteOS operating system, fast wake-up and fast alarm push

- Built-in high-fidelity speaker and high-definition microphone, support two-way voice intercom, with echo cancellation function

- Equipped with high-power 850nm infrared lamp and white light lamp, the effective distance of night vision can reach 20 meters

- It can be used easily without network environment, built-in full Netcom 4G module, keep the device online at any time

- Built-in PIR detector, which can automatically turn on white light illumination according to human body induction at night

- Support device online push and PIR detection push and manage push messages

- Support cloud recording, cloud on-demand, device sharing (unlimited friends)

- Suitable for yards, fish ponds, orchards, farms, mines, construction sites and other environments that are inconvenient to connect to electricity and wiring.



ModelZDC-Q7
VideoChipHi3518EV300
Sensor1/3”Full HD CMOS
Resolution1920×1080(MP)
Operate SystemLite OS
Len6mm
Infrade Light850nm infrared light, effective distance of 20 meters
White Light2W, effective distance of 8 meters
IlluminanceColor mode 1 Lux, night vision mode 0 Lux
Signal to noise ratio≥52dB
Video processingAutomatic gain, automatic white balance, automatic backlight   compensation, 3D digital noise reduction
Audio InputBuilt-in -38dB noise reduction microphone
Audio OutputBuilt-in 8 ohm 2W high-fidelity speaker
WifiNA
4GLTE FDD/LTE TDD/WCDMA/TD-SCDMA
OtherPIR Detection Range0 – 10 meters
PIR Detection Angle120°
Storage WayMicro SD, Cloud storage
Wake Up WayPIR wake up, Remote wake up from mobile phone
Standby Time15S,30S,60S (Optional)
Pairing ModeAP mode, Scan QR code
Pan TiltHorizontal 355°, vertical 90°
SD CardMax 128GB
Solar Panel10W
Battery Capacity6* 18650 lithium batteries
Power SupplySolar panel + built-in lithium   battery power supply (optional external power adapter)
ApplicationUBOX For Android&iOS
Working Temperature-10℃ ~+50℃
Working Humidity≤80%RH
Size210mm×180mm×120mm
Weight830g(solar panel has not   included )



* Packing Size:  29.8*24.3*15.2CM,  Weight: 1.8KG.



Package Contents:

  • Standard Exporting Packing Box
