TCP/IP Apartment & Villa Intercom System -POE Solution: 8" TFT Indoor monitor with IPS1280*800 high resolution, 2MP HD smart IR outdoor waterproof camera,POE power supply for Easy installation,Visitor calling, Video intercom, Monitoring, and Electric lock-control function. It can be widely used in apartments, villas, hotels and offices etc.
- Model list:
* ZDVP-M08NP: 8" monitor with built-in wifi module & NVR function.
* ZDVP-M07P: 7" monitor without built-in wifi module & NVR function.
* ZDVP-OC02: IP video intercom panel for Villa Use(1 family)
* ZDVP-OC03: IP video intercom panel for for multi-family (Support max. 9999 family)

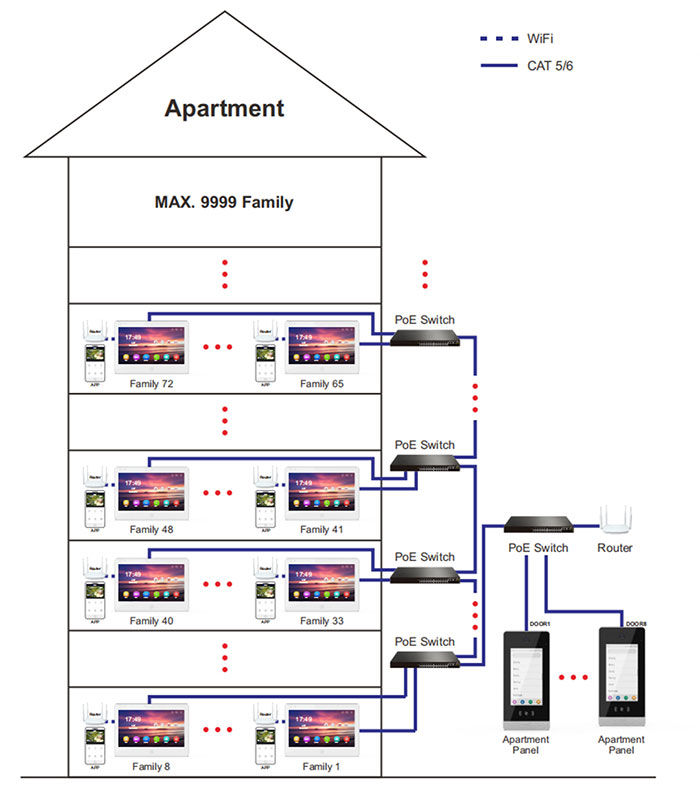

- System Wiring Diagram:


- Indoor Monitor: ZDVP-M08NP
Operation system:Embedded linux operation system
Display resolution:8"-IPS1280*800
Operation method:8" touch screen
Audio intercom mode:Full duplex
Wire network:10/100 Mbps adaptive Ethernet
WiFi:2.4G&5G 802.11 a/b/g/n
Mobile APP:Smart Life (iOS, Android)
External Memory:Micro SD card, up to 128GB
Support pixels:
Main stream support Max 5MP 25FPS camera
Sub stream support Max 1MP 30FPS camera
Video compression standard:H.265 (default), H.264
Internal memory: Support
Motion detection:Support
Human Detection:Support
Video recording:Support
POE power supply|DC15V 0.8A|AC100-240V 50/60Hz (Optional)

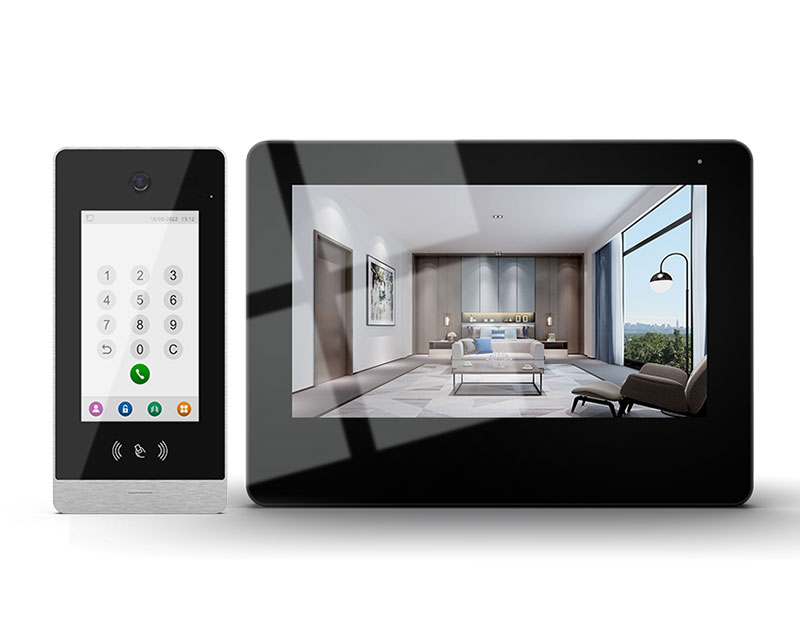

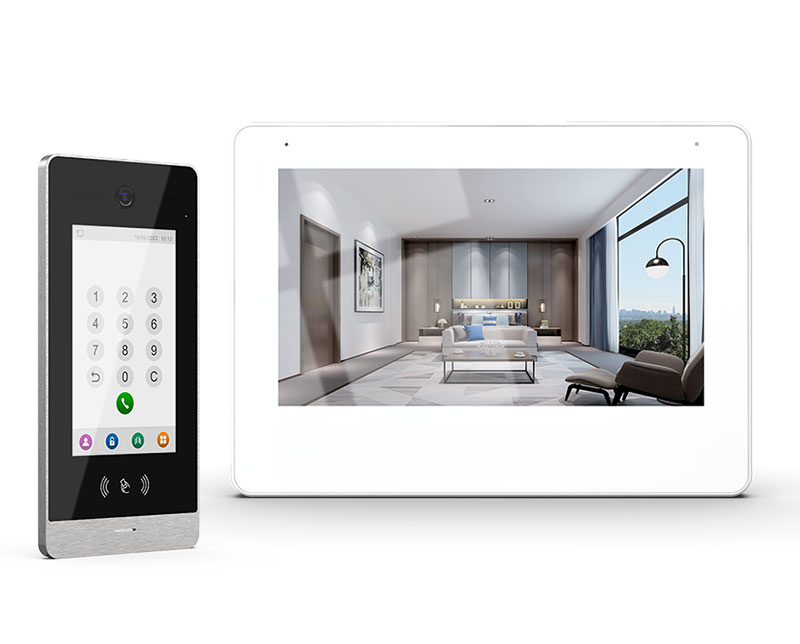

- Outdoor Camera: ZDVP-OC03
IP video intercom panel for multi-family
7" IPS HD touch screen 1024*600
2MP HD smart IR camera
Wide view angle 125°
Support H265 & H264
Support max. 9999 family
Touch calling directly
Full duplex communication
Support keypad & RFID unlock
Support EXIT button unlock
Support WG and alarm tamper
Support gate and door unlock
Metal body and tempered glass face panel
Protection: IP65 & IK07
Support flush mount
POE & DC15 0.8A power supply

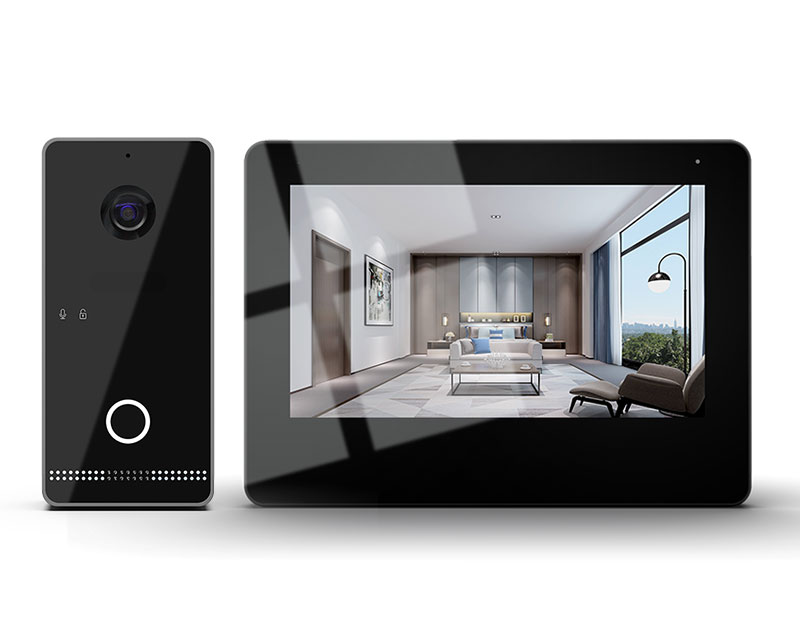

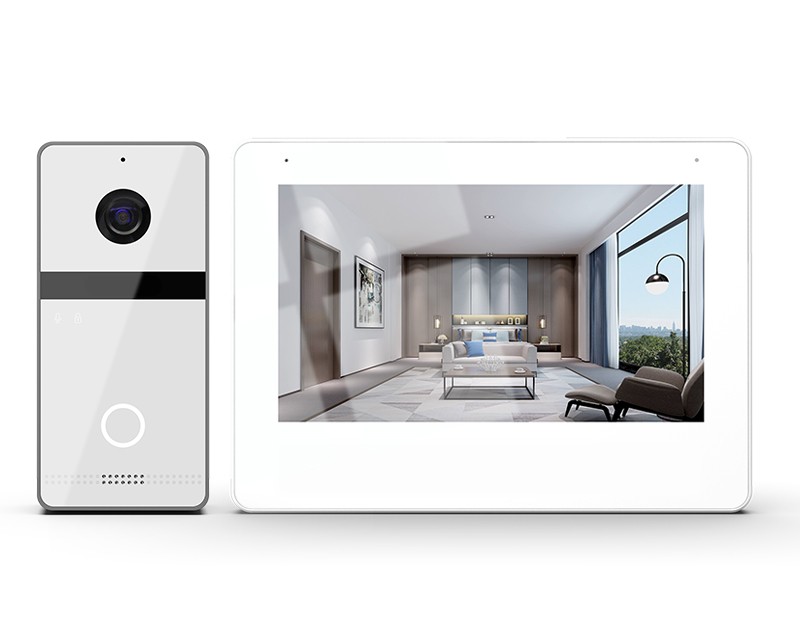

- Outdoor Camera: ZDVP-OC02
IP video intercom panel for Villa Use
2MP HD smart IR camera
Viewing angle 125°
Support web configuration
Touch call button for 1 family
Powered by a non-stop wired charge
Support gate and door two locks
Surface mounting
Support tamper alarm
Support door contact
Protection: IP65 & IK07
Standard PoE / DC15V 0.8A
