Wireless Smoke Detector: ZDD-312SW

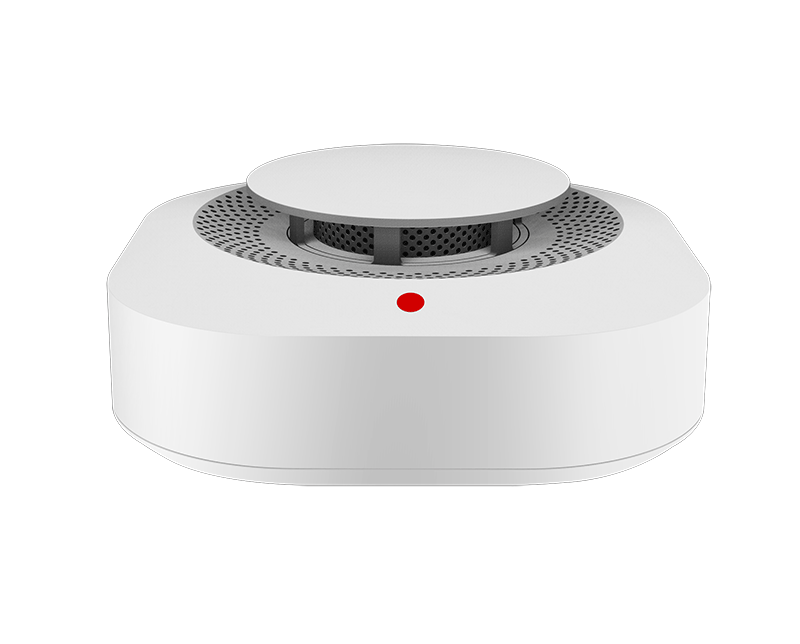

Multi-Angle View

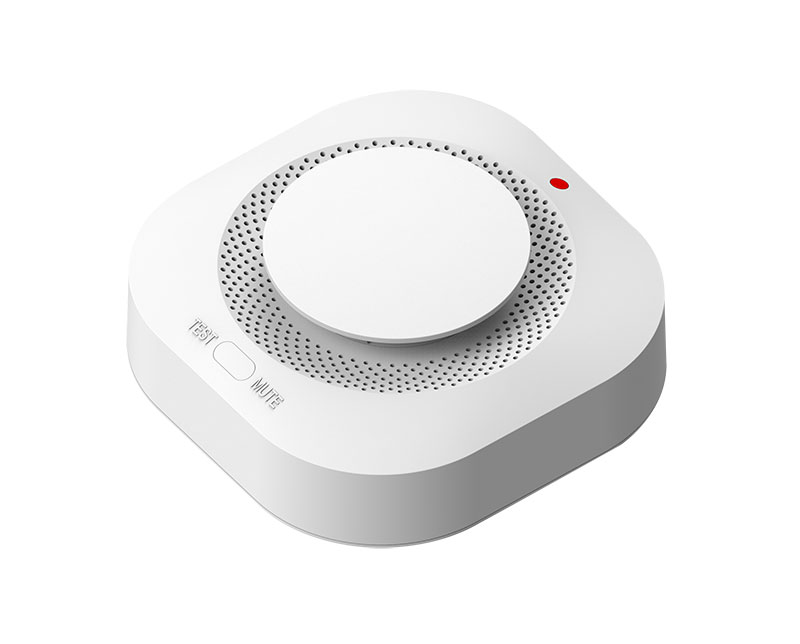

Multi-Angle View

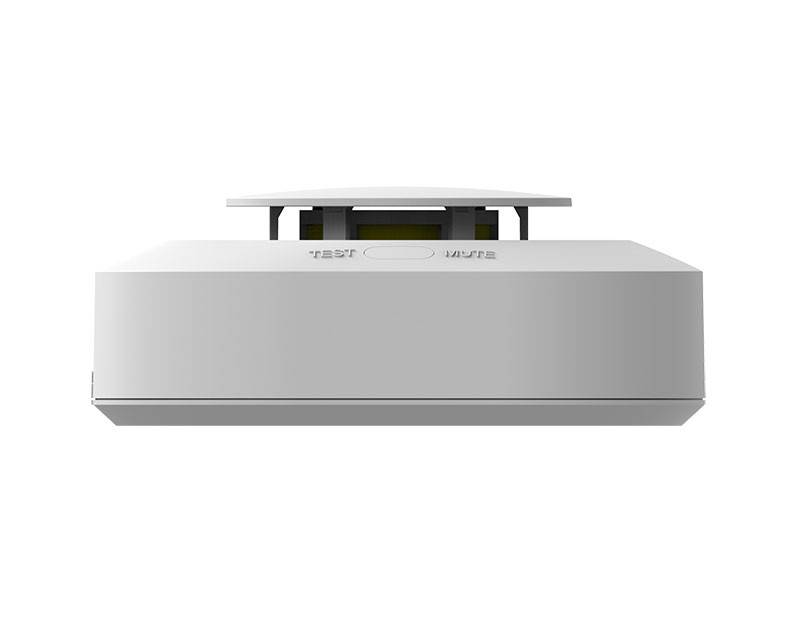

Multi-Angle View

Wireless Smoke Detector

MODELZDD-312SW

Facebook Twitter InLink instagram Youtube Skype
  • High sensitivity, Wireless use(DC9V Lithium battery)

  • 80 dB alarm sound with alarm indicator

  • Durable Sensor Head; Excellent smoke access

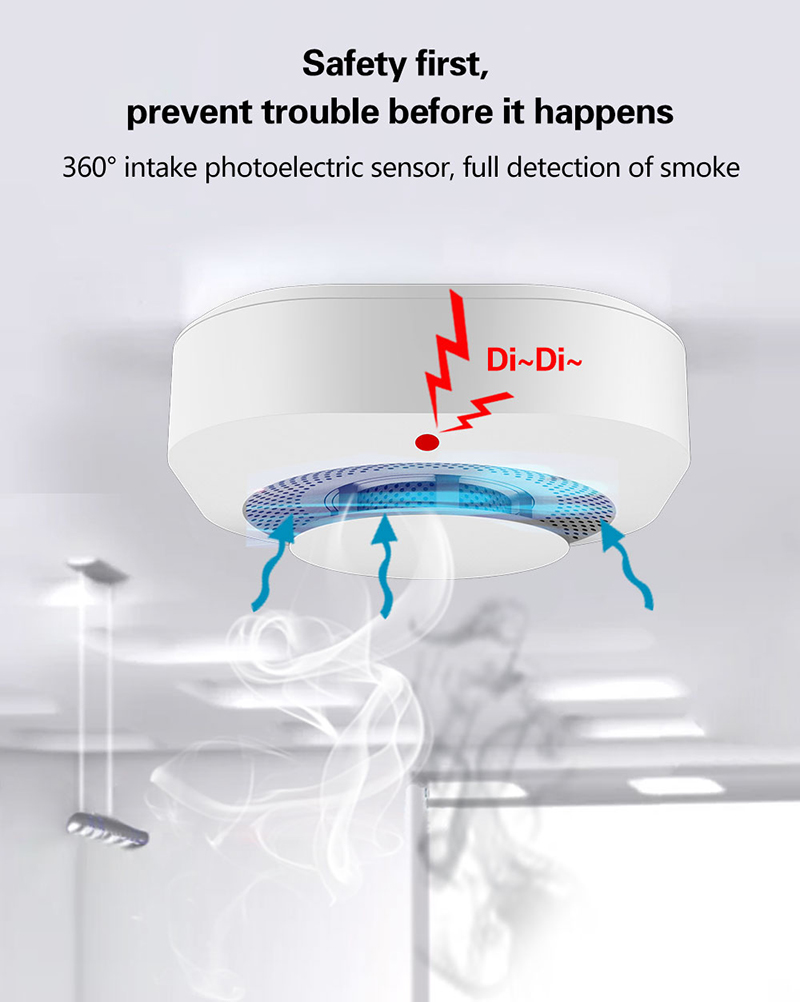

  • Photoelectric sensor

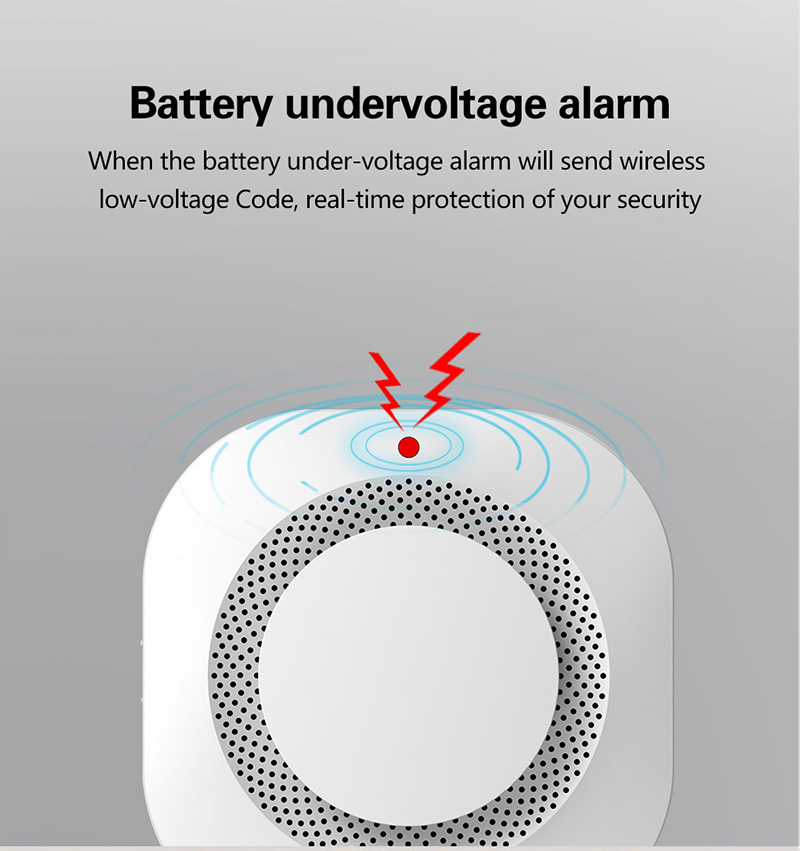

  • Low Battery Indication


Wireless Smoke Detector: Is a high-sensitivity photoelectric smoke detector for fast detection of slow, smoldering Smoke&Fire when Danger, Can be used independently to alarm, or can be used with the system to send the sign to the main panel. Self-detecting, no wrong report.  It is designed for a wide range of residential and commercial applications where reliable smoke detection is required. like: room, hall, kitchen, party, no smoking place, Hotel, Factory...etc

Achieving superior smoke detection sensitivity levels, our smoke detector provides early warning of developing fire. When smoke is detected, it issues both sound and transmitte alarms. It transmits supervisory reports to the wireless control panel or receiver at regular intervals - ensuring system integrity and functionality at all times.

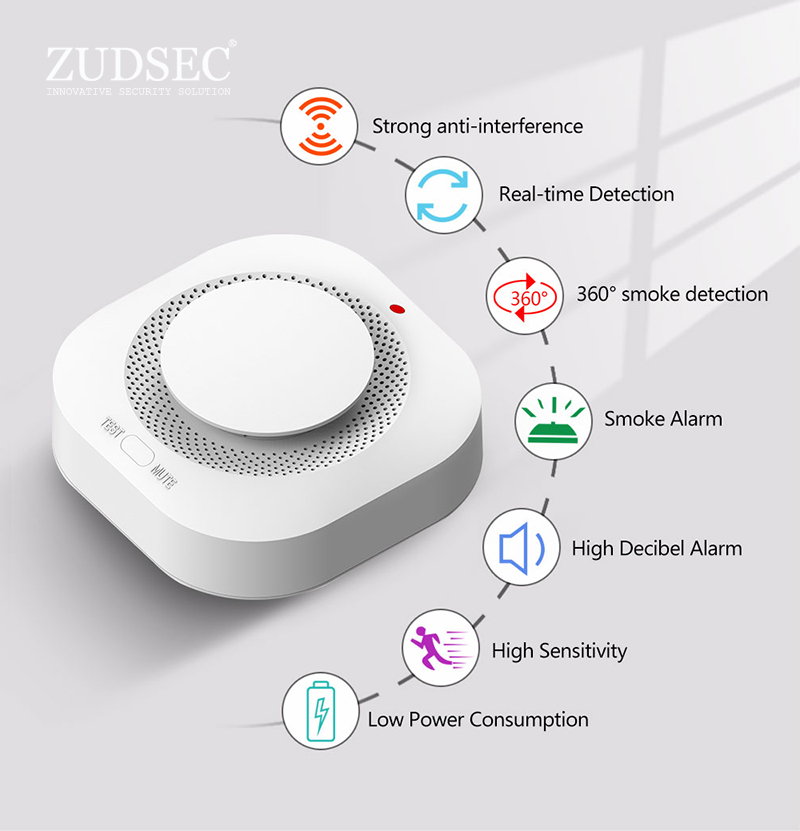

Wireless Smoke Detector(图1)

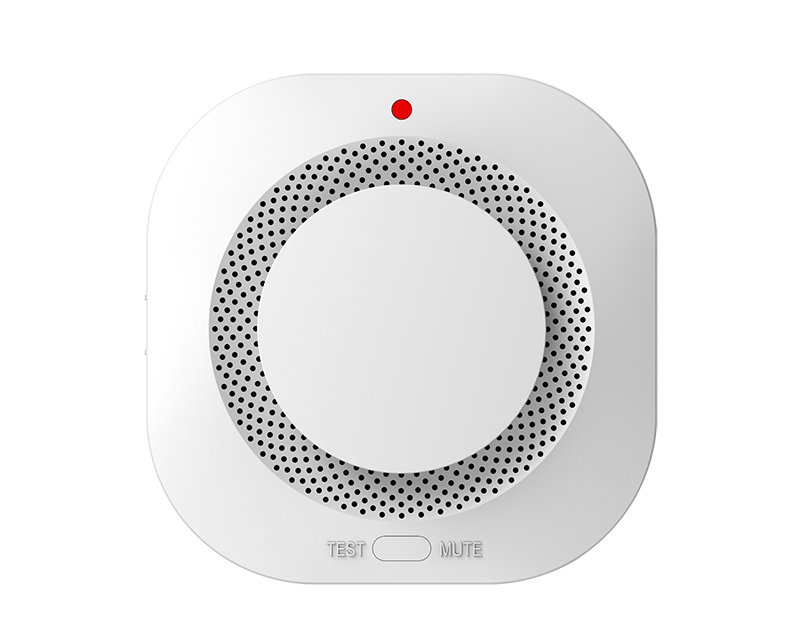

Wireless Smoke Detector(图1)

Wireless Smoke Detector(图2)Wireless Smoke Detector(图4)

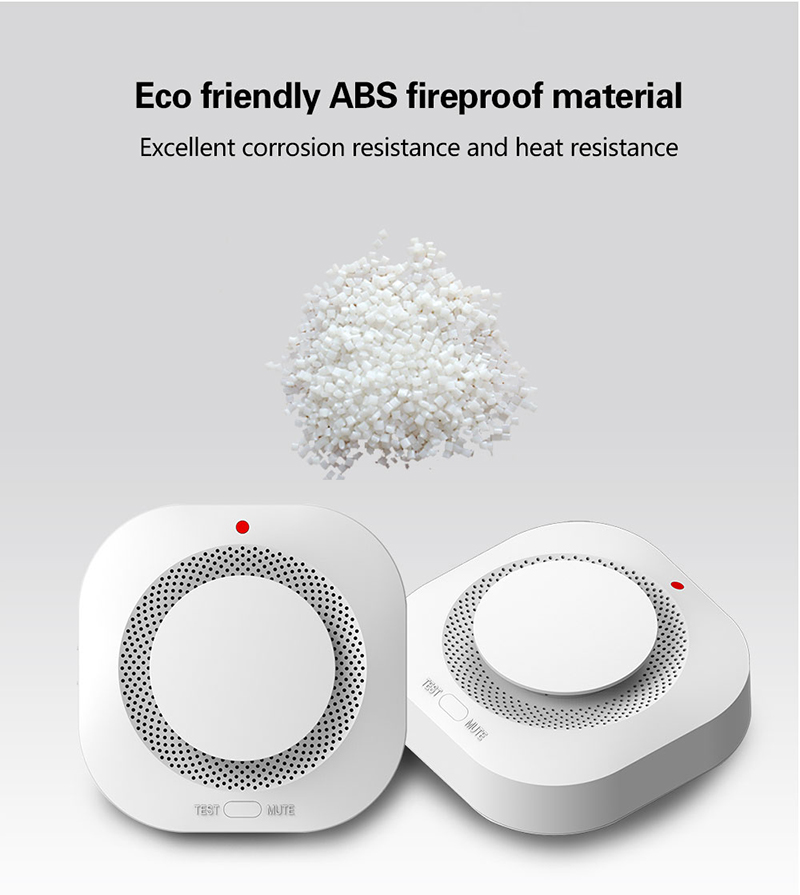

Wireless Smoke Detector(图3)Wireless Smoke Detector(图4)

Wireless Smoke Detector(图7)

Wireless Smoke Detector(图8)

Wireless Smoke Detector(图9)


- High sensitivity, Wireless use((DC9V Lithium battery)

- 80dB alarm sound with alarm indicator
- Durable Sensor Head; Excellent smoke access
- Low Battery Indication

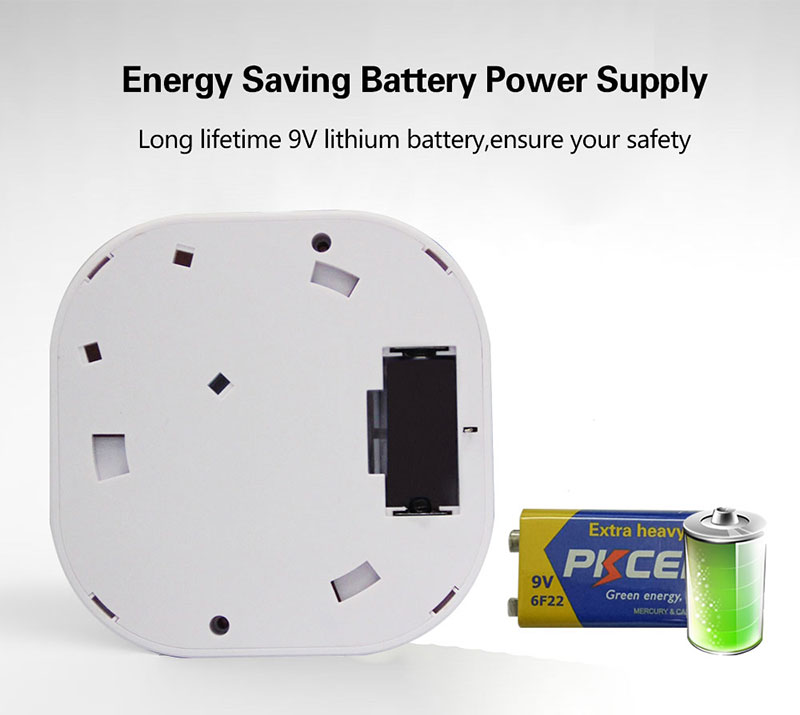

  • Power Supply:DC9V Lithium battery (6F22/9V)

  • Static Current:<10uA

  • Alarm Current: <100mA

  • Emission Distance:≥100m(open space)

  • Alarm sound:>80dB

  • Frequency:433MHz/1527/330K

  • Sensor: Photoelectric

  • Installation Method: Ceiling Mounted

  • Operating Temperature: 0°C ~ +50°C; Operating Humidity: ≦90%RH

  • Dimensions: 108mm(Dia)*40mm(H)


Package Contents:

  • Standard Exporting Packing Box
