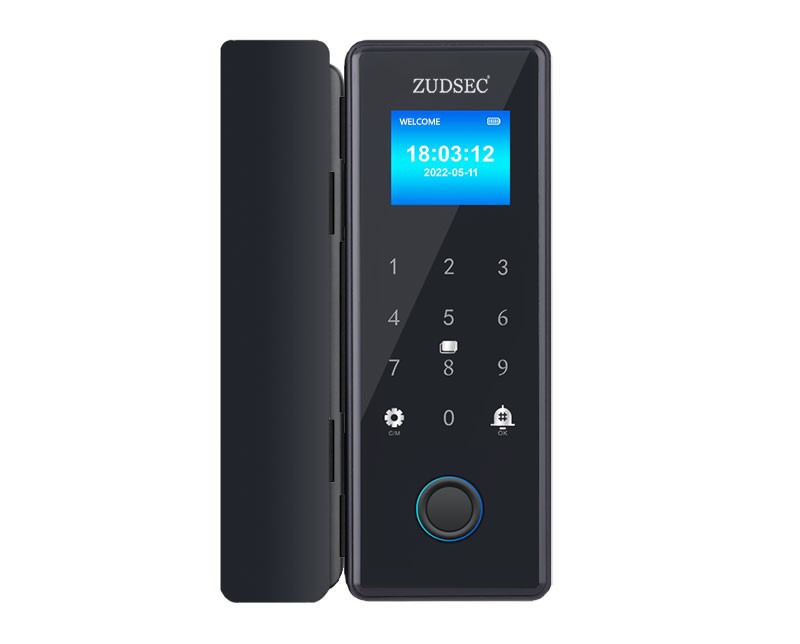

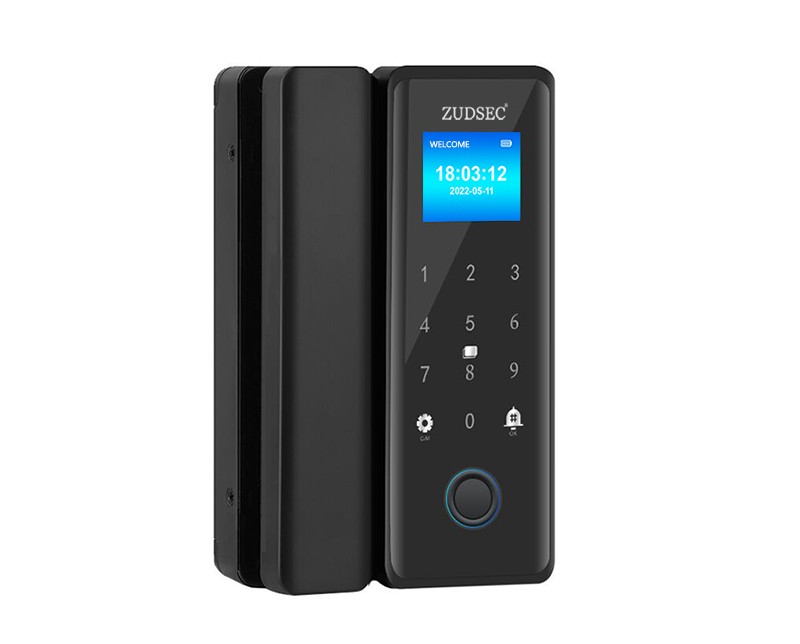

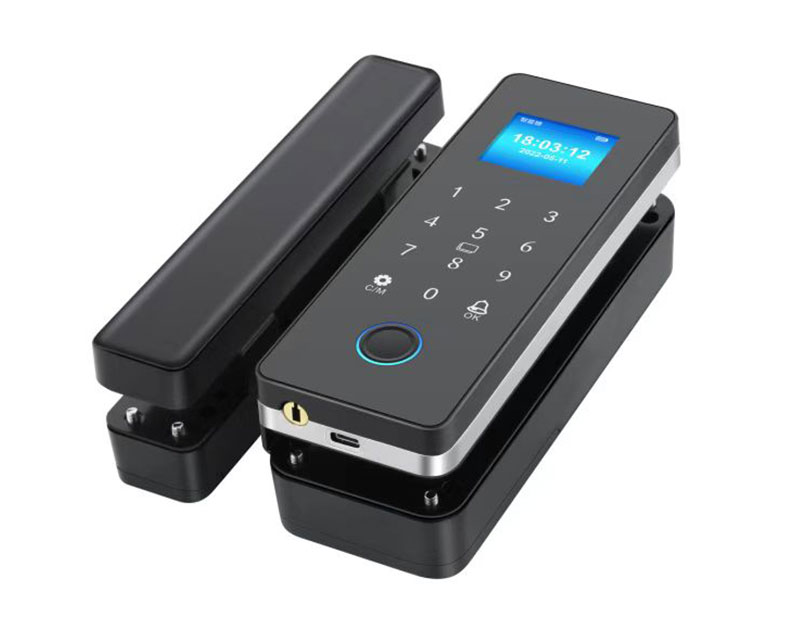

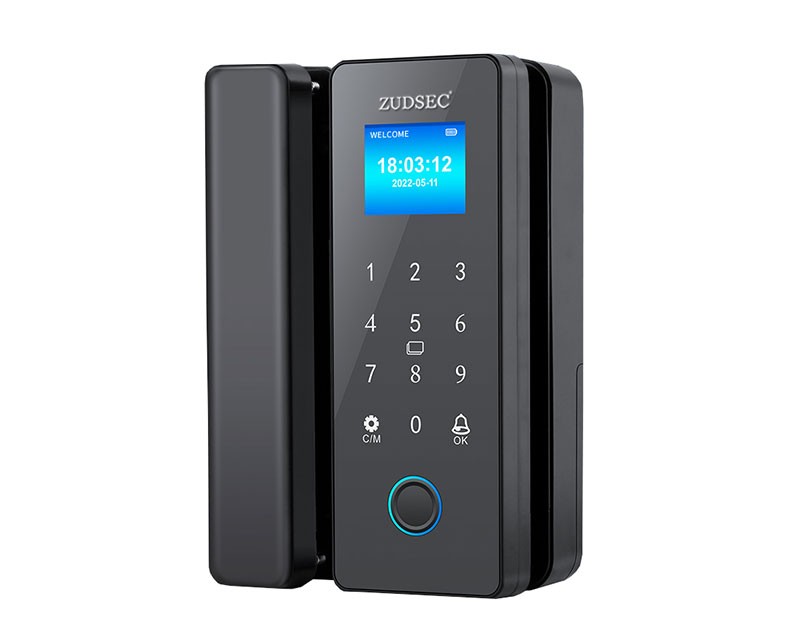

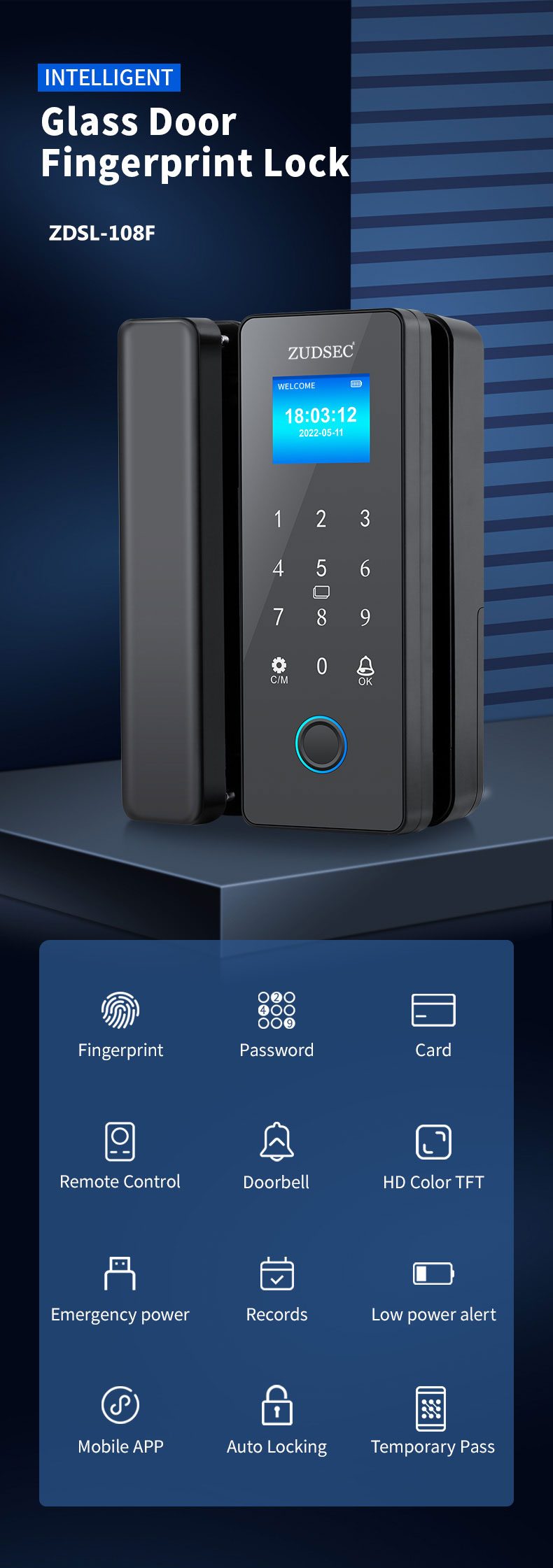

Intelligent Glass Door Fingerprint Lock:  Easy to install, 1.77 inch color TFT display, doorbell, auto-locking, High performance semi-conductor fingerprint sensor, with Smart life mobile APP control, Time attendance records can be reviewed on the mobile, or exported to EXCEL file. ZDSL-108F can be widely used for double frameless glass doors, single frameless glass doors and framed glass doors (with different accessories) in the offices.

- Multiple unlock mode:  Fingerprint, password, IC card, temporary password

- Display: 1.77 inch color TFT

- Fingerprint capacity: 100(Capacitive)

- Time attendance records can be reviewed on the mobile, or exported to EXCEL file.

- Smart life mobile APP Control

- High sensitive full touch keypad with backlight, easy use even in the darkness.

- Support DIY installation just with a screwdriver, no need any take hole, Free of wiring, drilling.

- Doorbell built-in offers every convenience for the visitor.

- Powered by 4pcs AA Battery and with low battery alarm, Battery life: 2,000 times open / close

- Optional Remote control function.

- Support external emergency battery input.

- Support USB to download attendance record.

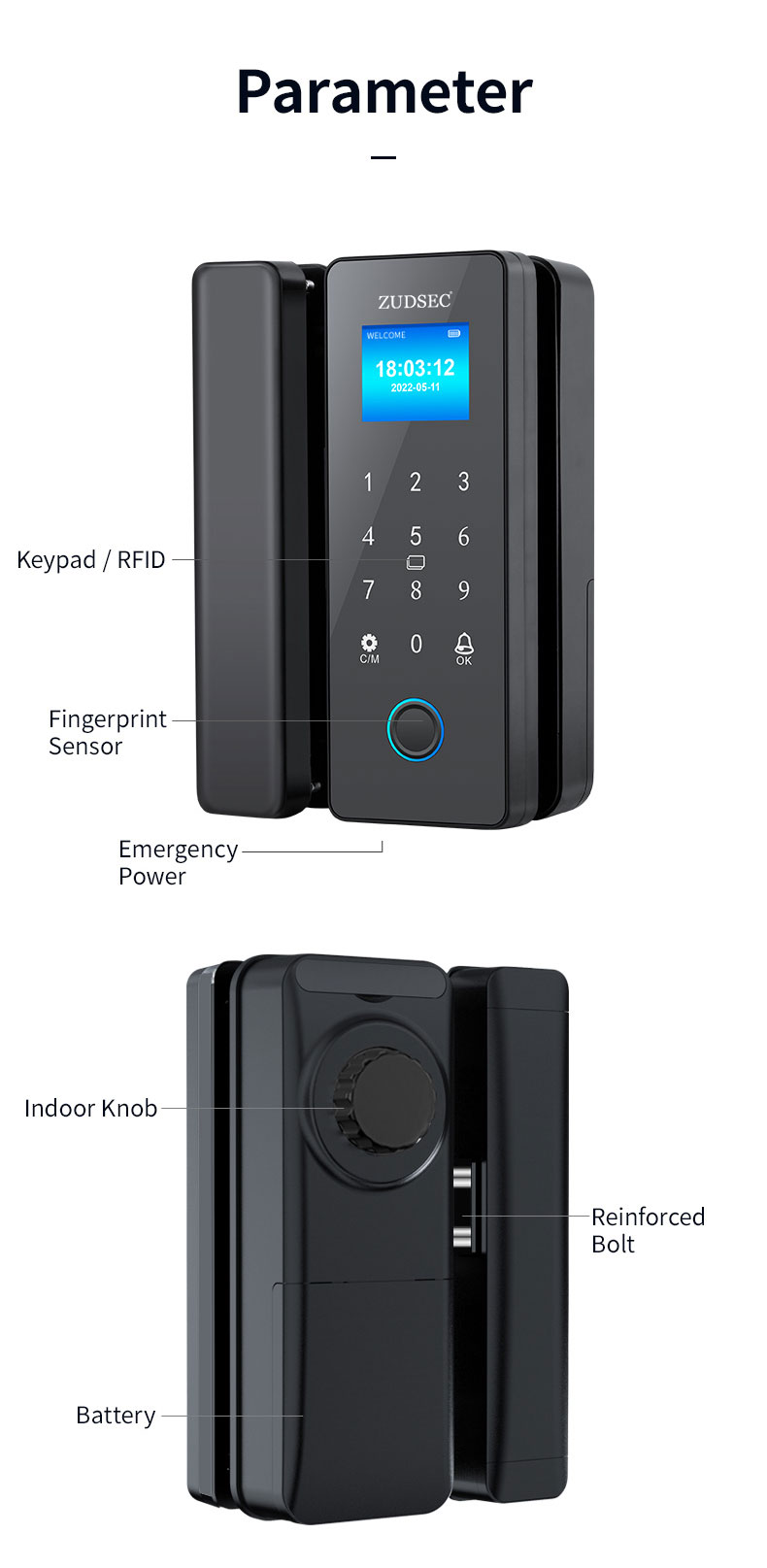

• Unlocking mode: Fingerprint/password/ card and other methods

• Sensor type: Semi-conductor fingerprint sensor

• Recognition speed: <0.5s

• Failure?rate: <0.0001%

• Fingerprint capacity: 100

• User capacity: 1000

• Record: 100,000 Pcs

• Remote control capacity: 36(optional)

• Working temperature: -25℃~65℃

• Working humidity: -25~95%(no condensation)

• Power supply: 1.5V AA alkaline batteries x4

• Battery life: 2,000 times open / close

• Emergency power supply: Micro USB

• Current: Static<50uA, dynamic <200mA

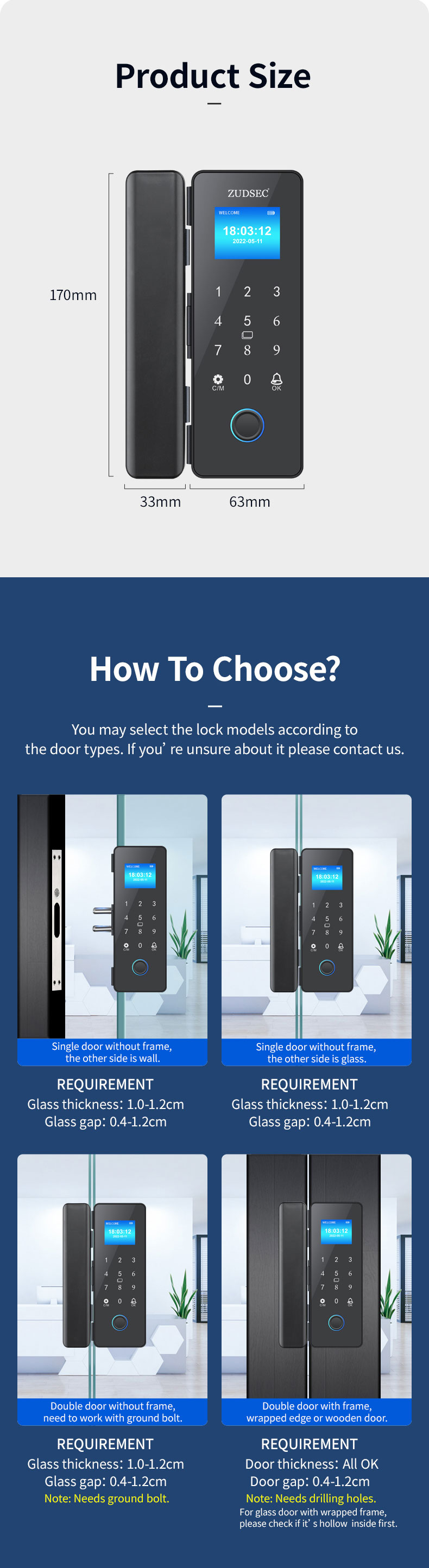

• Application:  8-12mm frameless glass door (door gap 4-15mm); 30~120mm framed glass door /wooden door

Package Contents:

• Standard Exporting Packing Box
