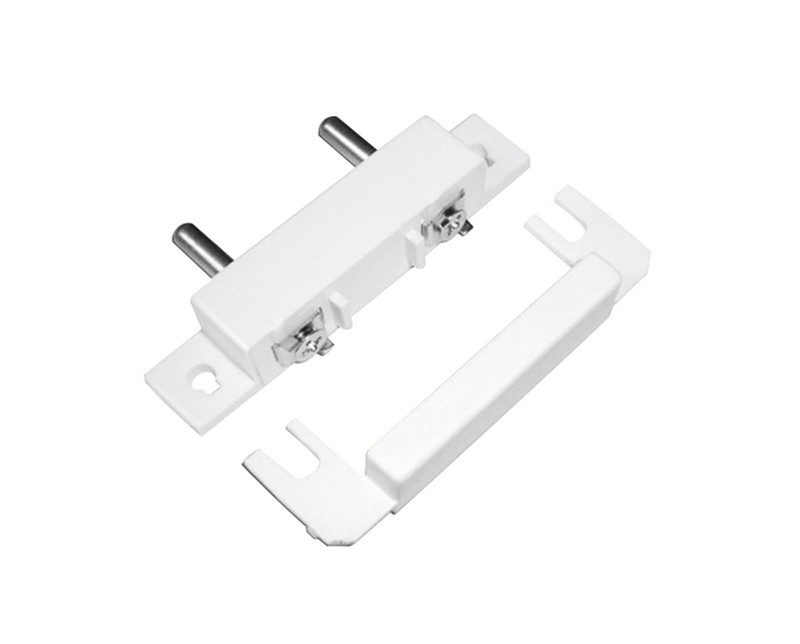

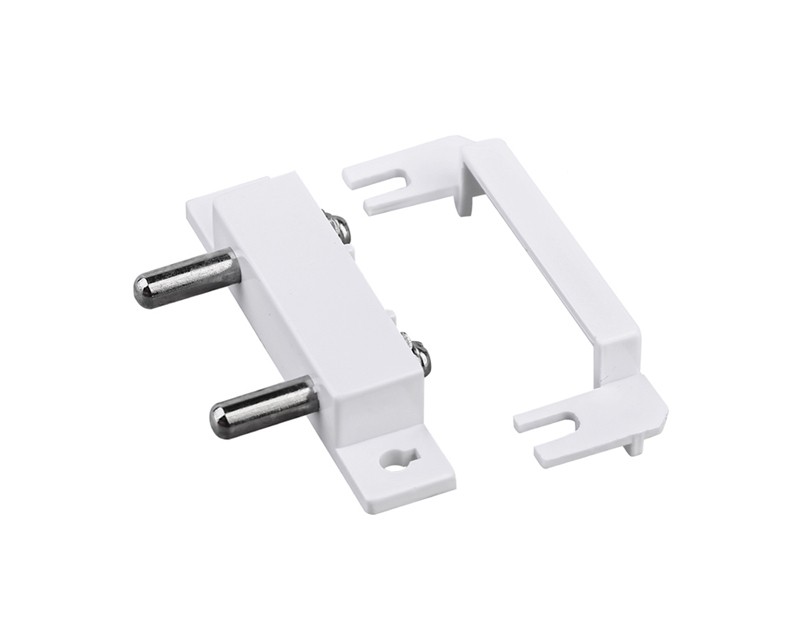

Wired Water Leakage Detector: Fractal structure ZDD-003WL can realize the level control and alarm in the production process by using the conductivity of the liquid. The detector adopts metal probe design with advantages of high accuracy and sensitivity, low power consumption, long-term stability and reliability, etc

It can be widely used in all water storage equipment, such as basement, water tank, machine room, water route, water tower, water cellar, pools, water room, solar energy and anywhere to detect water leakage area.

- Rust-proof metal probe, long service life

- Signal amplification, Water proof, Dust-proof

- Contact: NO(Nomally Open)

- Fractal structure, easy and flexible to use.

• Housing: Fire-proof ABS, White

• Detecting Leads: Copper plating

• Voltage:  DC3~24V

• Contact: NO(Nomally Open)

• Impedance: Electrodes type trigger impedance of 3 m or less Ω

  flooding acuity 0.5 mm height

• Product size: 63L*13W*12Hmm

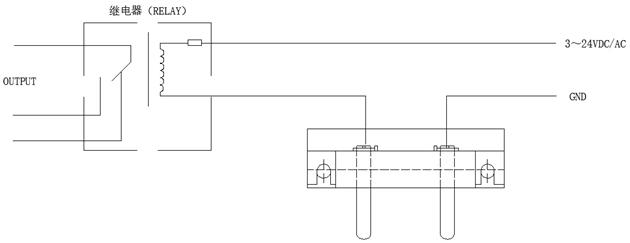

* Wiring diagram:

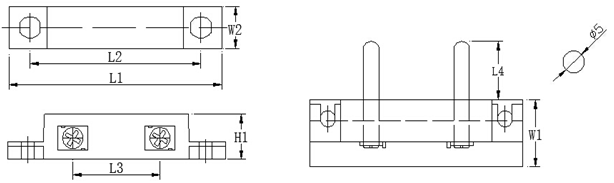

* Product size:

Package Contents:

• Standard Exporting Packing Box
