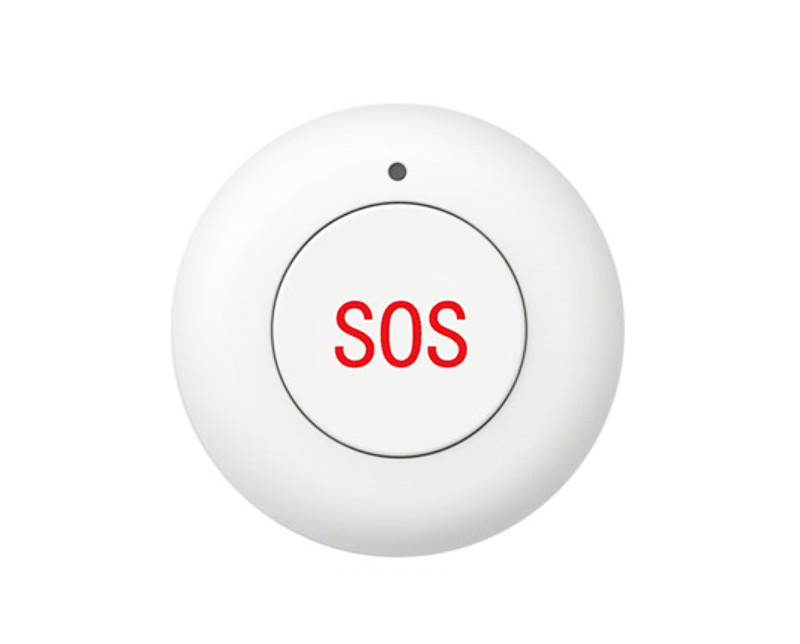

Wireless Emergency/SOS Button: ZDEB-107

Wireless Emergency SOS Button

MODELZDEB-107

Facebook Twitter InLink instagram Youtube Skype
  • Button type

  • Compact appearance

  • Anti false alarm design

  • Zero standby power consumption

  • Low battery detection

Wireless Emergency/Panic/SOS Button:  Compact, light, attractively designed. Once the emergency incident occurs, press the panic button to transmit the signal to the host by the wireless way so as to achieve the effect of emergency call.


This product is suitable for all the places where the security protection is needed, such as residential areas, companies, shopping malls ,hospitals, banks, guard post etc.

- Panic button type
- Compact appearance
- Anti false alarm design
- Zero standby power consumption
- Low battery detection
- Long battery life: up to 2 years
- Anti RFI 20V/m-1GHz
- SMT process

  • Operating voltage 3V 1*CR2032 button cell
    Standby current 1uA;  Alarm current 20mA

  • Alarm indicator red LED

  • Low-battery indicator rapid flash of red LED

  • Coding mode MCU coding with 2262 1527 optional

  • Transmitting frequency: 433M

  • Transmitting distance: 50m-100m(open area)

  • Alarm type: button type

  • Operating temp.:-10℃~+50℃

  • Ambient humidity: <80%RH

  • Dimension 50*15mm; Weight: 0.05kg


Package Contents:

  • Standard Exporting Packing Box
