UPS Uninterrupted Power Supply: ZDCP-1210-9U
Multi-Angle View

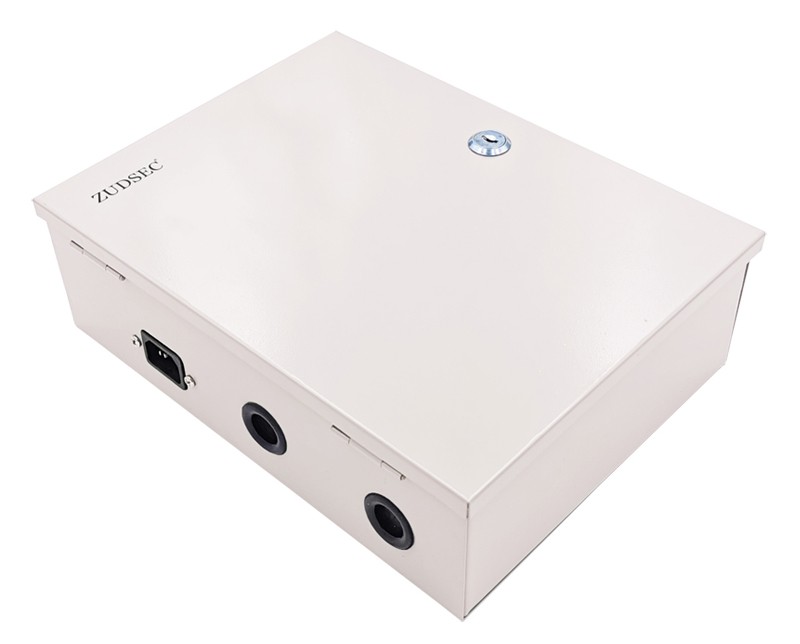

Box-Type UPS Uninterrupted CCTV Power Supply

MODELZDCP-1210-9U

Facebook Twitter InLink instagram Youtube Skype
  • Multi-outputs Box-Type CCTV Power Supply

  • Support UPS Uninterrupted function

  • Input:AC100-240V.

  • Output: DC12V, 10A,

  • Channels: 9 channels

  • Output over-voltage, over-current and short-circuit protection


Box-Type UPS Uninterrupted  CCTV Power Supply:  DC12V, 10A, UPS Uninterrupted, 9 Channel Central CCTV Security Camera Switching Power Supply Metal Box. The CCTV power supply is primarily designed for PTZ and camera of CCTV system. It's also used for access, building/house control, intrude alarm and other light-current. It is for desktop or wall-mounted installation.


- Optional Model: ZDCP-1220-18U (DC12V, 20A, 18channel with UPS Uninterrupted funtion)

- AC input voltage range is switched by switch

- Support UPS Uninterrupted function

- Medium volume, light weight and high efficiency

- Protection Characteristics: Output over-voltage, over-current and short-circuit protection

- With boot-up display (light emitting diode)

- 100% Full Load Burning Machine Test

- Built-in EMI filter

- 100% load test

- Full range of input voltage

- Output voltage accurate and stable

- Output low ripple and noise



ModelZDCP-1210-9U
Input VoltageAC110-240V
Input Voltage Frequency60Hz/50Hz
Output DC 12V, 10A, 9CH (1200W)
Total Output Current10A ( (500amp/output, 9channels for 9 sets security cameras))
Total Outputs120W
Fuse TypeGlass (Resetable fuse)
Fuse Rating1.5Amps /250VAC
Backup batteryDC 12V 7Ah Sealed lead-acid battery
Protection
General Protectioneach  output has individual glass (Resetable) fuse and LED indicator, when problem occurs,only affect the  individual output, other outputs still working
Circuit Short Protectionwhen short condition occurs, individual glass (Resetable) fuse will open the   circuit,when condition removed, glass (Resetable) fuse will automatically   back to close
High Voltage Protectionwhen high voltage occurs, the surge protection will be hit through to protect the connected device
high tenperature protection115 degree
FeaturePower   ON/OFF switch
Unit maintains camera synchronization
Easy installation saves time and eliminates costly labor
Safety standardsAccording with GB4943, UL60950-1,EN60950-1 standards.
E M C standardsAccording with GB9254, EN55022 class A EN61347-2-13:2008 standards
Application
CCTVCamera,  PTZ, IR Illuminators, Video Process Equipment, etc
Access ControlReader,   Lock, Panel, etc.
Size (mm)240(L)*210(M)*53(H)mm
Cooling methodNatural cooling   air convection
Weight1.5KG




Package Contents:

  • Standard Exporting Packing Box
