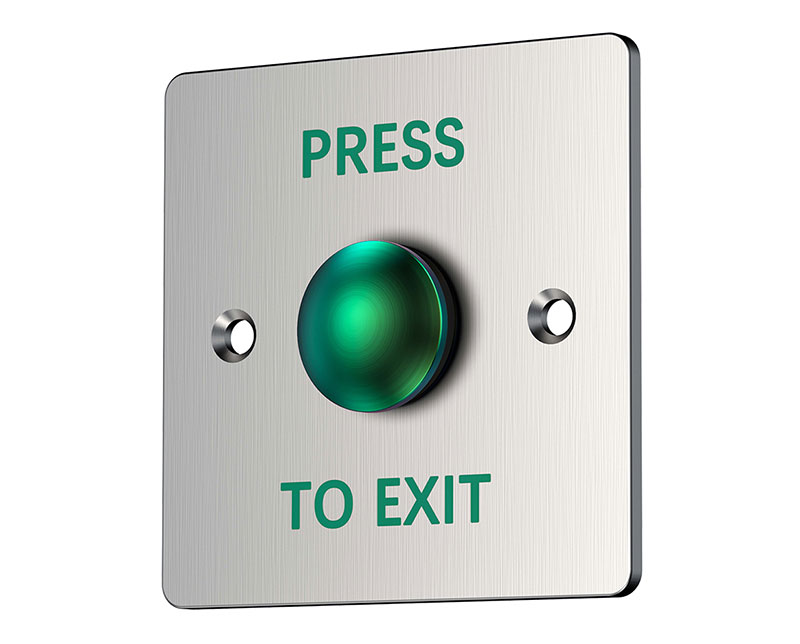

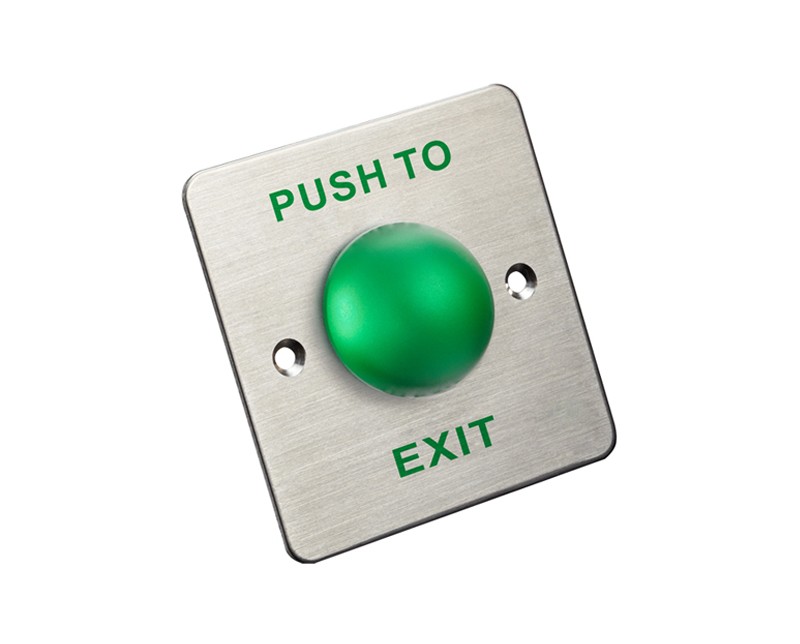

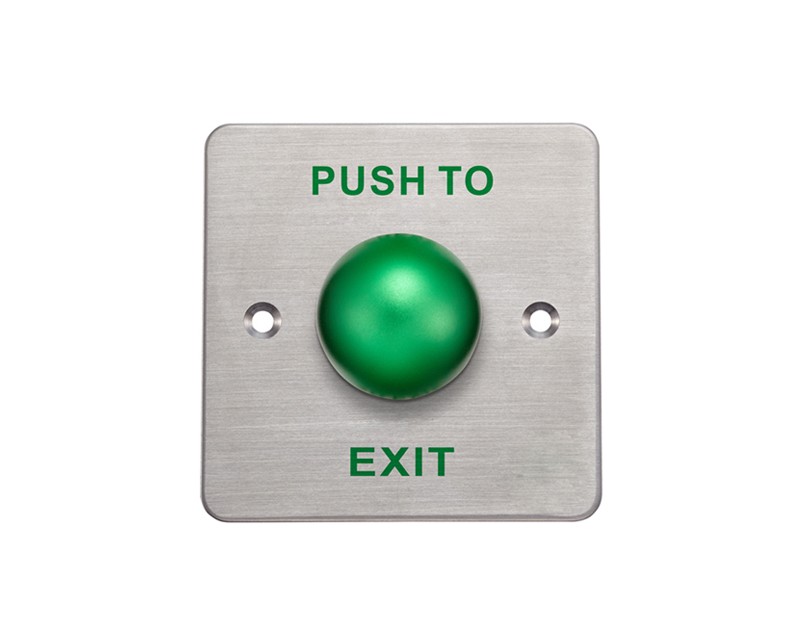

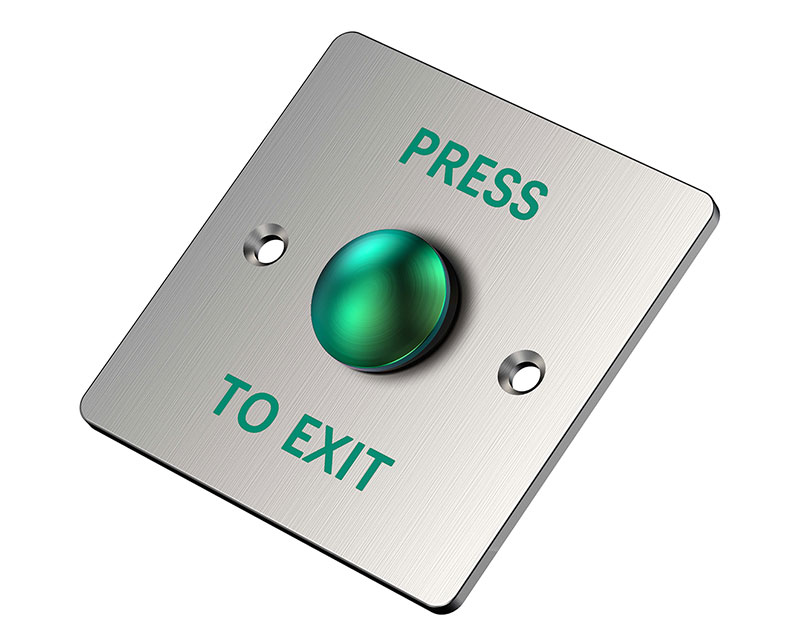

Green Mushroom Cap Push Button Switch: Mushroom cap design, 500000 times life, NO\NC\COM output contact. Door release buttons are the most common and the most frequently used in the access control systems. They are often used in public authorities, banks, large、small and medium-sized enterprises, department stores and residences.

- Optional model: ZDBT-701DM /ZDBT-701DWL (Dimension：115*70mm)

- Stainless steel Panel, Mushroom Cap button
- Press to exit
- Output Contact: NO\NC\COM
- Mechanical Life: 500000 tested
- Suitable for access / entrance / automation

• Output Contact: NO\NC\COM

• Mechanical Life: 500000 tested


• Stainless steel Panel, Mushroom Cap button


• Current Rating:  3A@36VDC Max


• Suitable for Door: Hollow Door

• Dimension：86*86mm; ; Thickness: 1.7mm; Weight: 0.15kg

Package Contents:

• Standard Exporting Packing Box
