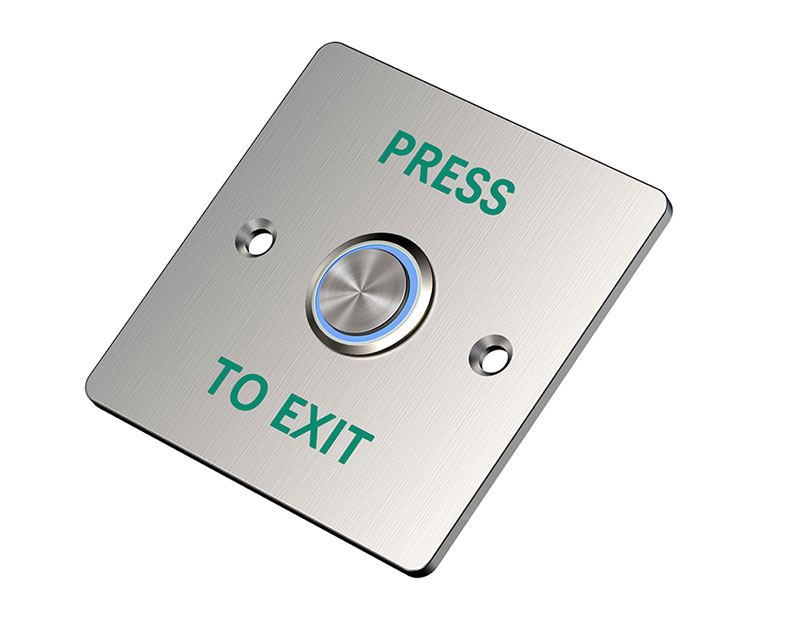

ZDBT-701BWL With Bule LED light

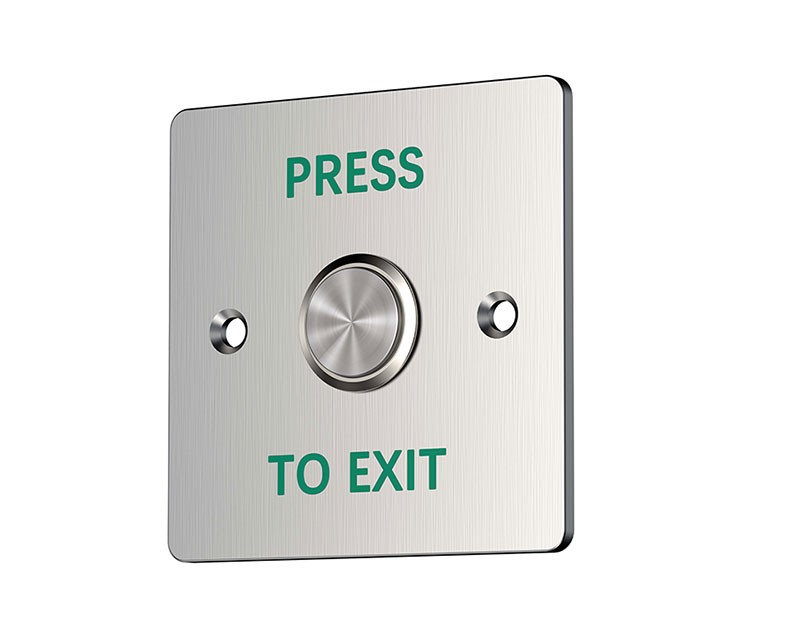

Waterproof Stainless Steel Exit Button: ZDBT-701BW

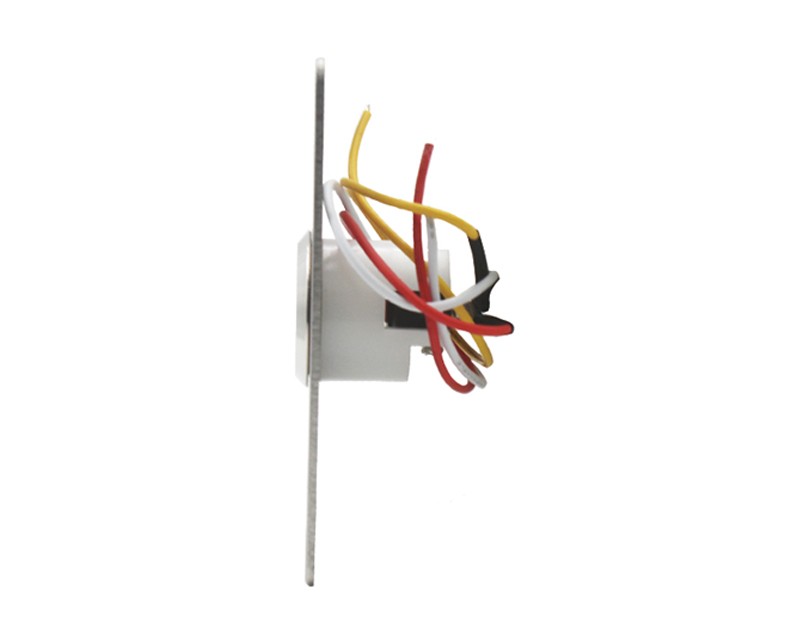

Multi-Angle View

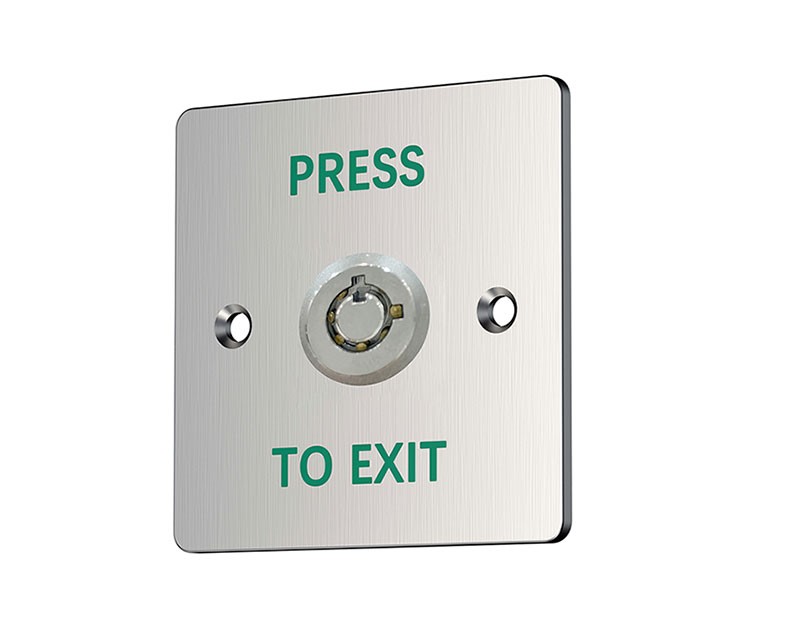

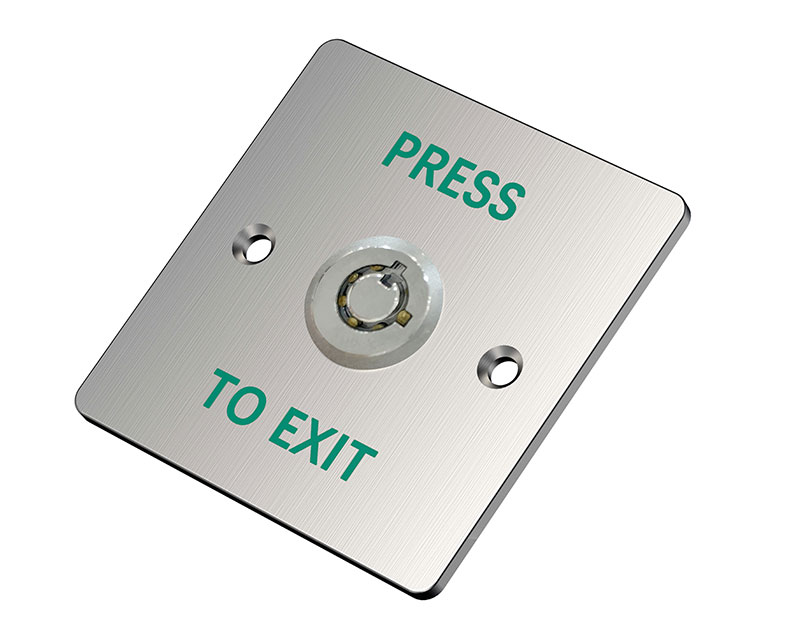

ZDBT-701BWL With Key
Multi-Angle View
Multi-Angle View
Multi-Angle View
Multi-Angle View
Multi-Angle View
Multi-Angle View

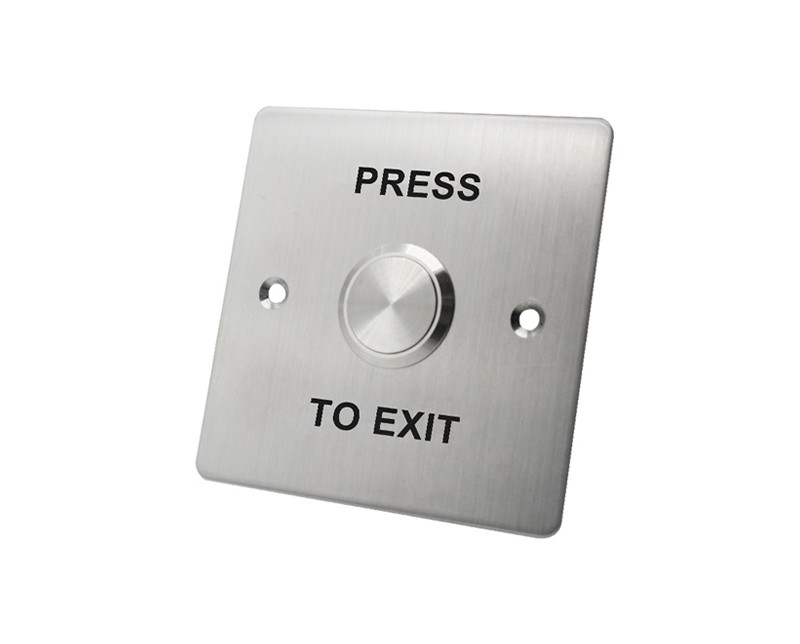

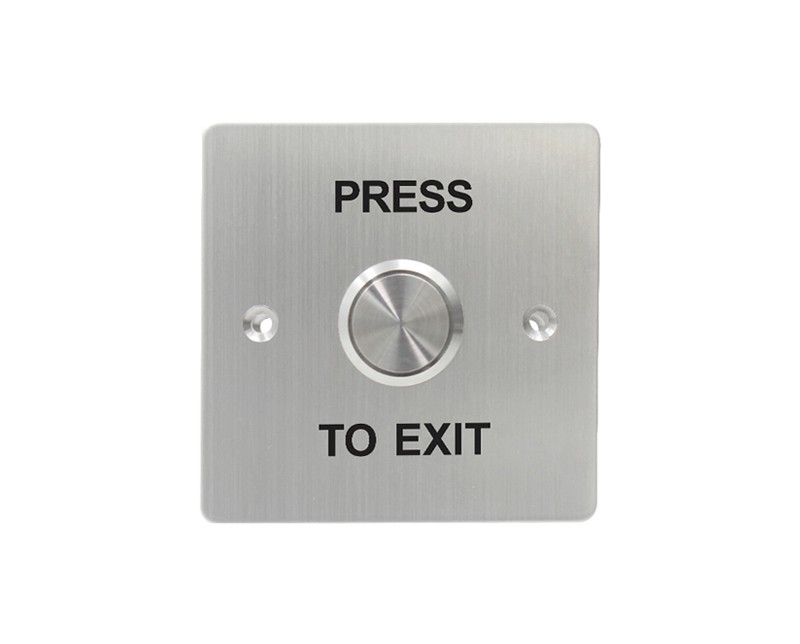

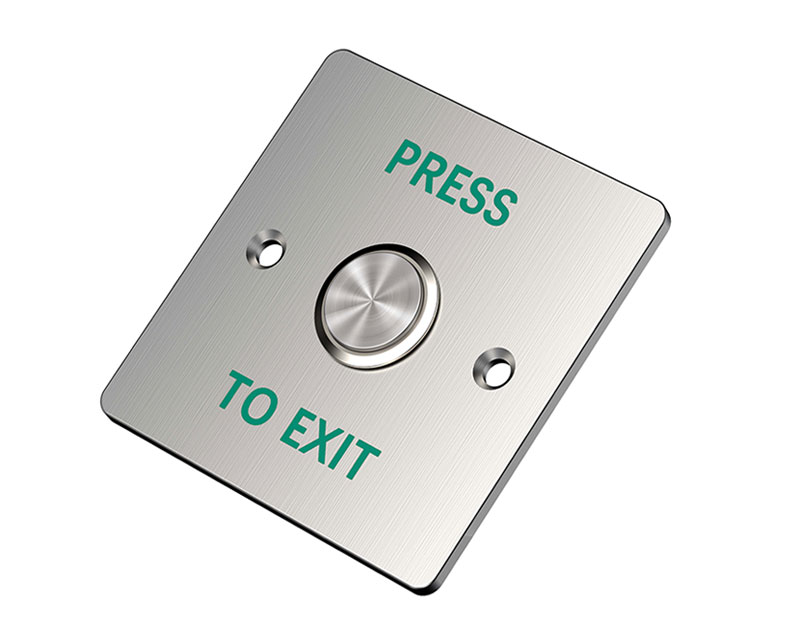

Waterproof Stainless Steel Exit Button

MODELZDBT-701BW

Facebook Twitter InLink instagram Youtube Skype
  • IP68 Waterproof design

  • Stainless steel Panel and button

  • 500000 times life

  • Thickness: 1.7mm

  • Contait Output: NC.&NO.

  • Suitable for all kinds of locks.

Waterproof Door Release Exit Button: Waterproof design,  IP68, Stainless steel Panel and button, 500000 times life, Auto reset, Can be used as door release button, it's widely used for access control system.


- Optional model:

* ZDBT-701BWL With Bule LED light

* ZDBT-701BK with Key

- Stainless steel Panel/button
- Waterproof design,  IP68
- Mechanical Life: 500000 tested
- Contact Output: NC.&NO.
- Thickness: 1.7mm
- Suitable for Door: Hollow Door

  • Mechanical Life: 500000 tested

  • Thickness: 1.7mm

  • Material: 304 Stainless steel

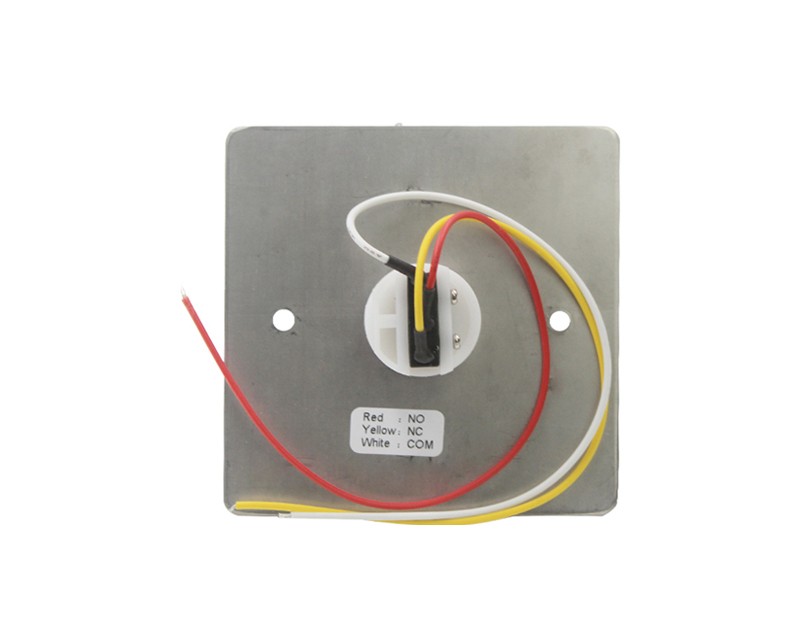

  • Contact Output: NC.&NO.

  • Current Rating:  3A 36VDC Max

  • Suitable for Door: Hollow Door

  • Operating temp: 10~+55ºC(14-131F)

  • Operating Humidity: 0-95% (non- condensing)

  • Product Size: 86×86mm; Packing size: 105*90*40mm; Weight: 0.15kg


Package Contents:

  • Standard Exporting Packing Box
