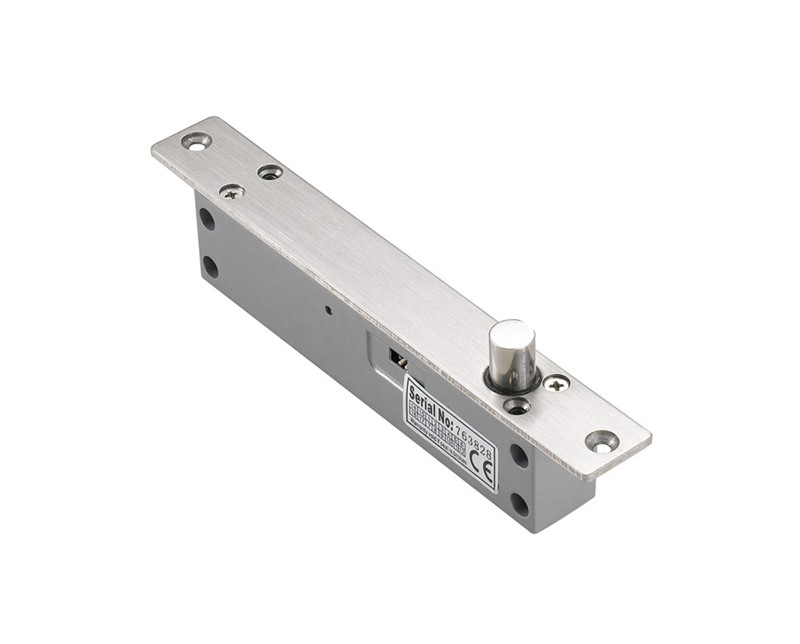

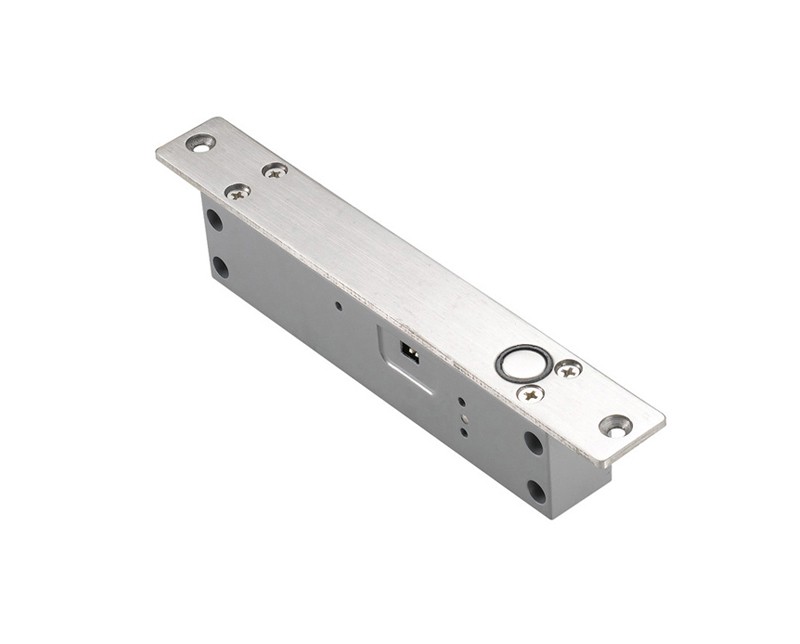

Sturdiness Electric Bolt Lock: ZDL-211NC
Sturdiness Electric Bolt Lock: ZDL-211NO

Sturdiness Electric Bolt Lock -5 Wire,Low Temperature,Signal & Time

MODELZDL-211NC/NO

Facebook Twitter InLink instagram Youtube Skype
  • Low Temperature, safe & Durable.

  • Field selectable fail safe/fail secure

  • Design without Mechanical Failure.

  • Door status signal output contact

  • Long Life  with 500000 Operations.

  • Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt

Sturdiness ElectricBolt Lock -With Signal & Time: 5 Wire, Superier low temperature design, With Signal output & Time delay, Safe & durable, Suitable for Wooden Door,Glass Door,Metal Door,Fire Proof Door etc.

- Optional Model No.:

* ZDL-211NC:(Fail-Safe type: Power to lock)
* ZDL-211NO:(Fail-Secure type:  Power to open(unlock)

- Superier low temperature design
- Lower power consumption, Enviromental protection
- Door status signal output contact (NC.COM or NO. COM)
- Superior Strength Aluminium Alloy, Solid Stain-less Steel Bolt
- Long Life  with 500000 Operations.
- Safe & durable.
- Working Measure: power-on to lock, power-off to unlock.
- Suitable for: Wooden Door,Glass Door,Metal Door,Fire Proof Door

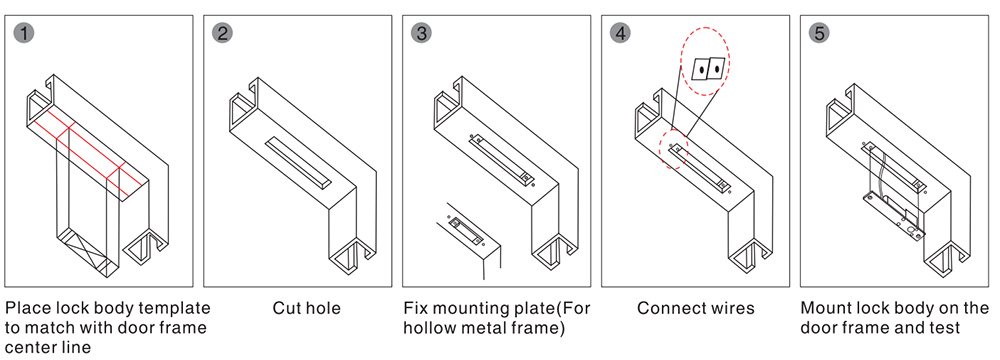

Sturdiness Electric Bolt Lock -5 Wire,Low Temperature,Signal & Time(图1)


  • Input Voltage: DC12V

  • Working Current: 900mA; Static Current: 120mA.

  • Working Measure: Fail safe, Locked when energized(ZDL-210NC).

  • Fail-safe type: Power to lock

  • Coil type: Continuous working

  • Solid Bolt: polishing housing, 800Kg Holding Force

  • Surface Temp: Low Temperature

  • Induction Distance:8mm

  • Product Size: 192Lx25WX37H(mm)
           Packing size: 22.5*7*4cm, Weight: 0.65Kgs

  • Operating temp: -10~+55°C(14-131F)

  • Operating Humidity: 0~90%

  • Special Designed: Tested to 500000 cycles

  • Face place material:High Aluminum, Carrulous Line Finished


Package Contents:

  • Standard Exporting Packing Box
