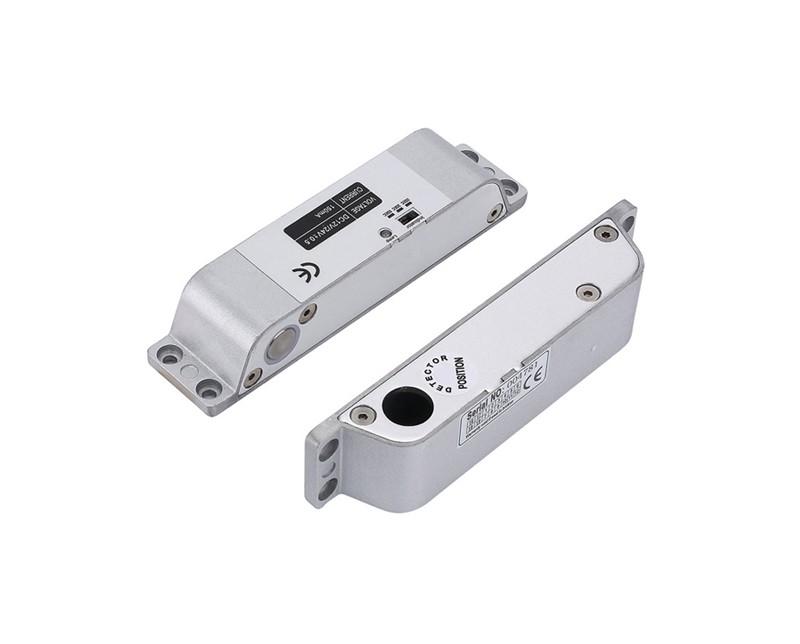

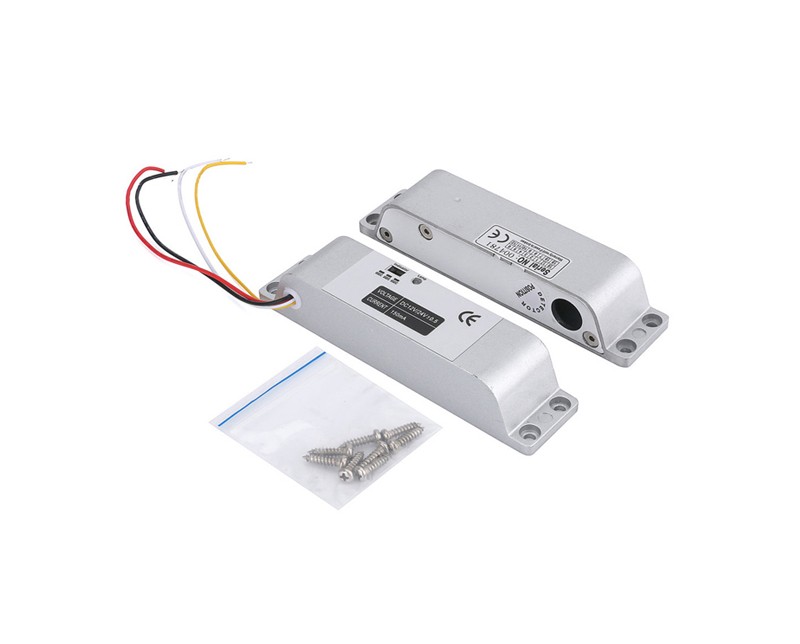

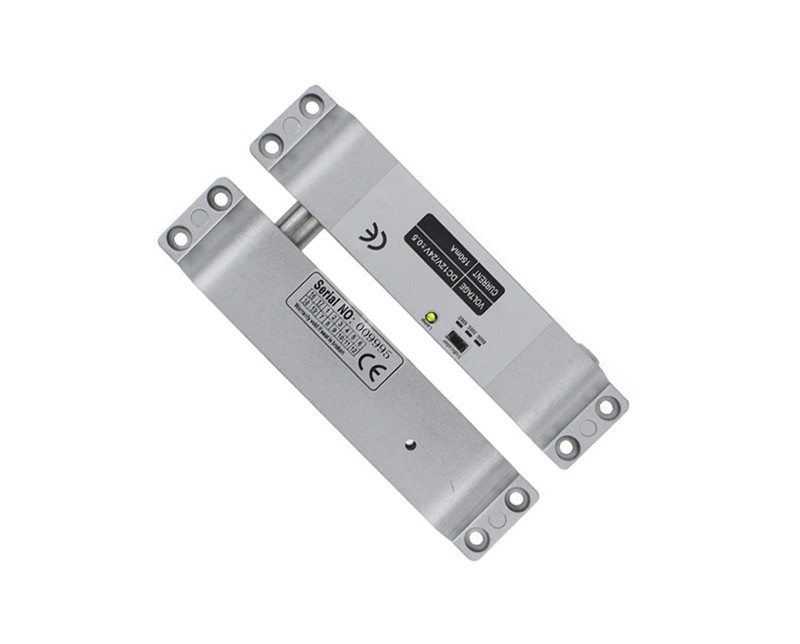

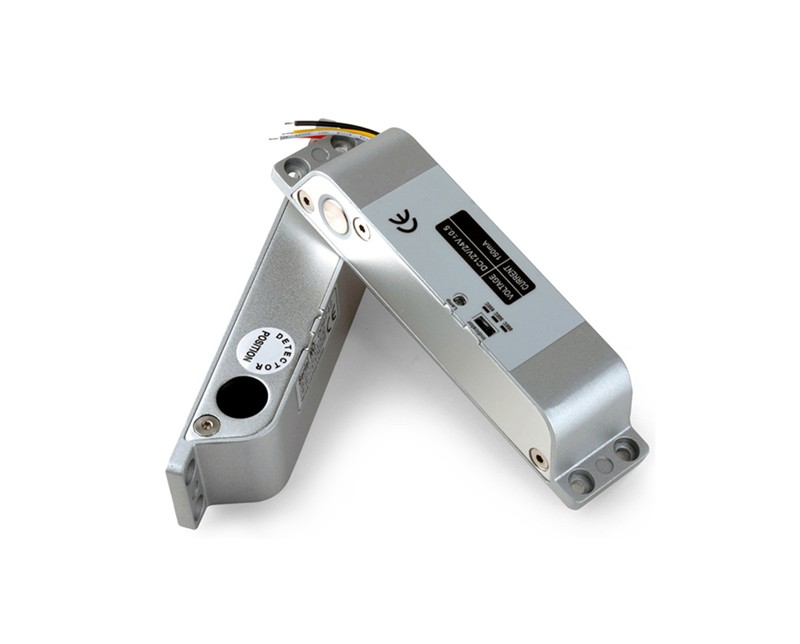

Electric Bolt Lock: Zinc Alloy, Surface mounted, no need to dig a hole on frame. it's an all-metal construction electric bolt. The Fail Safe is locked when energized. Adopt high quality parts; Door status signal output contact (NC/NC/COM), Time delay setting; Lower power consumption, Safe & durable, Suitable for Wooden Door,Glass Door,Metal Door,Fire Proof Door.

- Surface mounted, no need to dig a hole on frame, Safe & Durable.
- Lower power consumption, Enviromental protection
- Auto-relock if no Action within 5 secs
- Door status signal output contact (NO/COM)
- Working Measure: power-on to lock.
- Suitable for: Wooden Door,Glass Door,Metal Door,Fire Proof Door

• Input Voltage: DC12V

• Working Current: 900mA; Static Current: 100mA.

• Working Measure: Fail secure, unlock when energized.

• Fail-safe type: Power to lock

• Dimension: L150xW34xH28(mm)

• Operating temp: -10~+25℃（14-131F）

• Operating Humidity: 0~90%

• Special Designed: Tested to 500000 cycles

• Face place material：Zinc Alloy, Carrulous Line Finished

• Packing Dimension： 24×9×4.5Cm, Weight: 0.6Kg

Package Contents:

• Standard Exporting Packing Box
