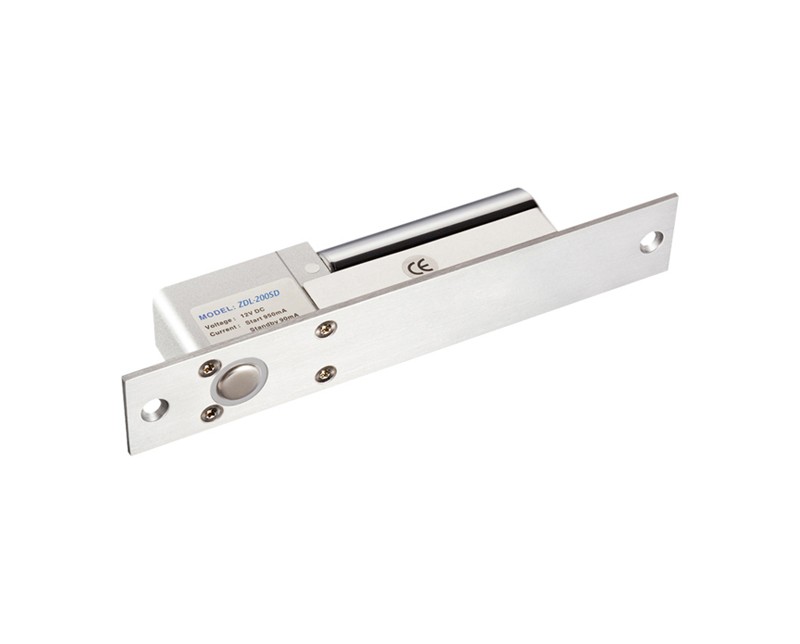

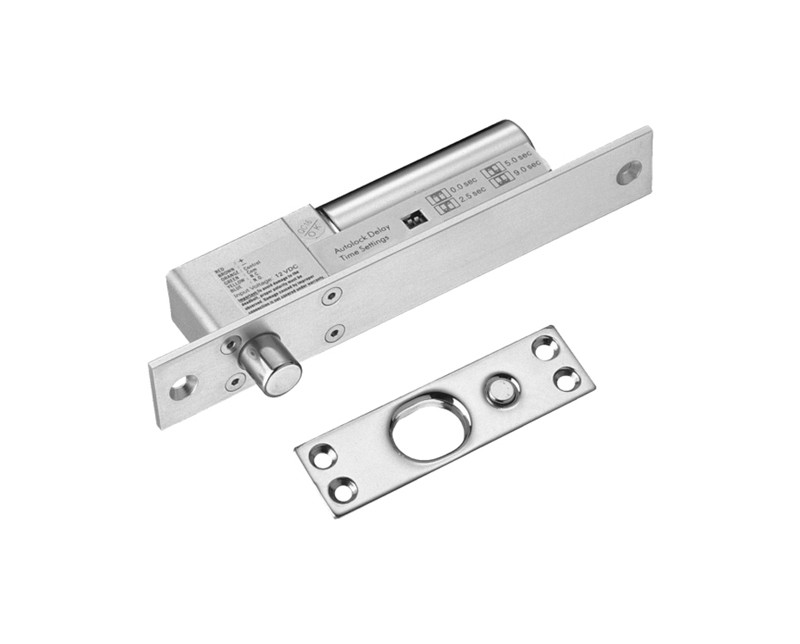

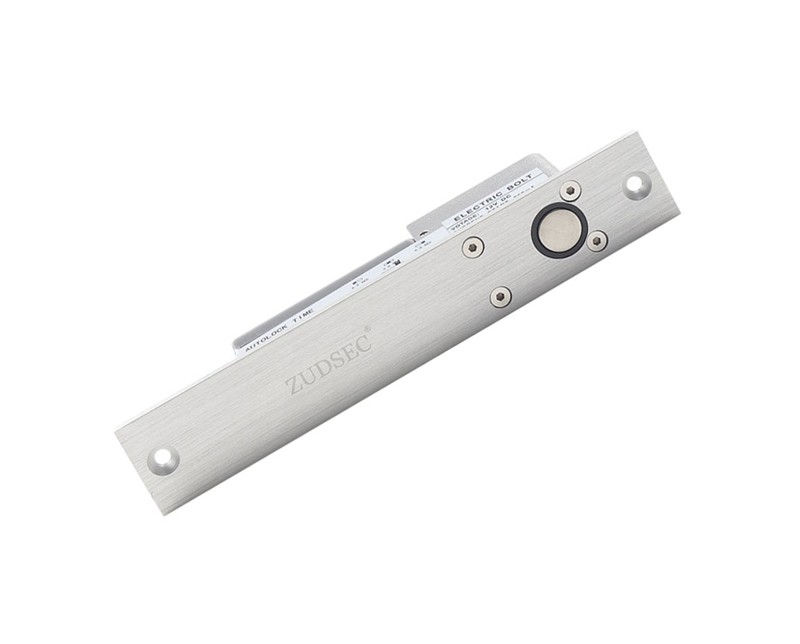

Electric Bolt Lock: ZDL-200SD
Multi-Angle View
Multi-Angle View

Electric Bolt Lock -5 Wire,Low Temperature,Signal & Time

MODELZDL-200SD

Facebook Twitter InLink instagram Youtube Skype
  • 5 Wire, Superier low temperature, Time delay design

  • Lower power consumption, Enviromental protection

  • Auto-relock if no Action within 5 secs

  • Door status signal output contact (NC/NC/COM)

  • Safe & durable.

  • Working Measure: power-on to lock.

  • Suitable for: Wooden Door,Glass Door,Metal Door,Fire Proof Door


Electric Bolt Lock -5 Wire: Adopt high quality parts, Superier low temperature design; Door status signal output contact (NC/NC/COM), Time delay setting; Lower power consumption, Safe & durable, Suitable for Wooden Door,Glass Door,Metal Door,Fire Proof Door

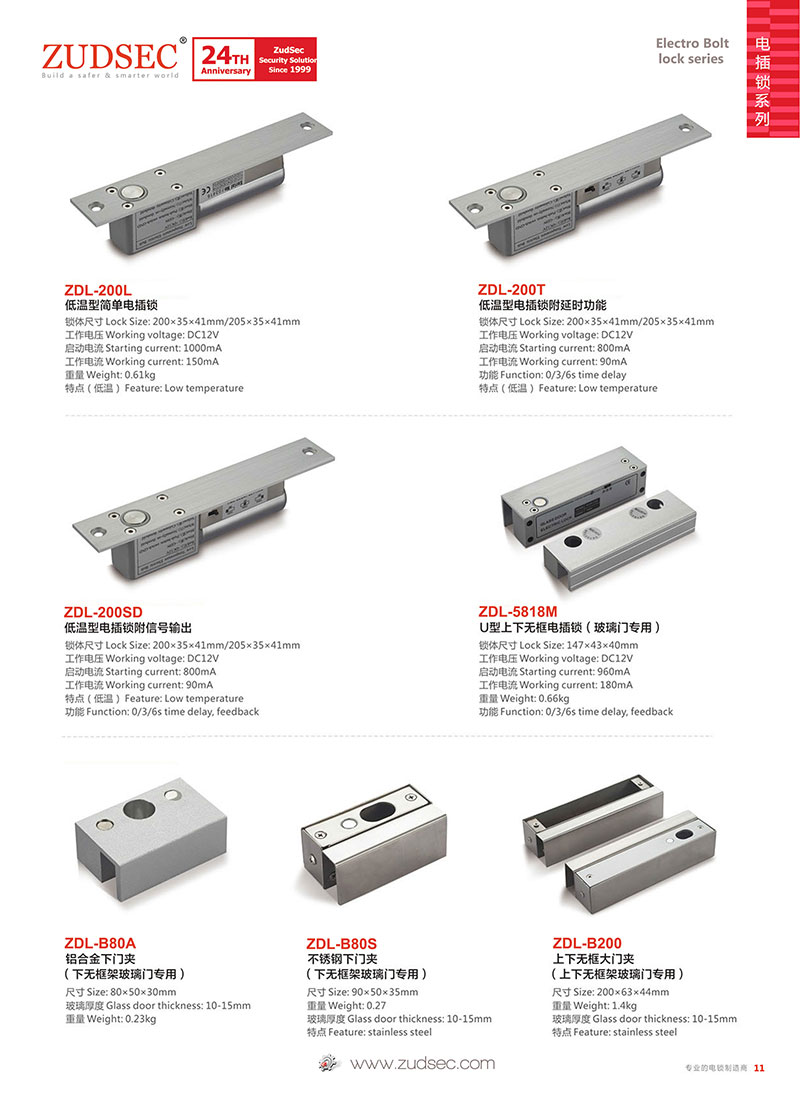

Optional model:
ZDL-200:       2 Wire with  Normal Temperature
ZDL-200L:     2 Wire with  Low Temperature
ZDL-200T:     2 Wire with Low Temperature & Time Delay
ZDL-200SD:  5 Wire with Low Temperature, Signal & Time




- Superier low temperature, Time delay design
- Lower power consumption, Enviromental protection
- Auto-relock if no Action within 5 secs
- Door status signal output contact (NC/NC/COM)
- Safe & durable.
- Working Measure: power-on to lock.
- Suitable for: Wooden Door,Glass Door,Metal Door,Fire Proof Door


Electric Bolt Lock -5 Wire,Low Temperature,Signal & Time(图1)


  • Input Voltage: DC12V

  • Working Current: 900mA; Static Current: 100mA.

  • Working Measure: Fail safe, Locked when energized.

  • Fail-safe type:: Power to lock

  • Coil type: Continuous working

  • Solid Bolt: polishing housing, 800Kg Holding Force

  • Surface Temp: Low Temperature

  • Induction Distance:8mm

  • Dimension: Face Plate: 205Lx35WX40H(mm)
                       Strike: 90Lx25Wx2H(mm)
                       Bolt diameter: 16mm;  Bolt length: 16mm

  • Operating temp:  -10~+55°C(14-131F)

  • Operating Humidity: 0~90%

  • Special Designed: Tested to 500000 cycles

  • Face place material:High Aluminum, Carrulous Line Finished

  • Packing Dimension:
    Lock: ZDL-200: 24×9×4.5Cm, Weight: 0.6Kg
             ZDL-200SD: 26.5*6.5*5.8cm, Weight 0.8kg
    Bracket : ZDL-B80A: 80*50*30mm; 0.16kg/pc
                   ZDL-B80S: 80×50×30mm
                   ZDL-B200: UP- 200x55x47(cm); Down-205x55x47(cm)


Package Contents:

  • Standard Exporting Packing Box
