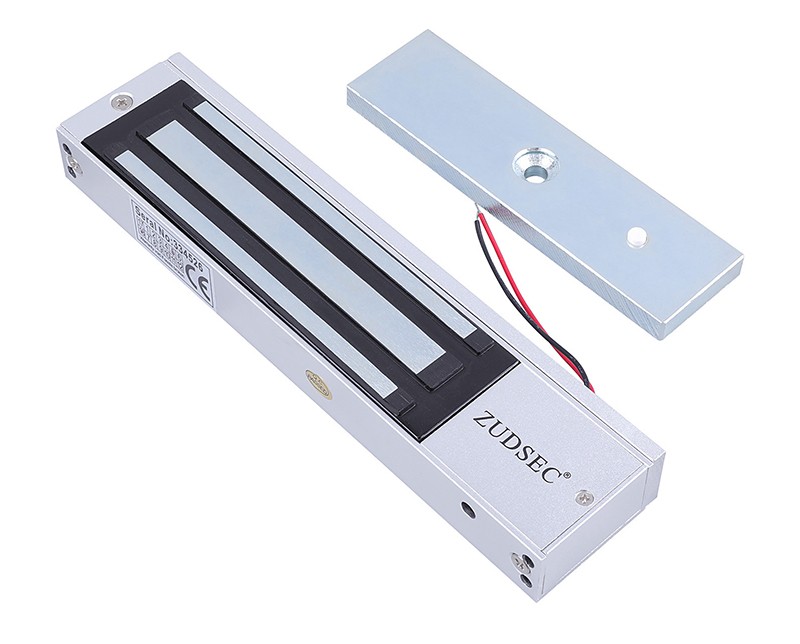

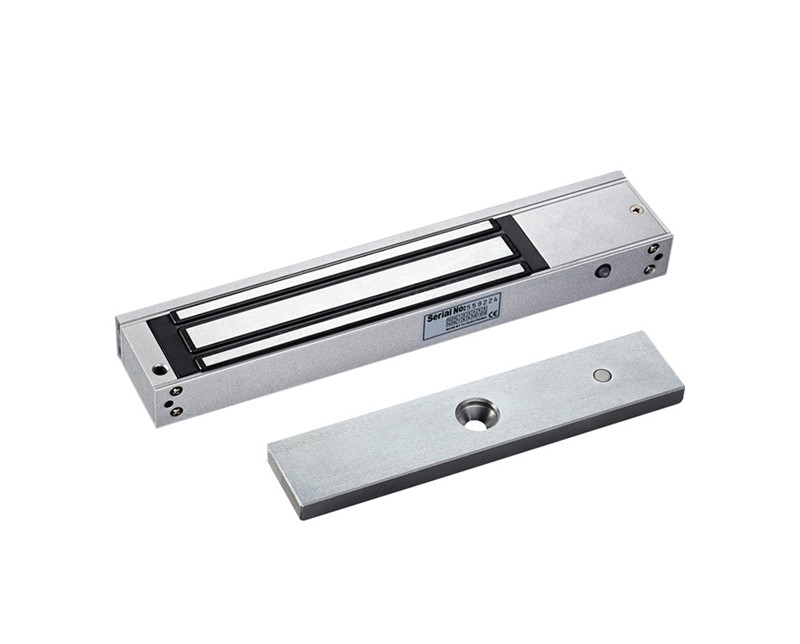

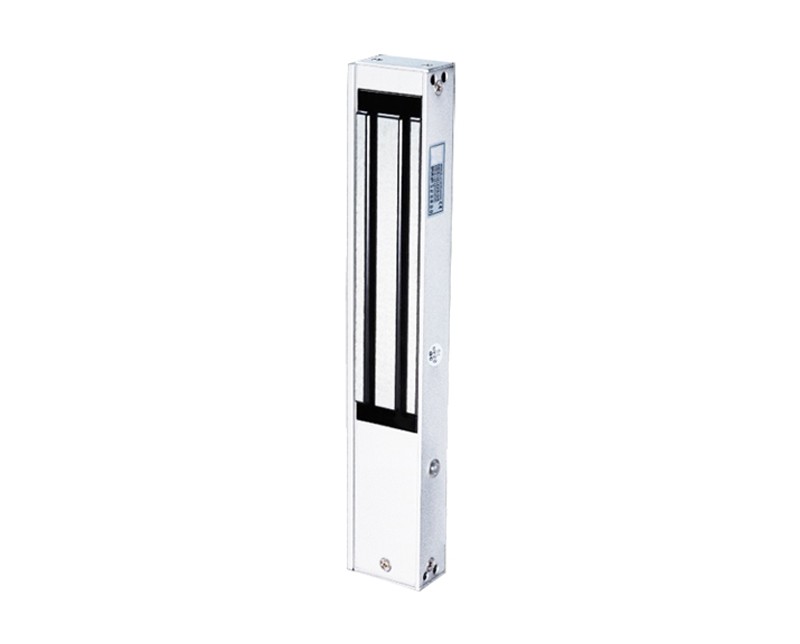

Electromagnetic lock -Single Door:   280kg(600Lbs), DC12V, or DC24, Suitable for: Wooden Door,Glass Door,Metal Door,Fire Proof Door.

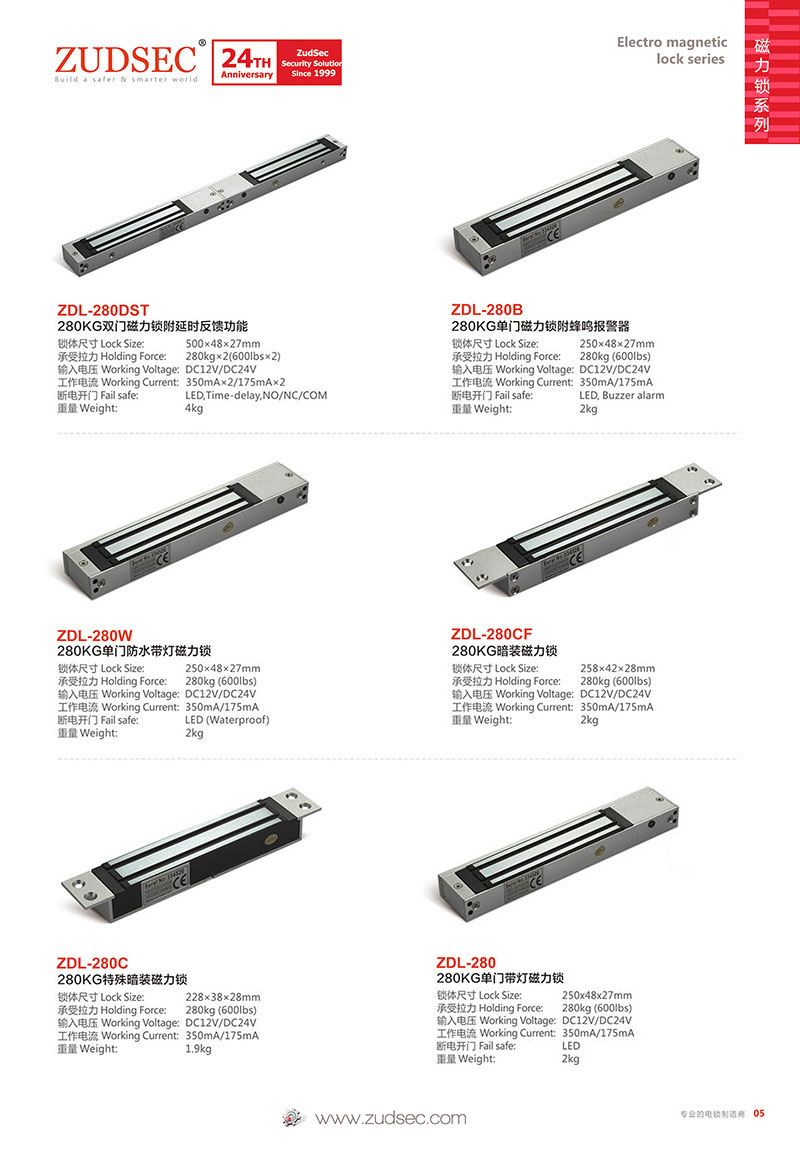

- Optional Lock Model No.:

* "S" series Lock Model: 5 wires With door state detection signal(NO/NC/COM) output function
- ZDL-280S: 280kgs(600Lbs)

* "T" Series Lock Model: 4 wires with delay setting(0-20 seconds adjustable)
- ZDL-280T: 280kgs(600Lbs)

* "ST" Series Lock Model: 5 wires with Signal output(NO/NC/COM) + Time Delay(0-20 seconds adjustable)
- ZDL-280ST: 280kgs(600Lbs)

* "W" Series Lock Model: with waterproof
- ZDL-280W: 280kgs(600Lbs)

- Input voltage：DC12V, or DC24 (can be customized)

- Holding Force: 280kg(600Lbs)

- With door state detection signal output function, for applications that require real-time monitoring of entrance door switch state occasions;  NO /NC /COM, NO output when locking and unlocking the NC output
- With adjustable delay locked 0-20 seconds
- Bi-color LED to achieve opening and closing status display
- Fail-safe type (Power to lock): Power-on to lock, Power-off to open).
- Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
- Finishes for Shell: Anodized aluninum
- Finishes for Magnetic: Zinc
- Finishes for Armature: Zinc

• Voltage: 12/24VDC+10%

• Power consumption: 12V/450mA; 24V/230mA(customizable)

• Signal output:NO /NC /COM, NO output when locking and unlocking the NC output

• Red indicates the door is unlock,Green indicates the door is lock

• Delay time:0~9 seconds

• Surface Temp: ≤+20°C

• Operating Temp: 10~+55°C(14-131F)

• Suitable Humidity:  0~90%

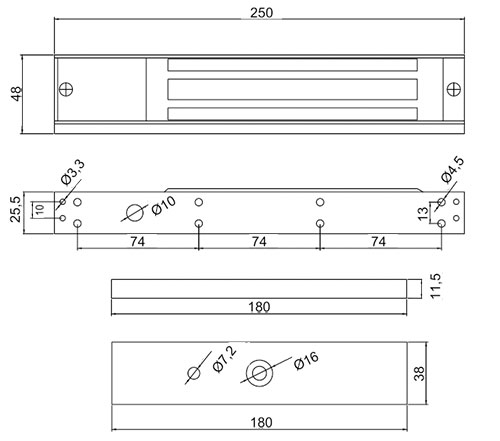

• Dimension：250×48×27mm(Body); 183×38×12mm(Magnet)
  Packing size: 26.5*6.5*6cm, Weight: 1.9Kgs



Package Contents:

• Standard Exporting Packing Box
