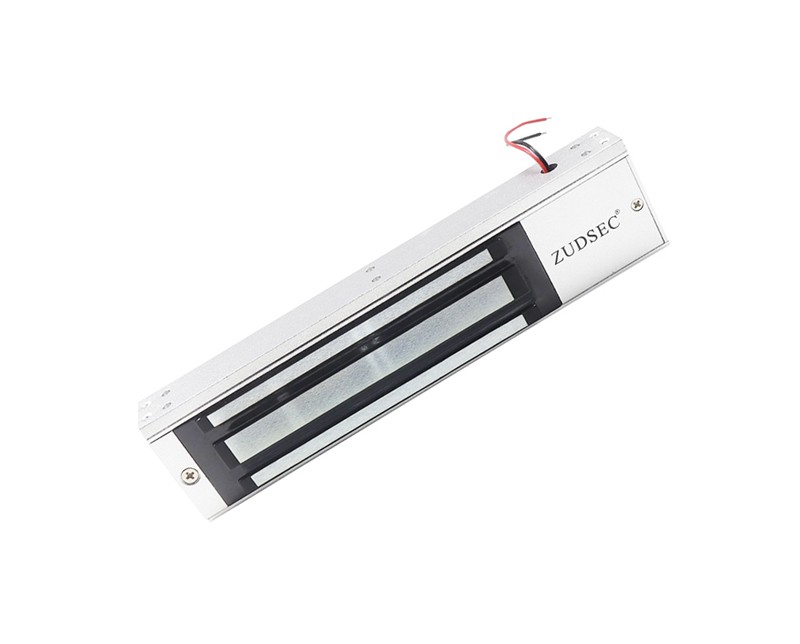

Electromagnetic lock -Single Door: 350kg(800Lbs), DC12V, or DC24, Suitable for: Wooden Door, glass door, wooden door, fireproof door, sliding door and metal door.
- Optional Lock Model No.:
* "S" series Lock Model: 5 wires With door state detection signal(NO/NC/COM) output function
- ZDL-350S: 350kgs(800Lbs)
* "T" Series Lock Model: 4 wires with delay setting(0-20 seconds adjustable)
- ZDL-350T: 350kgs(800Lbs)
* "ST" Series Lock Model: 5 wires with Signal output(NO/NC/COM) + Time Delay(0-20 seconds adjustable)
- ZDL-350ST: 350kgs(800Lbs)
* "W" Series Lock Model: with waterproof
- ZDL-350W: 350kgs(600Lbs)

- Input voltage:DC12V, or DC24 (can be customized)
- Holding Force: 350kg(800Lbs)
- With door state detection signal output function, for applications that require real-time monitoring of entrance door switch state occasions; NO /NC /COM, NO output when locking and unlocking the NC output
- With adjustable delay locked 0-20 seconds
- Bi-color LED to achieve opening and closing status display
- Fail-safe type (Power to lock): Power-on to lock, Power-off to open).
- Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
- Finishes for Shell: Anodized aluninum
- Finishes for Magnetic: Zinc
- Finishes for Armature: Zinc
