180Kgs Series Electromagnetic lock

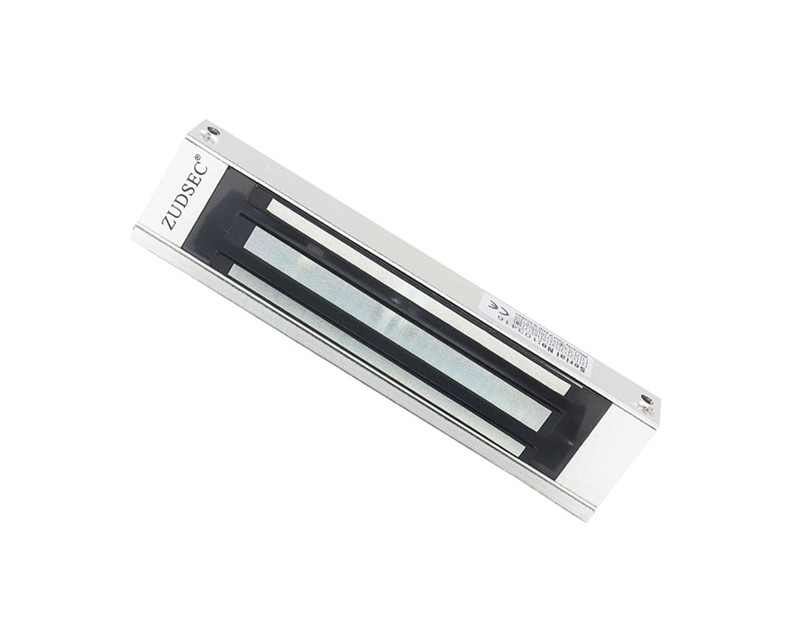

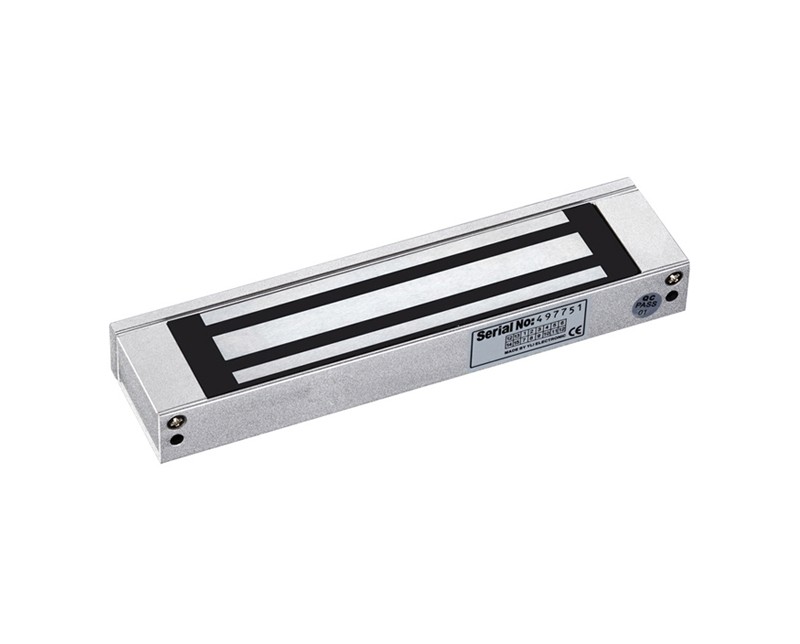

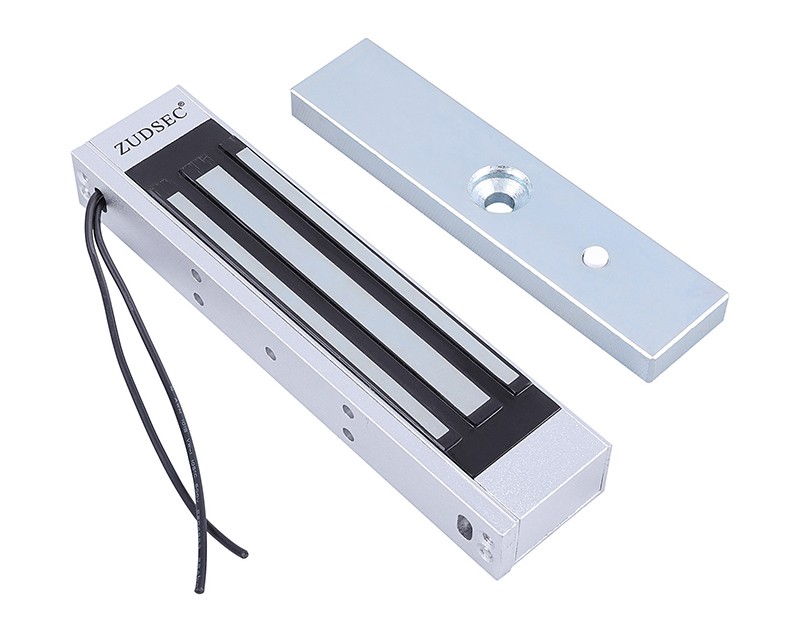

Multi-Angle View
Multi-Angle View

180KG Electromagnetic lock -Single Door

MODELZDL-180/180S

Facebook Twitter InLink instagram Youtube Skype
  • Input voltage:DC12V, or DC24(can be customized)

  • Holding Force: 180Kg(300Lbs)

  • Instant release, no hysteresis

  • No residual magnetism Designed

  • High Strength Material, Anodized Aluminum Housing.

  • Design without Mechanical Failure.

  • Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.

Electromagnetic lock -Single Door: 180Kgs(300Lbs), DC12V, or DC24, Suitable for: Wooden Door, Glass Door, Metal Door, Fire Proof Door.

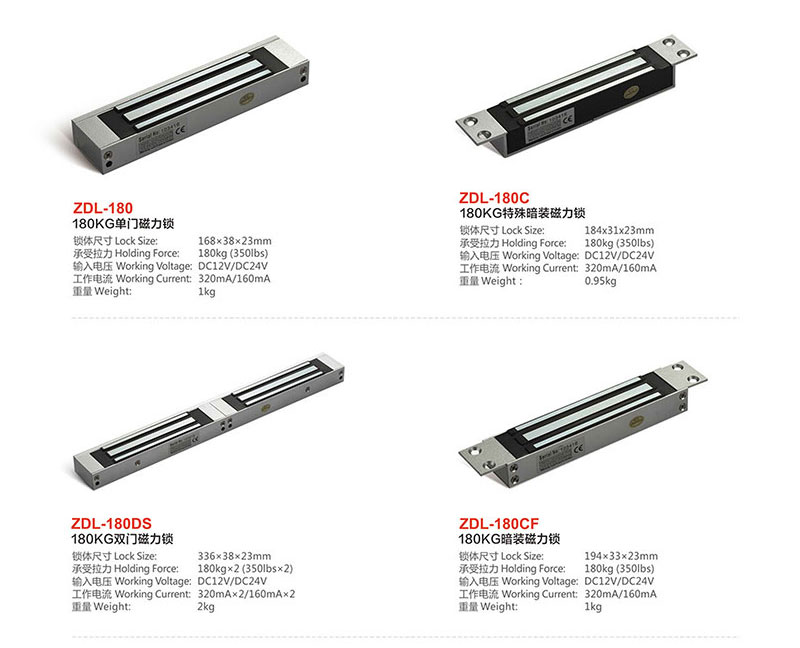

Optional Lock Model No.:  ZDL-180S: 180Kg(300Lbs)

* "S" series Lock Model: 4 wires With door state detection signal output function

   Note: Detect signal of door state: The limit of reed switch and dry contact is 0.5A/30VDC, don't overload(NO/COM)







- Holding Force: 180Kg(300Lbs)
- Fail-safe type: Power-on to lock, Power-off to open

Can be used with any access control system

- Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
- With door state detection signal output function, for applications that require real-time monitoring of entrance door switch state occasions

  • Voltage: 12V, or 24VDC(customizable)

  • Power consumption: 12V/320mA; 24V/250mA(customizable)

  • Surface mounted

  • Signal output: NO output when locking and unlocking the NC output ( for ZDL-180S)

  • Finishes for Shell: Anodized aluninum:
    - Finishes for Magnetic: Zinc
    - Finishes for Armature: Zinc

  • Surface Temp: ≤+20°C

  • Operating Temp: 10~+55°C(14-131F)

  • Suitable Humidity:  0~90%

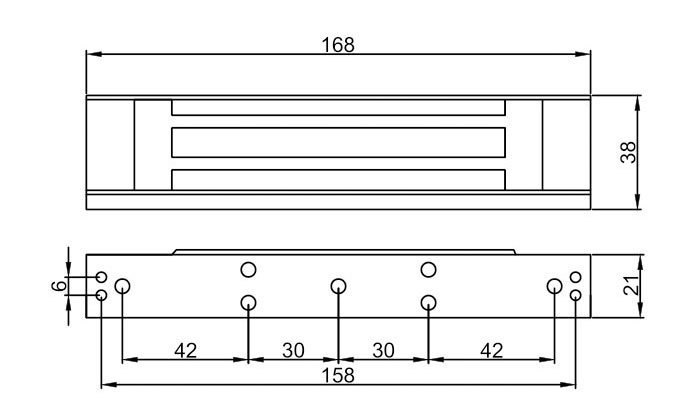

  • Product dimension:168×38×23mm(Body); 140×33×11mm(Magnet)

  • Packing size: 22.3*8*3cm, Weight: 0.95Kgs


180KG Electromagnetic lock -Single Door(图1)

Package Contents:

  • Standard Exporting Packing Box
