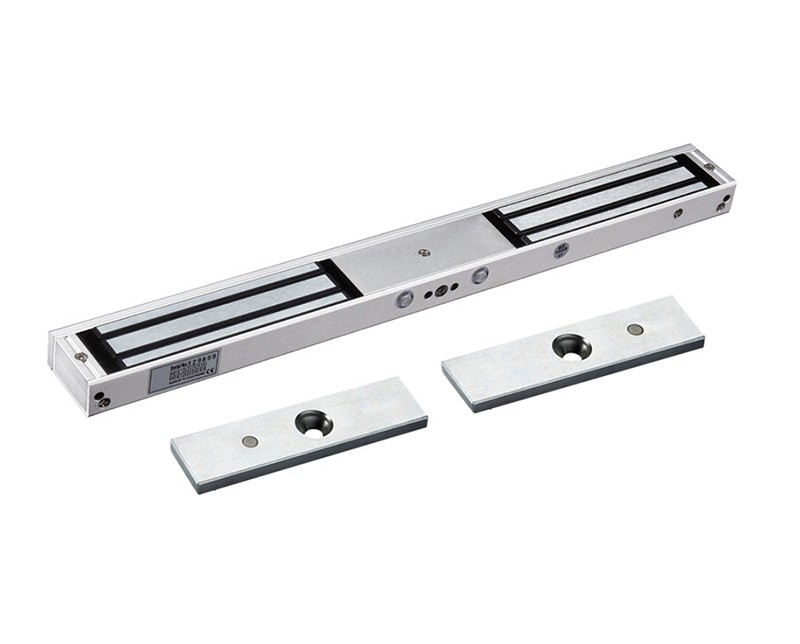

Electromagnetic lock -Double Door: ZDL-280D
Multi-Angle View

Electromagnetic lock -Double Door

MODELZDL-180D/280D/350D/500D

Facebook Twitter InLink instagram Youtube Skype
  • Input voltage:DC12V, or DC24(can be customized)

  • Instant release, no hysteresis

  • No residual magnetism Designed

  • High Strength Material, Anodized Aluminum Housing.

  • Design without Mechanical Failure.

  • Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.

  • Holding Force: 300Lbsx2 / 600Lbsx2 /800Lbsx2 / 1200Lbsx2


Electromagnetic lock -Double Door: 180Kgx2(300Lbsx2) / 280kgx2(600Lbsx2) / 350Kgx2(800Lbsx2) / 500Kgx2(1200Lbsx2) optional,DC12V、DC24, Suitable for: Wooden Door,Glass Door,Metal Door,Fire Proof Door.


- Optional Electromagnetic lock Model No.:

* Normal type Lock Model:

ZDL-180D: 180Kg(300Lbs) x 2
ZDL-280D: 280kg(600Lbs) x 2
ZDL-350D: 350Ks(800Lbs) x 2
ZDL-500D: 500Ks(1200Lbs) x 2


* "S" series Lock Model: 5 wires With door state detection signal(NO/NC/COM) output function

ZDL-180DS: 180Kg(300Lbs) x 2
ZDL-280DS: 280kg(600Lbs) x 2
ZDL-350DS: 350Ks(800Lbs) x 2
ZDL-500DS: 500Ks(1200Lbs) x 2


"T" Series Lock Model: 4 wires with delay setting(0-20 seconds adjustable)
ZDL-180DT: 180Kg(300Lbs) x 2
ZDL-280DT: 280kg(600Lbs) x 2
ZDL-350DT: 350Ks(800Lbs) x 2
ZDL-500DT: 500Ks(1200Lbs) x 2


* "ST" Series Lock Model: 5 wires with Signal output(NO/NC/COM) + Time Delay(0-20 seconds adjustable)
ZDL-180DST: 180Kg(300Lbs) x 2
ZDL-280DST: 280kg(600Lbs) x 2
ZDL-350DST: 350Ks(800Lbs) x 2
ZDL-500DST: 500Ks(1200Lbs) x 2



- Input voltage:DC12V、DC24
- Holding Force: 180Kgx2(300Lbsx2) / 280kgx2(600Lbsx2) / 350Kgx2(800Lbsx2) / 500Kgx2(1200Lbsx2)
- Fail-safe type (Power to lock): Power-on to lock, Power-off to open.
- Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
- Finishes for Shell: Anodized aluninum
- Finishes for Magnetic: Zinc
- Finishes for Armature: Zinc


Electromagnetic lock -Double Door(图1)


  • Voltage: 12V, or 24VDC(customizable)

  • Power consumption: 12V/320mA; 24V/250mA(customizable)

  • Delay time:0~9 seconds

  • Surface Temp: ≤+20°C

  • Operating Temp: 10~+55°C(14-131F)

  • Suitable Humidity:  0~90%

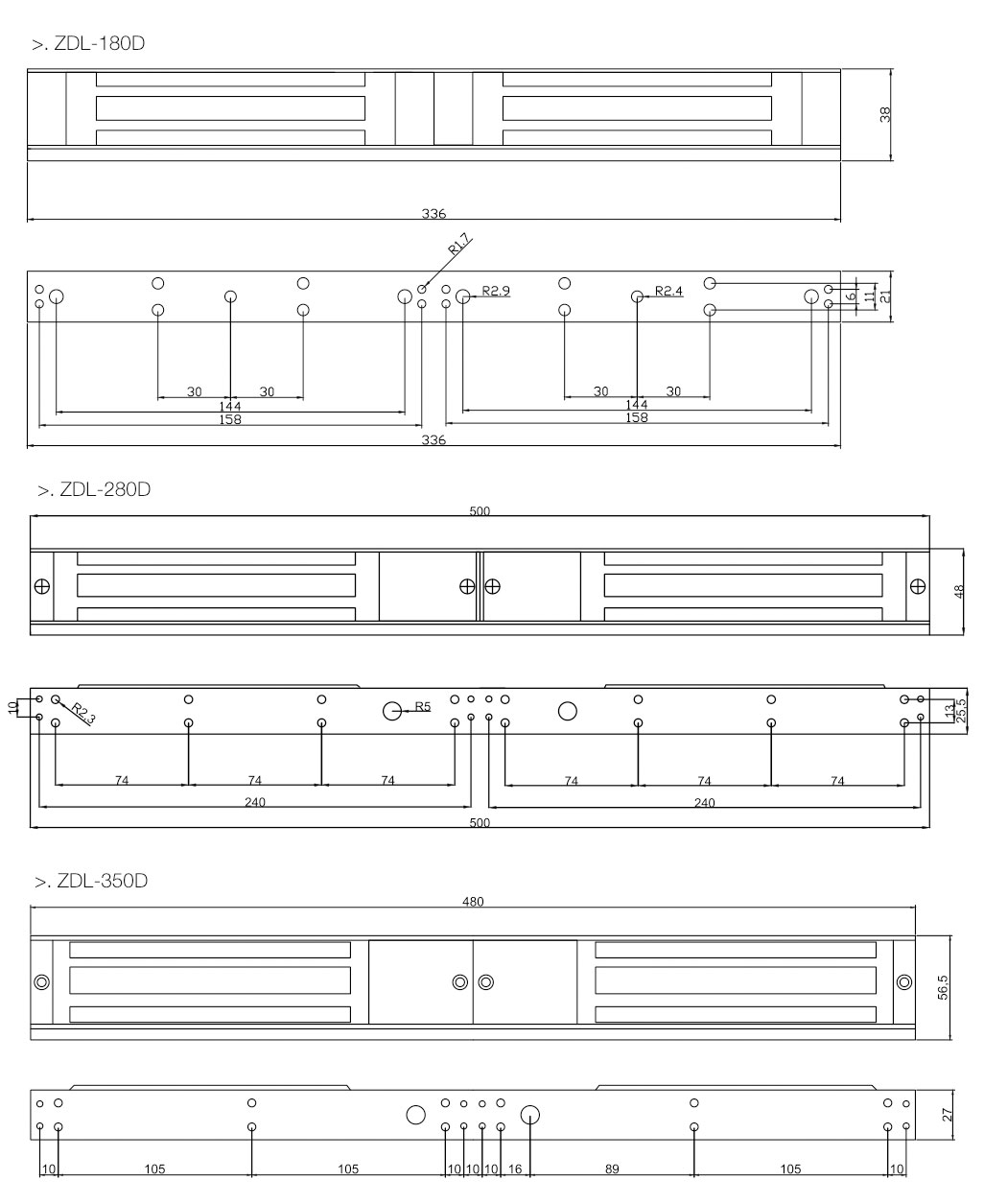

  • ZDL-180D:
    Dimension:336×38×23mm(Body); 140×33×11mm(Magnet)
    Packing: 45*8*3cm, Weight: 2Kgs
    ZDL-280D:
    Dimension:500×48×27mm(Body); 185×38×12.5mm(Magnet)
    Packing size: 52*6.5*6cm, Weight: 3.65Kgs
    ZDL-350D:
    Dimension:480×56×29mm(Body); 160×44×11mm(Magnet);
    Packing size: 52*6.5*7cm, Weight: 3.95Kgs


Electromagnetic lock -Double Door(图1)

Package Contents:

  • Standard Exporting Packing Box
