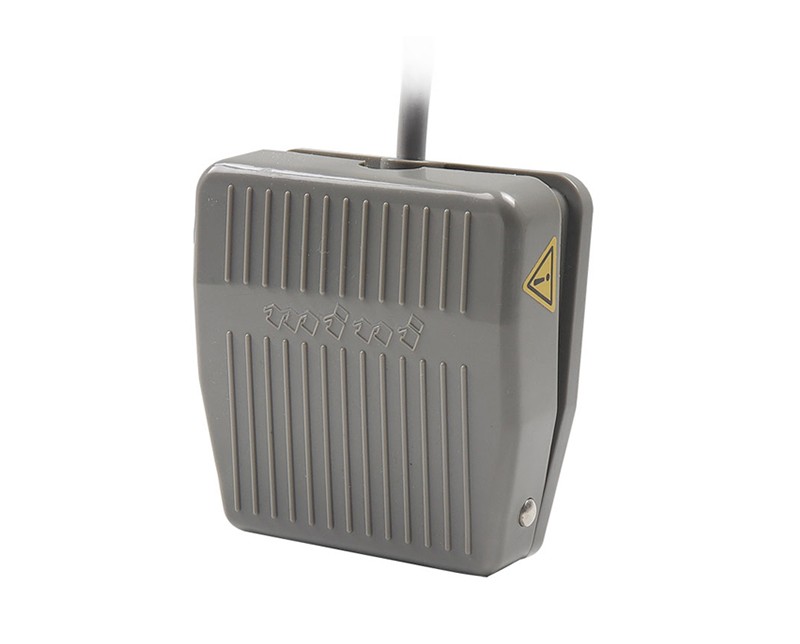

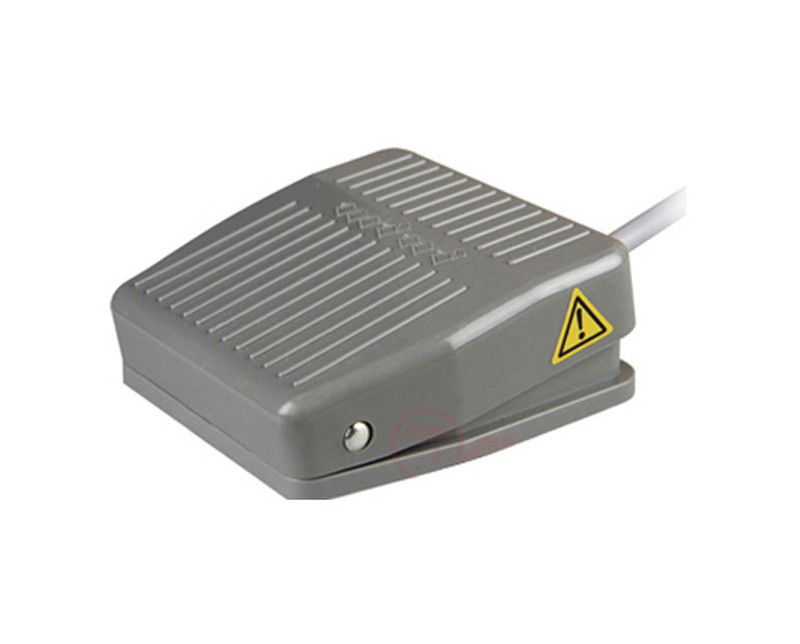

Pedal Foot Switch: ZDEB-114
Multi-Angle View

Pedal Foot Switch

MODELZDEB-114

Facebook Twitter InLink instagram Youtube Skype
  • Used to alarm for emergency

  • Output: NO/NC AutoReset

  • Material: Aluminum/Plastic/Iron

  • Power supply: 250V 10A

  • Mechanical Life: 1, 000, 000 Above


Pedal Switch:  Pedal Switch with Auto Reset, Used to trigger by you feet, MaterialNO/NC AutoReset, Widely used for control in industrial automation equipments, transport, pressing, medical treatment, test and etc.

- Widely used for control in industrial automation equipments, transport, pressing, medical treatment, test and etc.

- Application:
  * Variety of medical devices: Laser scalpel, B ultrasound, X-ray machines, medical beds, dental equipment, ophthalmology and optometry equipment;
  * Light Industry Machinery: Sewing machine, ironing equipment, shoes, textile machinery
  * Manufacturing equipment: Dispenser, welding machines, pipeline, electronics manufacturing equipment
  * Instrument measuring equipment: Projector mapping instrument, office equipment, calibration tester, airport baggage handling systems,
  * Warehousing, parcel sorting systems, parking lots.

Model NameZDEB-114
Rating10A 250VAC
Contact1C
Material of RindAluminum
Contact resistance25mΩ(Initial value)
Insulation resistance100mΩ(above)DC500V
Withstand voltage>=2000VAC
Mechanical life1,000,000 above
Operating temperature-20~+70ºC
Operating humidity<=85%
Protection degreeIP65
Product size83*80*30mm



Package Contents:

  • Standard Exporting Packing Box
