Wired Rolling Door Sensor/Shutter Sensor: ZDD-411MB
Multi-Angle View
Multi-Angle View
Multi-Angle View
Multi-Angle View
Multi-Angle View
Multi-Angle View

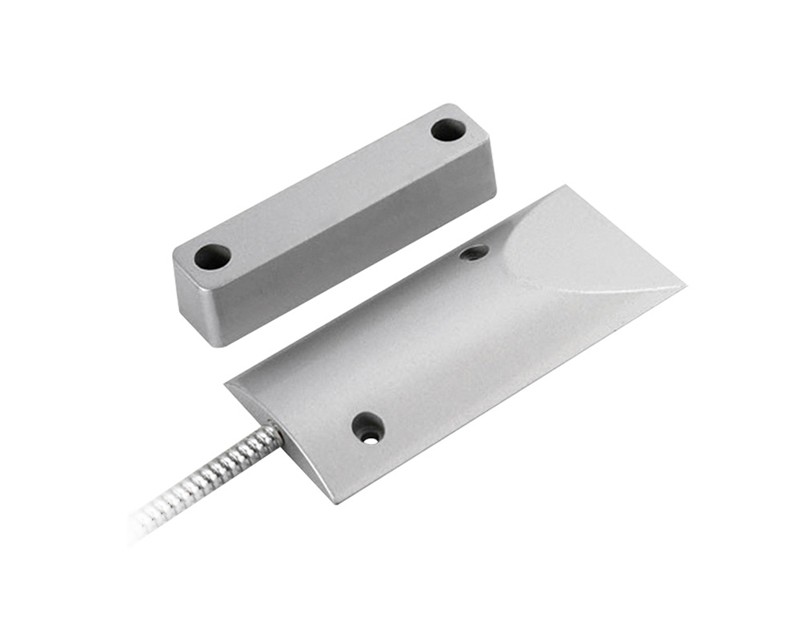

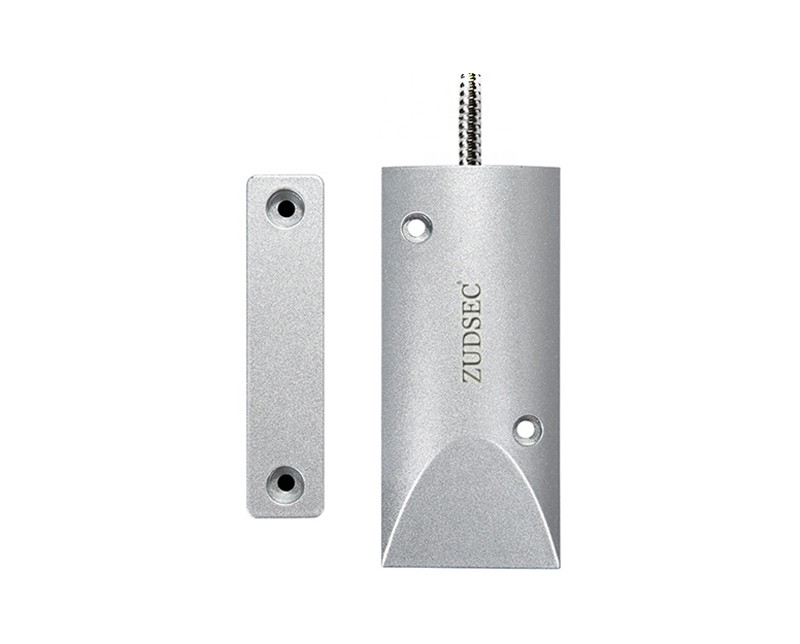

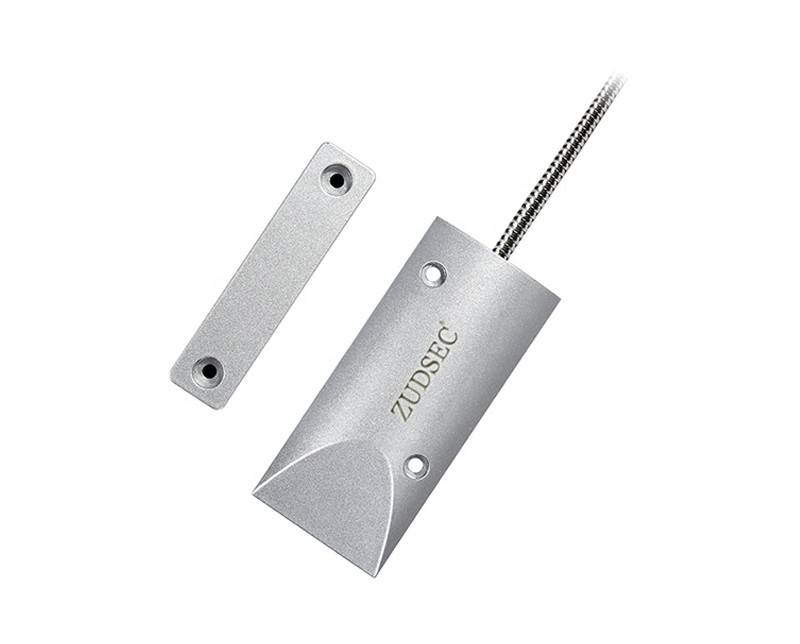

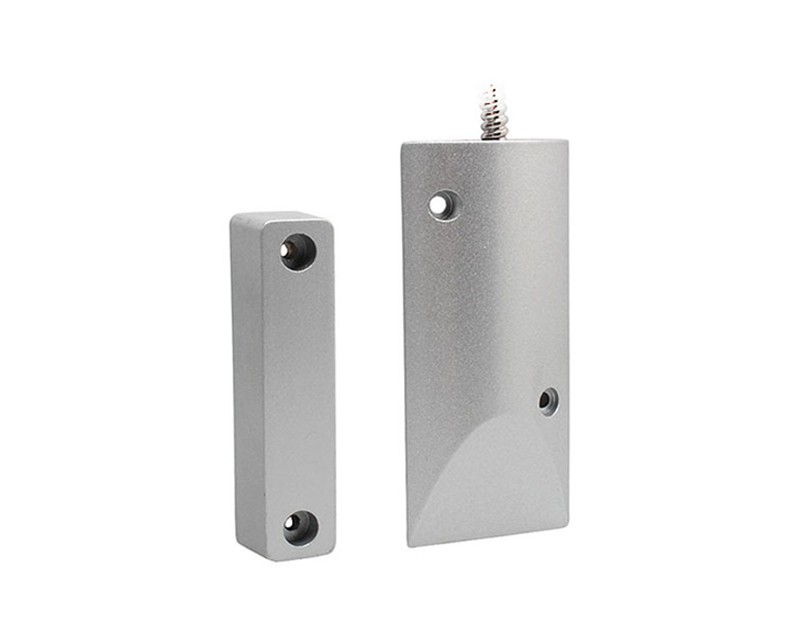

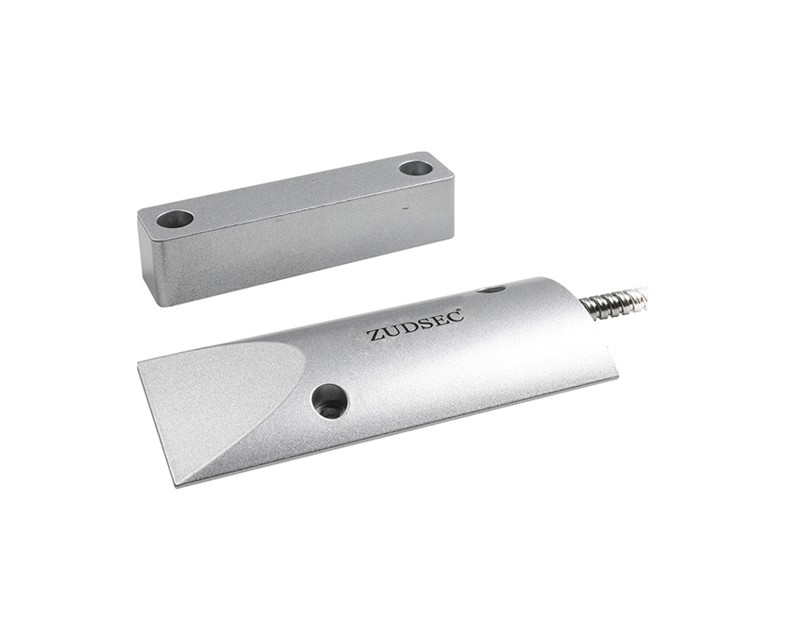

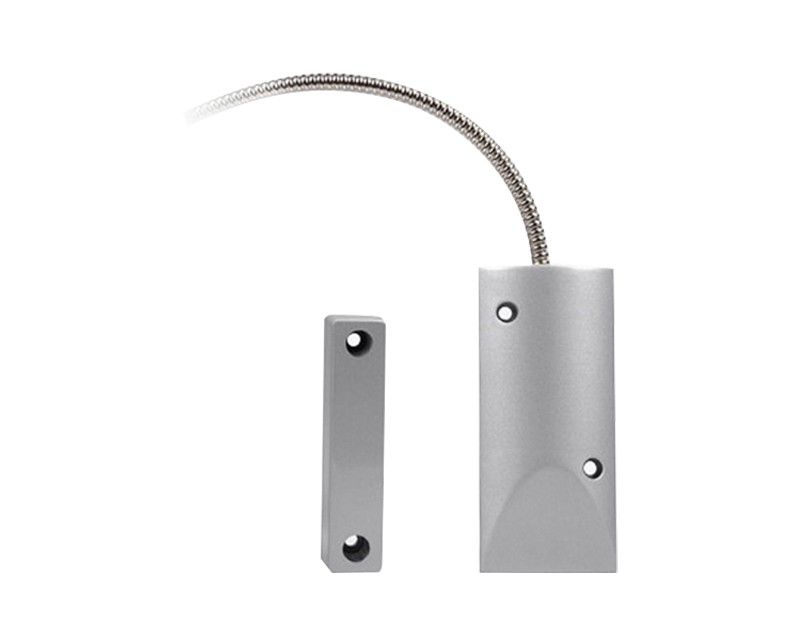

Wired Rolling Door Sensor/Shutter Sensor - Overhead Mount

MODELZDD-411MB

Facebook Twitter InLink instagram Youtube Skype
  • Be used to detect rolling door if it is illegal opened or moved

  • Connecting mode: N.C/ Wire

  • Operating distance(Gap): 50-70mm

  • Cable length: 380mm armored cable

  • Non-false alarm

  • Especially for Shutter door/Rolling door protection.


Wired Rolling Door Sensor/Shutter Sensor - Overhead Mount: Easy installation, power saved, non-false alarm. It is specially designed for rolling door to prevent any illegal access. Easy installation on the rolling door can send out the alarm to frighten the burglar and awake the owner. It is widely used for rolling and shutter door, garage or store etc.

- Be used to detect rolling door if it is illegal opened or moved, It is one of the ideal solutions for providing concealed protection for tight spaces, especially for Shutter door.
- Easy installation, power saved, non-false alarm

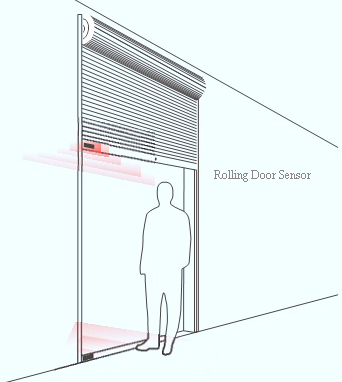

Wired Rolling Door Sensor/Shutter Sensor - Overhead Mount(图1)


  • Housing:   Metal(Alloy-Zn),

  • Color: Silver

  • Operating distance(Gap):  50-70mm

  • Output: N.C.; N.O. & Changeover available

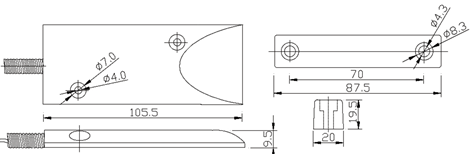

  • Dimension:    87.5*20*19.5mm (Magnet)
                          105.5*47*9.5mm(Switch)

  • Package:
    Inner packing:  1set/PE, 0.26kg/pc, each part packed individually
    Outer packing: 100sets/carton
    Gross Weight:  26Kgs/ctn


Wired Rolling Door Sensor/Shutter Sensor - Overhead Mount(图1)

Package Contents:

  • Standard Exporting Packing Box
