Wired Magnetic Door Sensor: ZDD-412MB
Multi-Angle View

Wired Magnetic Door Sensor -Surface Mount

MODELZDD-412MB

Facebook Twitter InLink instagram Youtube Skype
  • Detecting door gap by opening

  • Operating distance(Gap): 20~30mm

  • Connecting mode: N.C / Wire (N.O.& changeover  available)

  • Color: White/Brown

  • Cable length: 350mm

  • Installation: install outwardly


Wired Magnetic Door Sensor - Surface Mount: Detecting door gap by opening, Be used to detect door, window, or drawer if it is opened or moved. It is widely used for monitoring and security system, with high reliability, small size, easy installation and operation and strong flexibility.


- Detecting door gap by opening
- Connecting mode: N.C. (N.O.& changeover  available)
- Installation: install outwardly

  • Operating distance(Gap): 20~30mm

  • Housing:  ABS ,white

  • ,Connecting mode: N.C / Wire

  • Installation: install outwardly

  • Package:

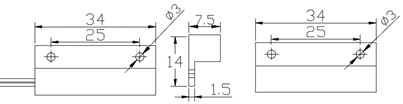

    Product Size: 34*14*1.5mm
    Inner packing:    20sets / PE
    Outer packing:   1000 sets / carton
    Gross Weight:    17.0KG
    Remarks:             4 screws including
                                   with double-sided tapes sticked on the bottom, 3M brand available


Wired Magnetic Door Sensor -Surface Mount(图1)


Package Contents:

  • Standard Exporting Packing Box
