Magnetic Contact: ZDD-413M
Multi-Angle View
Multi-Angle View

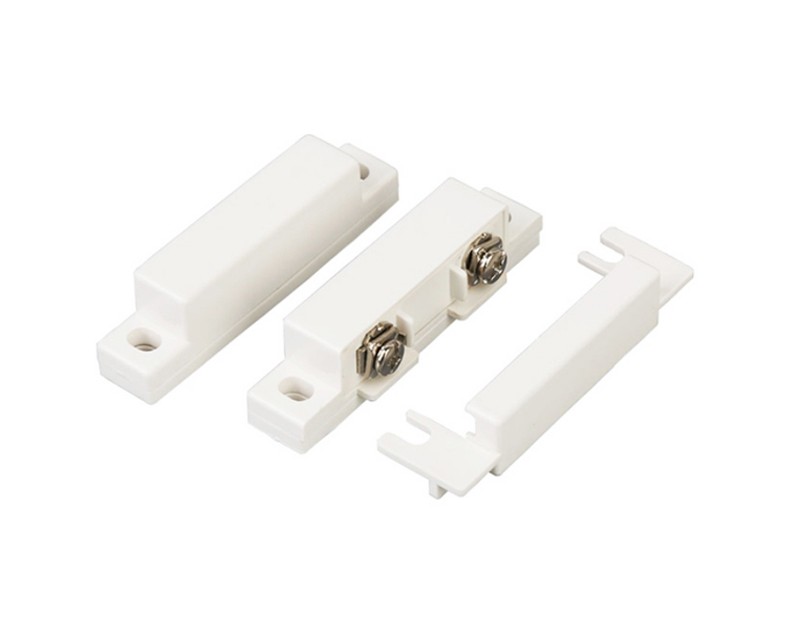

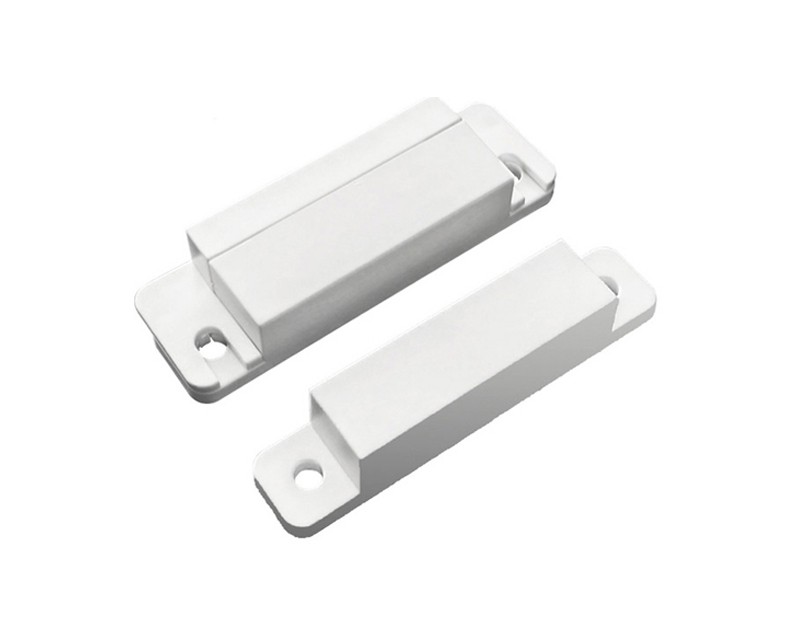

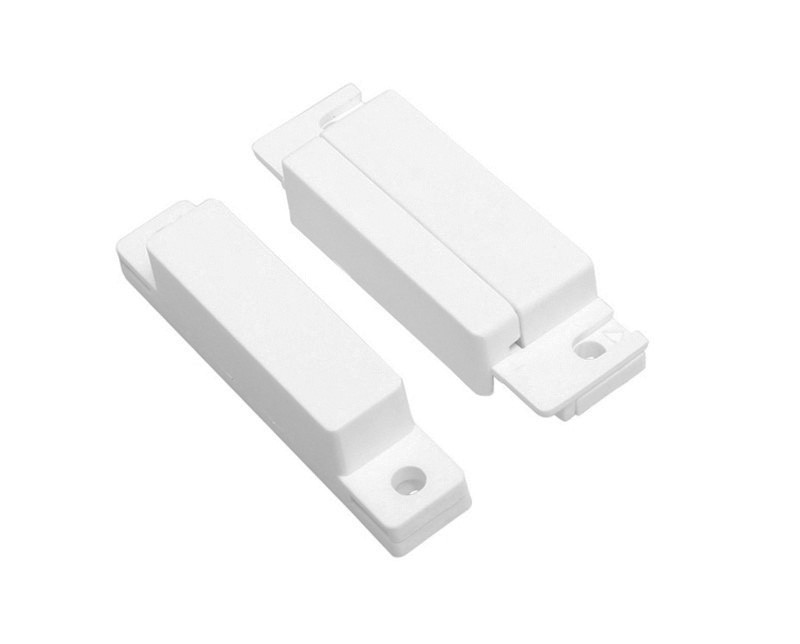

Wired Magnetic Door Sensor -Surface Mount

MODELZDD-413M

Facebook Twitter InLink instagram Youtube Skype
  • Detecting door gap by opening

  • Operating distance(Gap): 20~30mm

  • Connecting mode: N.C / Screw

  • Color: White/Brown

  • Installation: install outwardly

Wired Magnetic Door Sensor - Surface Mount: Detecting door gap by opening, Be used to detect door, window, or drawer if it is opened or moved. It is widely used for monitoring and security system, with high reliability, small size, easy installation and operation and strong flexibility.

- Detecting door gap by opening
- Connecting mode: N.C. (N.O.& changeover  available)
- Installation: install outwardly

  • Operating distance(Gap): 20~30mm

  • Housing:  ABS ,white

  • Installation: install outwardly

  • Package:

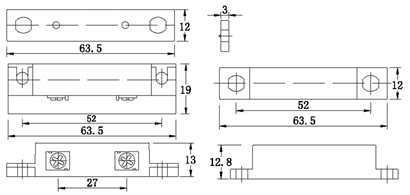

               Product Size:       63.5*19*13mm
               Inner packing:     10sets / PE
               Outer packing:     560 sets / carton
               Gross Weight:     20.0KG/ctn
               Remarks:             4 screws including


Wired Magnetic Door Sensor -Surface Mount(图1)


Package Contents:

  • Standard Exporting Packing Box
