TCP/IP Access Control Panel: ZD8001-TCP/IP
With Access Power Supply

TCP/IP Access Control Panel -1 Door

MODELZD8001 -TCP/IP

Facebook Twitter InLink instagram Youtube Skype
  • Single Door Control Panel

  • Capable to handle1 doors/2 readers

  • TCP/IP Communication

  • Real time supervision

  • Superior mass memory storage technology

TCP/IP Access Control Panel:  ZUDSEC ZD8000 Series Professional Smart Card Access Controller adopts 32 bit CPU and international advanced Hi-Speed operation circuit level and superior mass memory storage technology; More mature character of the 13th-generation products, plenty of project cases experience, make you at ease and safe; User friendly multi-language software without any professional knowledge, faster installation, Open data communication protocols, make the integrate system faster; enjoy top and more thoughtful technical support.


ZUDSEC's access control management System integrates and optimizes the automated control of access for a variety of client demands in the form of applications such as Premises Access Control, Visitor's Management etc.

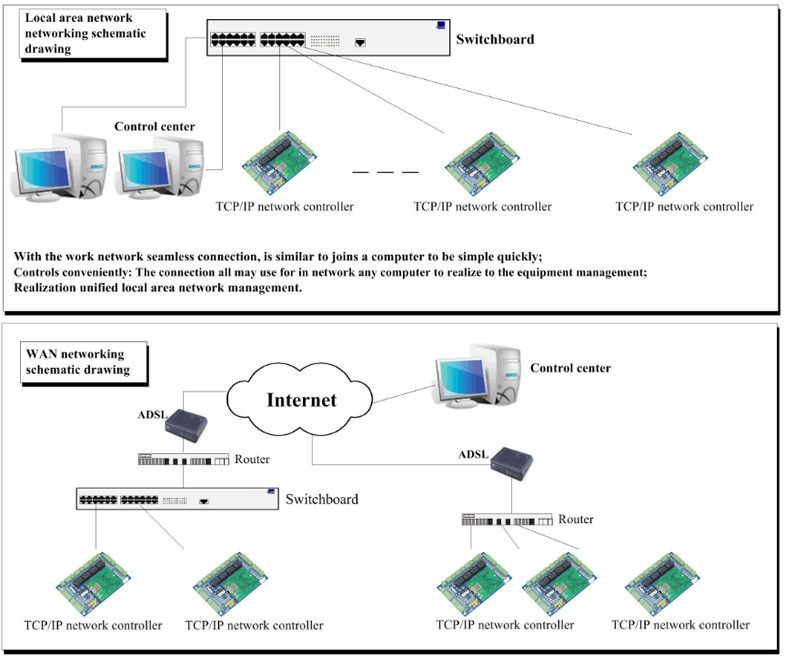

TCP/IP Access Control Panel -1 Door(图1)


Conventional Function: offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map etc.
- Professional function: for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.
- All-in-one-card management system: nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm manage.

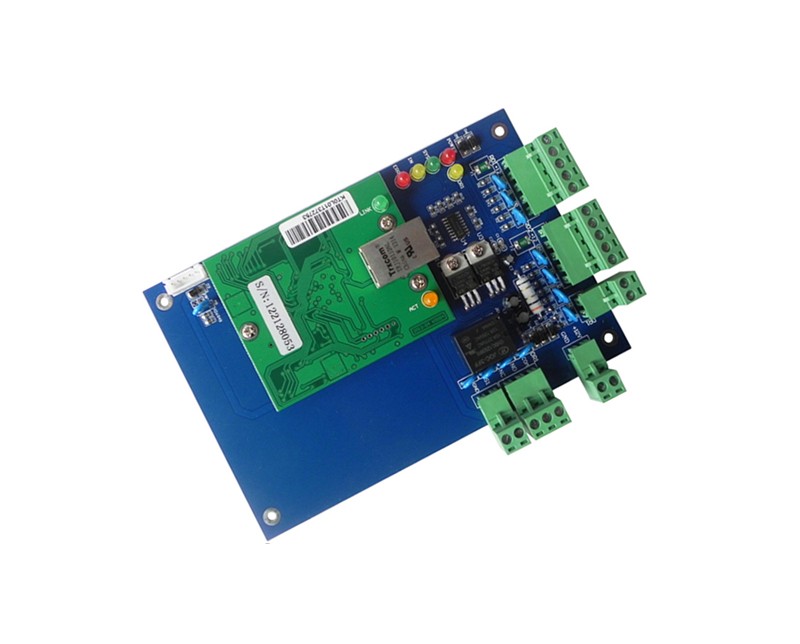

TCP/IP Access Control Panel -1 Door(图1)


TCP/IP Access Control Panel -1 Door(图1)



Parameter

Single Door Control Panel

  2-Door Control Panel

4-Door Control Panel

Model

ZD8001-TCP/IP

ZD8002-TCP/IP

ZD8004-TCP/IP

Communication

TCP/IP 10M/100M adaptive

TCP/IP 10M/100M adaptive

TCP/IP 10M/100M adaptive

Door Controled

one door

two doors

four doors

QTY of Relay

1pc

2pcs

4pcs

QTY of Reader

2 readers

4 readers

4 pcs

DescriptionControl 1 door, get in and out door by swiping card, or get in by swiping card and get out door by buttonControl 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by buttonControl 4 doors, get in the door by swiping card, and get out door by button
Size of PCB board

160mm *106mm

160mm *106mm

218mm *106mm

Power Supply

12VDC 4-7A

Power Consumption of Circuit Board

Less than 100mA

Input Format of ReaderWiegand 26 (All card reader with compatible protocol, such as Motorola 、 HID 、 EM 、、 Mifare one etc)
Door opening time extending setting

1-6000 seconds(adjustable)

Max QTY of controller

No limit

Qty of users

20,000 Users

Qty of Event Buffers offline)

100,000 event buffers

Power interruption protection measure

High Speed Memory, Records never lose

Max Distance from Reader to Controller

100m (suggestion distance 80m)

Max Distance between Controllers

Depends on net coverage area

Alarm for long time door open, ilegal break in, intimidate

Yes

Fire and alarm linkageIf no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm
Complsive open and close door at long time

Yes

Open door in remote distance

Yes

Inter block

Yes

Yes

Anti pass back and tail

Yes

Multi-card open door

Yes

Open long time at specified time

Yes

Electronic map

Yes

Urgency locking

Yes

First card unlocking

Yes

Unlock based on internal and external validation

Yes

Keypad(card+password, supper password)

Yes



*   Access Panel:
Packing box: 21.14.5*3.5cm;   Weight:  0.3kg /pc


*   Access Power Supply:    Packing size: 40.5*28*7.6CM;   Weight: 3.5Kg/pc


Package Contents:

  • Standard Exporting Packing Box
