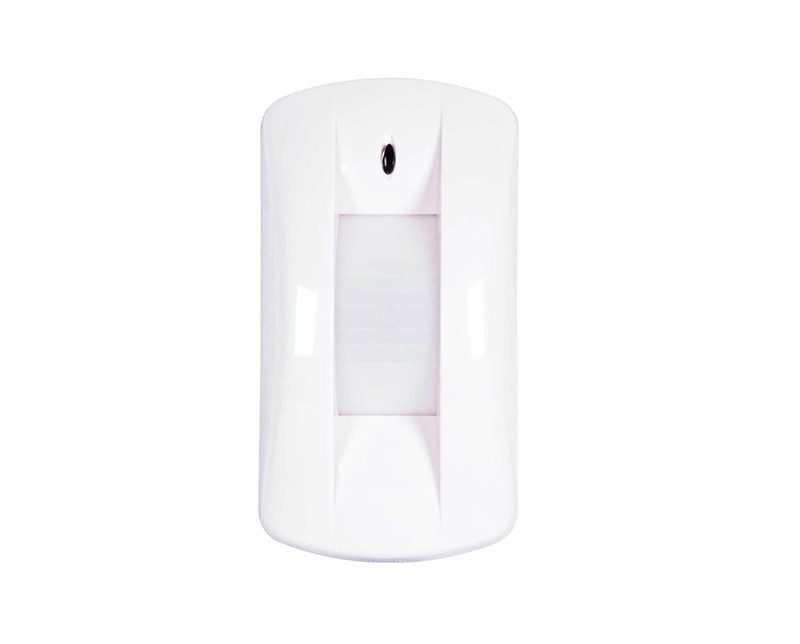

Mini Curtain PIR Detector: ZDD-103PIR
Optional Model: ZDD-113PIR

Wired Mini Curtain PIR Motion Detector

MODELZDD-103PIR

Facebook Twitter InLink instagram Youtube Skype
  • Detecting human's motion and boy's temperature in a fan-sharp area.
  • Double temperature compensation
  • With tamper switch
  • Fresnel lens
  • Pulse count adjustment
  • Wall / Ceiling mounted installation.


Wired Mini Curtain PIR Motion Detector: This ZDD-103PIR can quickly react to the intrusion of human body and cause alarm, Detecting human's motion and boy's temperature in a fan-sharp area, ZDD-103PIR is Curtain Passive Infrared Detector with small sizes, which features it's exquisite and styling design with wall mounted and ceiling mounted optional. It adopts advanced superhigh detetion ability and anti-false alarm ability, and MCU processing ensuring the reliability from design basis. It's widely used for safety defending at terrace, window, door, passageway etc.


Optional Model: ZDD-113PIR

Detecting human's motion and boy's temperature in a fan-sharp area.
MCU control, resist false alarm efficiently

Double temperature compensation

With tamper switch

Fresnel lens

Pulse count adjustment

Anti-white light interference & Anti RF interference(20V/m-1GHz)

Alarm output N.C. or N.O.

Alarm time optional (3s or 30s)

Adopted SMT technology with high stability.
Wall / Ceiling mounted installation.


  • Input Voltage: DC 9~16V

  • Operating Current: ≤18mA (DC 12V )

  • Detecting range: 9M(wall mounted); 6m (Ceiling Mounted 3.6 meter Height)

  • Detecting Angle: 15°

  • Self-testing tiime: 60s

  • Alarm time: 3s/30s optional

  • Alarm indication: Red LED

  • Sensor: Double element pyroelectric infrared sensor

  • Anti RF interference: 10MHz~1GHz 20v/m

  • Alarm output N.C. or N.O.

  • Tamper output: N.C.(DC28V 100mA)

  • Operating Temperature:-10℃~+50℃

  • Installation Method: Ceiling or Wall Mounted

  • Dimension: 85x40x40mm; Weight: 60g/pc


Package Contents:

  • Standard Exporting Packing Box
