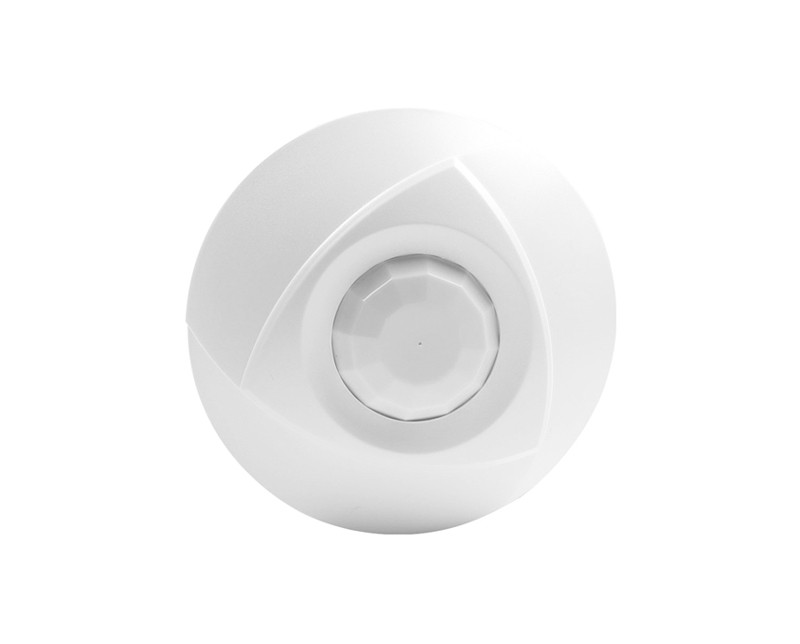

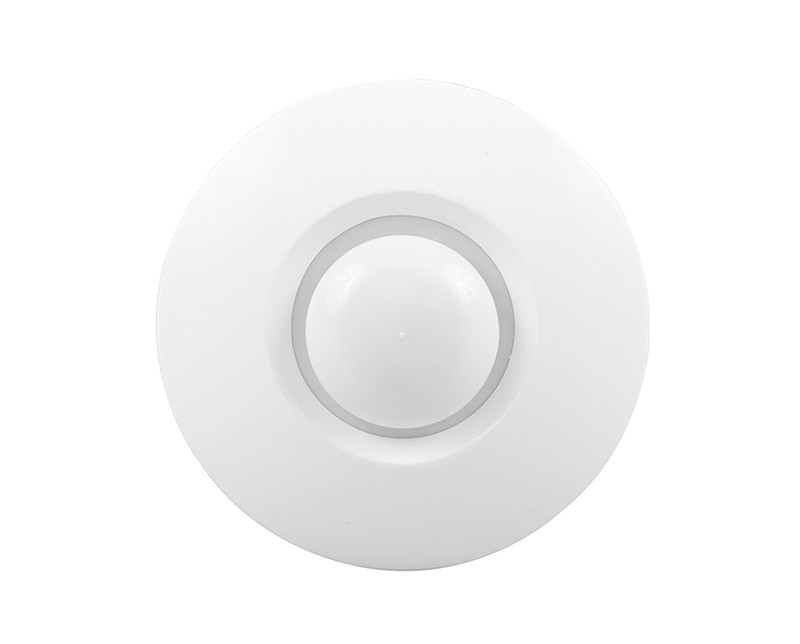

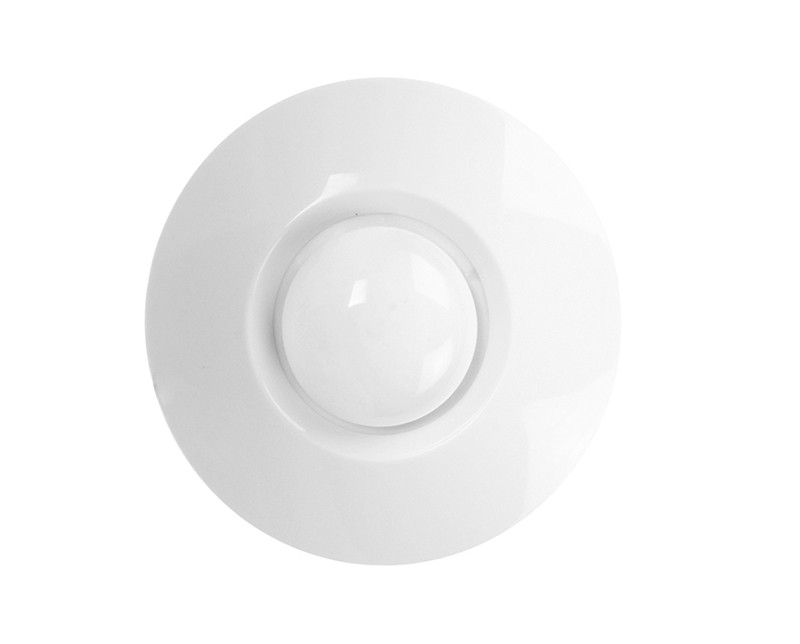

Wired Ceiling mount PIR motion detector: 360°Ceiling Mount PIR, Detecting human in a wild angle area by installed on ceiling.  It has adopted advanced technology in signal processing and provided superhigh detection ability and anti- error alarm. The detector will detect human movement automatically when intruder pass through the detected area, and it will send out alarm signal to alarm host that there is movement(detecting human being body infrared heat). The product is suitable for the safety of residential house, villas, factories, markets, warehouses, office building etc.

Optonal Model: ZDD-110PIR

- Detecting human in a wild angle area by installed on ceiling. Excellent catch performance and very good false alarm immunity, Temperature compensation
- MCU Processing, Pulse Duration Adjustable
- High Density SMT Design, Anti RF interference(20V/m-1GHz), Anti white light interference.
- Tamper switch: it will send alarm signal if cover is disassembled
- Auto Temperature Compensation: Digital processing for improved detection and False alarm protection
- Ceilling mounted installation

• Power supply: DC9V~16V

• Detecting angle: 360°

• Detecting range: diameter 6m

• Working temperature: -10 ℃ -50 ℃, Relative humidity: ≤ 95%

• Alarm output: Relay output

• Dimension：100mm(Dia)*32mm(H) Packing box: 11.2*11.2*4cm: Weight: 120g/pc

Package Contents:

• Standard Exporting Packing Box
