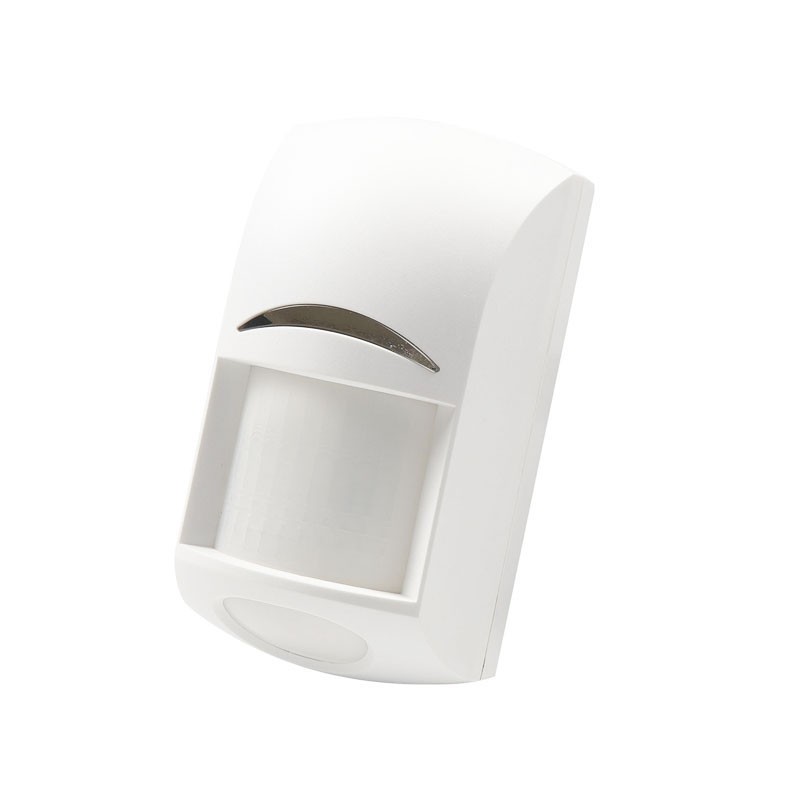

Wired Wide Angle PIR Motion Detector: Detecting human's motion and body's temperature in a wild angle area. It has adopted advanced technology in signal processing and provided superhigh detection ability and anti- error alarm, Compounding of high precision passive infrared detector and logical digital circuit design. The detector will detect human movement automatically when intruder pass through the detected area, and it will send out alarm signal to alarm host that there is movement. All-pervading indoor wall hanging style infrared detector is suitable for the safety of residential house, villas, factories, markets, warehouses, office building etc. It is fashioned and exquisite in appearance with fluent lines. It is fit for any decorative environment.

- Detecting human's motion and body's temperature in a wild angle area
- Tamper switch: it will send alarm signal if cover is disassembled
- Fireproof ABS housing
- LED ON/OFF optional
- Automatic temperature compensation
- SMT adopted, anti-RFI & anti-EMI
- Pulse count optional
- Alarm output N.C./ N.O. optional

• Operating voltage: DC 9-16V
  consumption current: less than 18mA(DC12V)

• Operating temp.: -10 to +50°

• Installation mode: wall mounted; installation height: about 2.2m

• Detecting distance: 12m

• Detecting angle: 110°

• Alarm output: N.O./ N.C. optional; anti-dismantle switch: N.C.

• Dimension: 89*52.5*38.5mm; Packing box: 12.5*7.7*5.3cm ; Weight: 0.12Kg/pc

Package Contents:

• Standard Exporting Packing Box
