Wireless  PIR Detector: ZDD-112PIR

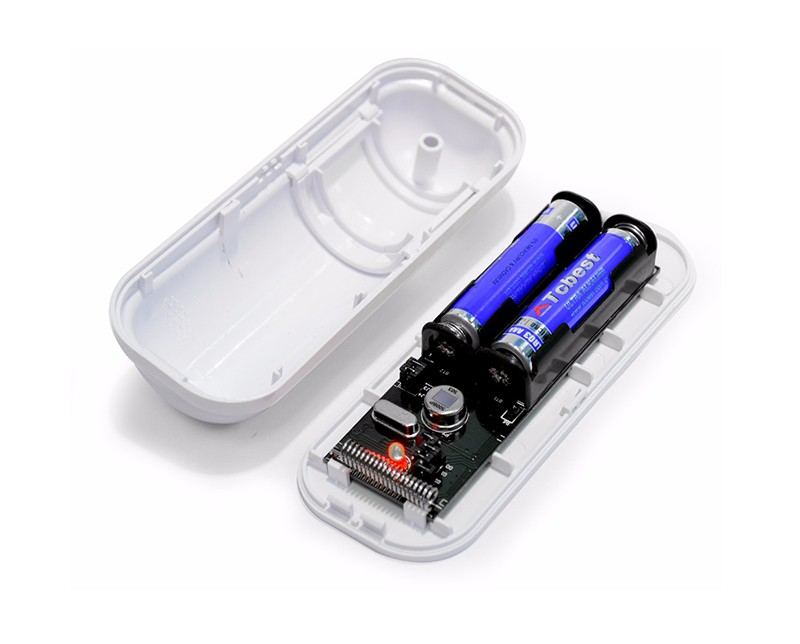

Inner Structure

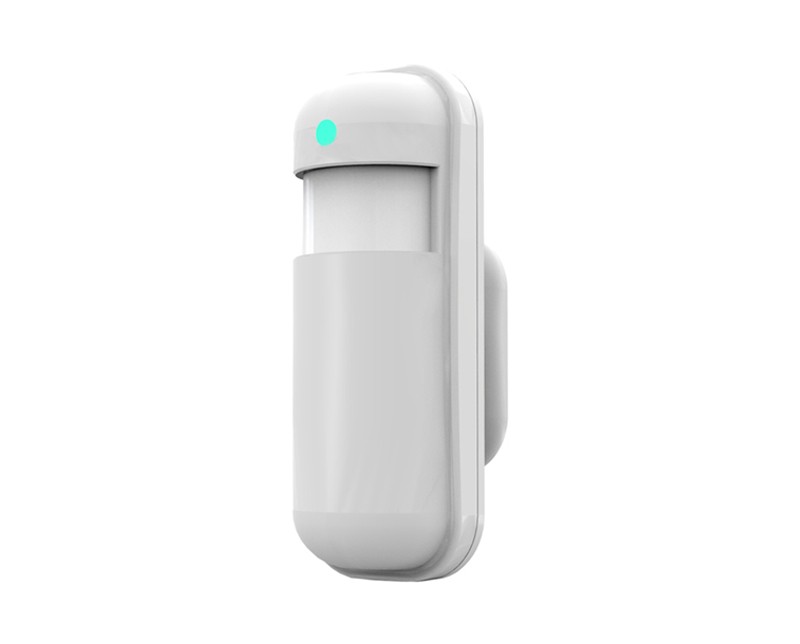

Multi-Angle View

Wireless Wide Angle PIR Motion Detector

MODELZDD-112PIR

Facebook Twitter InLink instagram Youtube Skype
  • Detecting human's motion and body's temperature in a wild angle area

  • Wireless transmitting digital signal

  • Low power indication

  • Automatic temperature compensation

  • Learning Coding

Wireless Mini Wide Angle PIR Motion Detector: This ZDD-112PIR can quickly react to the intrusion of human body and cause alarm, Detecting human's motion and boy's temperature in   a wild angle area, ZDD-112PIR is Wide Angle Infrared Detector with small sizes, which features it's exquisite and styling design with wall mounted. It adopts advanced superhigh detetion ability and anti-false alarm ability, and MCU processing ensuring the reliability from design basis.The product is suitable for the safety of residential house, villas, factories, markets, warehouses, office building etc.

- Detecting human's motion and body's temperature in a wild angle area
- Wireless transmitting digital signal
- Low power indication
- ASIC adopted
- Automatic temperature compensation
- Low power consumption, long battery life
- SMT adopted, anti-RFI & anti-EMI
- Learning Coding
- Can be used in conjunction with standard burglar alarm systems.

  • Operating voltage: 3V AAA*2 battery; Standby current: less than 15mA; Alarm current: less than 25mA

  • Operating temp. :-10 to +50°

  • Installation mode: wall mounted; Installation height: about 2m
    Detecting distance: 12m
    Detecting angle: 110°

  • Working frequency: 315MHz/433MHz
    Transmitting distance: more than 200m (in the open area)

  • Dimension: 105*40*26mm; Packing box: 11*6*3.8cm; Weight: 150g/pc


Package Contents:

  • Standard Exporting Packing Box
