IR detector: ABH Series

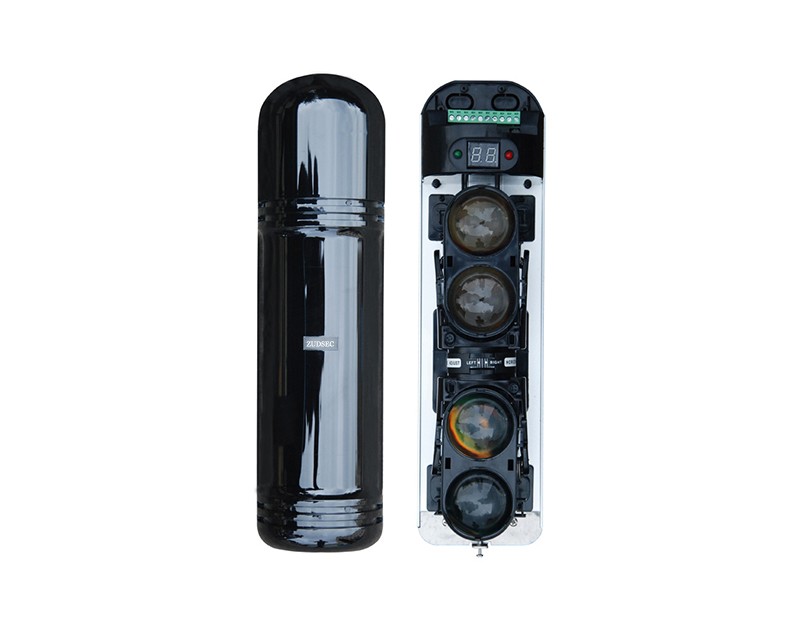

Inner Structure

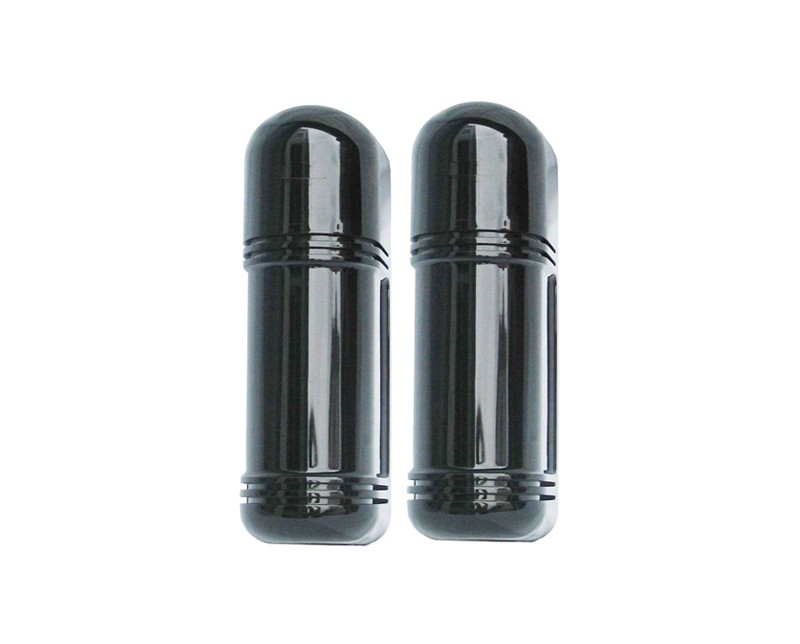

Active Photoelectric Beam Detector -4 Beams

MODELABH

Facebook Twitter InLink instagram Youtube Skype
  • Excellent anti-interferential ability

  • ABH Series: 4 beams

  • Protection distance available: 50m, 100m, 150m, 200m, 250m

  • Waterproof design: IP55

  • For perimeter protection solution

  • Quick and easy installation.


Wired Active Photoelectric Beam Detector: This is high-tech Perimeter Intrusion Detection Systems to protect some area from intruder, designed for a wide variety of outdoor and indoor residential, commercial and industrial applications. To detect intrusion and triggers an alarm when an intruder disturbs the detection field. It provides ideal cost-effective solutions for medium-range applications such as perimeter protection of buildings, fences, warehouses, factories, parking lots, gardens, walls, etc, especially inner balcony to substitute metal structure. It will alarm at once and dial the pre-set alarm numbers when the emitting bundle is shut off by the object.


Working principle: Several un-visible defense bundles from the remitters forms protection network, Alarm is triggered to send the sign to the control panel when both beams are shutoff at one time. Dual-beam design provides the redundancy needed to prevent false alarms from objects (flying birds, insects, falling leaves, etc.) that may intersect one of the IR beams. The alarm output is activated only when both beams are interrupted.


* Protection distance available: 50m, 100m, 150m, 200m, 250m

- Dormant defense and protection baluster makes the intruder found in no any sense.
- Complete defense ability:  The intruder cannot jump over or crawl to evade the infrared bundle.
- Excellent anti-interferential ability:  No false report when inspects, Dual-beam design prevents false alarms from flying birds, insects, falling leaves, etc
- Function of damage-resistance: It will send alarm signal once the power or cable are cut.
- Waterproof design: IP55, Outdoor double beam gain self-regulation, adaptable to terrible weather such as rain, fog and snow weather;  Lightning proof circuit design .
- With tamper switch, Beam response time adjustment.
- Special filter lens and circuit, anti-strong light jamming
- Optical lens、faster, more convenient and more exact adjustment
- High anti RFI/EMI



ModelABH-50ABH-100ABH-150ABH-200ABH-250
Outdoor detection distance50m100m150m200m250m
Indoor detection distance150m300m450m600m750m
Number of beams4
Response  speed35~700m/s
Alarm output-normalNormally close and normally   open(NC&NO)contact capacity  AV/DC  30V/0.5mA
Alarm output-busRS-485
Working voltageDC 8~36V;AC 8~20V
Working current60mA65mA65mA65mA70mA
Long-life mode40mA32mA32mA32mA40mA
Environmenttemperature:-25℃~55℃  ;     humidity:5%~95% (RH)
Tamper outputNormally close(NC)   contact   capacity AV/DC   24V/0.5mA
Adjust angleHorizontal:180°(±90°) ;     Vertical:±10°
Case materialABS Resin
Gross Weight2.9kg/pair, 12kgs/ctn
PackingPacking box: 15*23.5*41cm;  Carton Size: 64*44*26.5cm(4 pairs/ctn)


Package Contents:

  • Standard Exporting Packing Box
