Uninterrupted Power Supply Controller: ZDAP-803B

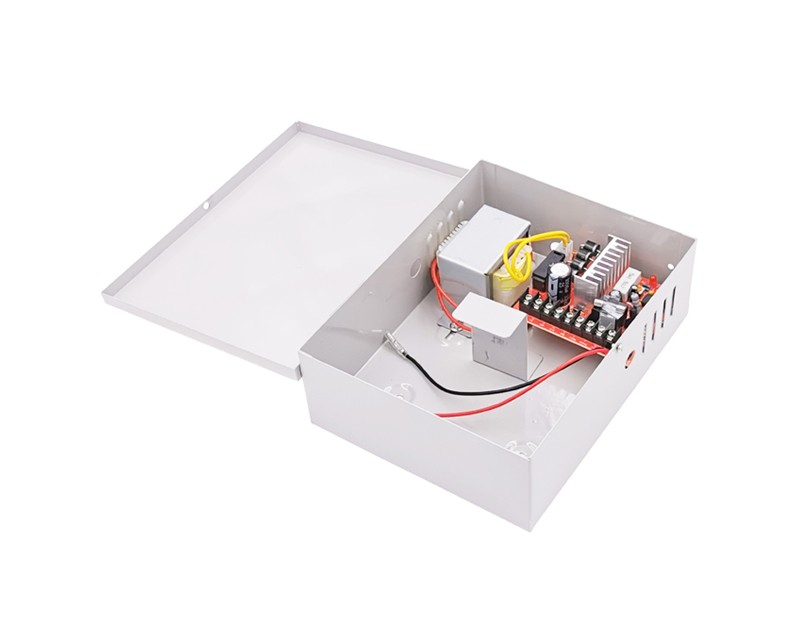

Inner Structure

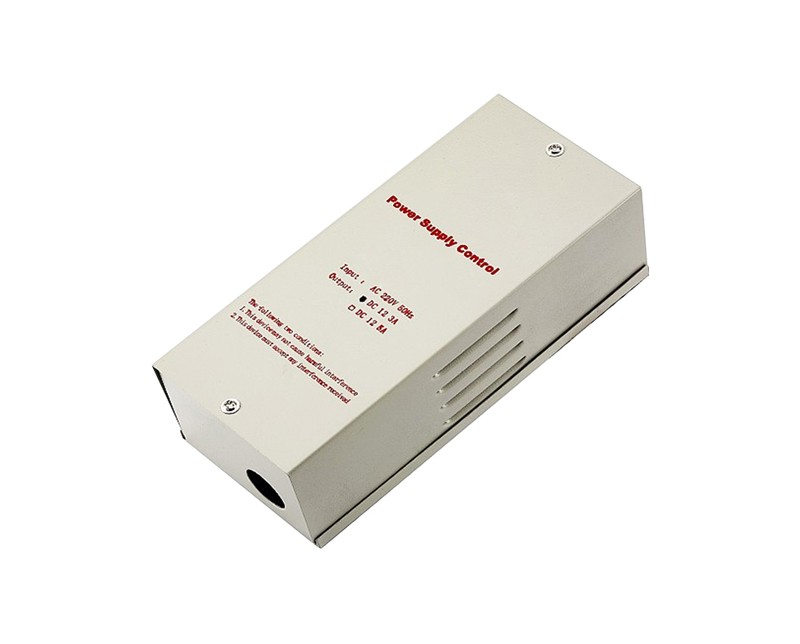

Power Supply Controller: ZDAP-803

Uninterrupted Power Supply Controller

MODELZDAP-803B/805B

Facebook Twitter InLink instagram Youtube Skype
  • With Regulatory function with delay, 3A or 5A transformer.

  • Easy for install, convenient for connect, Dampproof design,

  • Can connect NO, NC electric lock.

  • Produced with High Quality Element.

  • Build-in Backup Charger for Uninterruptible.

  • Supply Power for 7 hours uninterruptible.

  • Special Design, Suitable for Access Control.

Uninterrupted Power Supply Controller: 220/110VAC input,12VDC 3A /5A output, with Regulatory function with delay, Easy for install, convenient for connect, Dampproof design; Can connect NO/NC electric lock; Suitable for Access Control system.


- Optional Model:

* Uninterrupted Power Supply Controller: ZDAP-803B(DC12V, 3A) /ZDAP-805B(DC12V, 5A)

Power Supply Controller without backup battery: ZDAP-803(DC12V, 3A) /ZDAP-805(DC12V, 5A)



 - Designate for building talkbacks and all kinds of access controllers, especially for kinds of EM locks and bolts
- Output: DC12V 3A; DC12V 5A
- Control electric locks or bolts directly
- Reduce the load of access controller
- Save circuit wire works, lower potential trouble
- Have output NC/NO, control all kinds of electric locks
-  Has delay control circuit
- Unlock delay time: 0~10s
- Auto protection

  • Input: AC 220V or 110V 50Hz

  • Unlock delay time: 0~10s

  • Have output NC/NO, control all kinds of electric locks

  • Output: DC 12V 3A; DC 12V 5A

  • Uninterrupted Power Supply: ZDP-803B/805B  can setup storage battery, for working normally when power cut, Standard 7AH storage battery.

  • Packing size:ZDAP-803/805: 19*8.5*7.5CM; Weight: 1.35kg
                            ZDAP-803B/805B: 23*18.5*7.5CM; Weight: 1.6Kg


Package Contents:

  • Standard Exporting Packing Box
