Power Supply Controller: ZDAP-K80

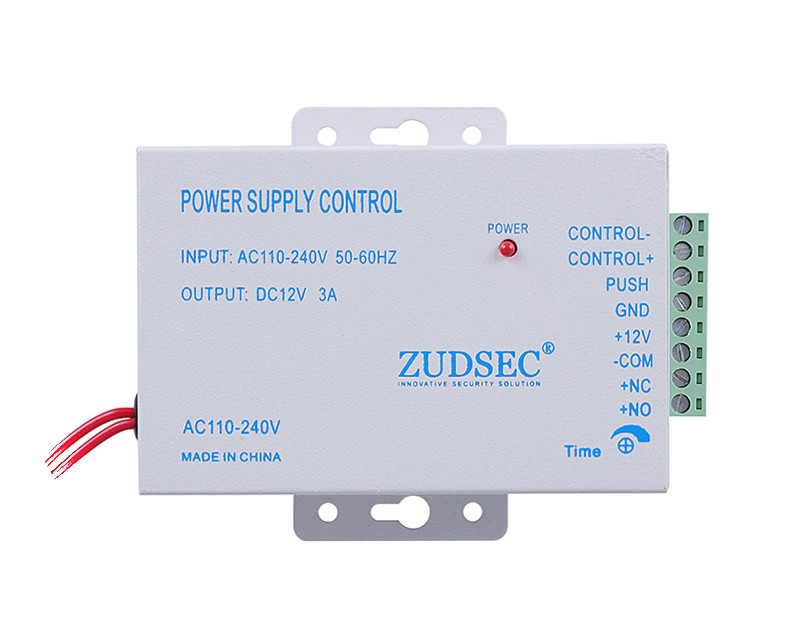

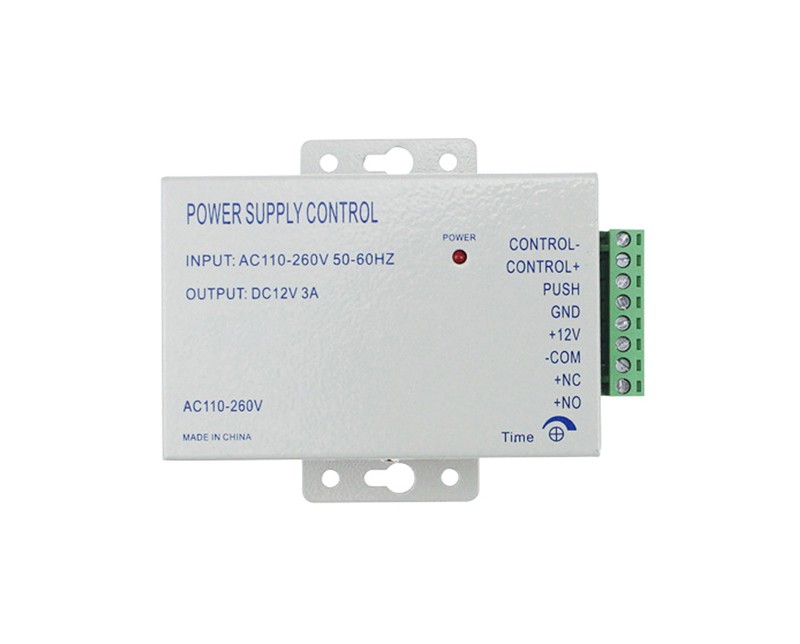

Multi-Angle View

Power Supply Controller

MODELZDAP-K80

Facebook Twitter InLink instagram Youtube Skype
  • AC110V~260V input, DC12V, 3A output

  • Easy for install

  • convenient for connect

  • Dampproof design

  • Can connect NO, NC electric lock.

  • Produced with High Quality Element.

  • Special Design, Suitable for Access Control.


Access Control Power Supply: AC110V~260V input,12VDC 3A output, with Regulatory function with delay, Easy for install, convenient for connect, Dampproof design; Can connect NO/NC electric lock; Suitable for Access Control system.

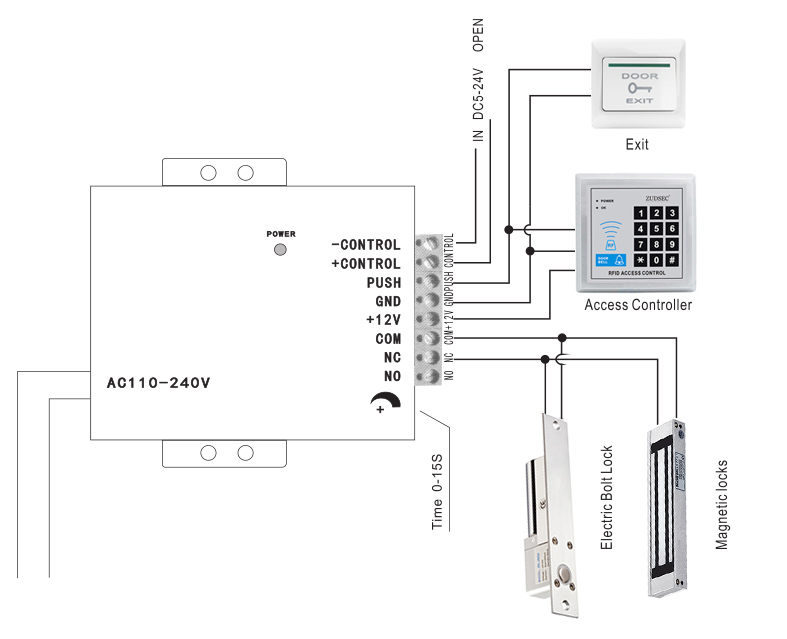

- Wiring Diagram:

Power Supply Controller(图1)


- Designate for building talkbacks and all kinds of access controllers, especially for kinds of EM locks and bolts
- Output: DC12V 3A
- Control electric locks or bolts directly
- Reduce the load of access controller
- Save circuit wire works, lower potential trouble
- Have output NC/NO, control all kinds of electric locks
-  Has delay control circuit
- Unlock delay time: 0~10s
- Auto protection

  • Input: AC110V~260V. 50~60Hz

  • Unlock delay time: 0~10s

  • Have output NC/NO, control all kinds of electric locks

  • Output: DC 12V 3A

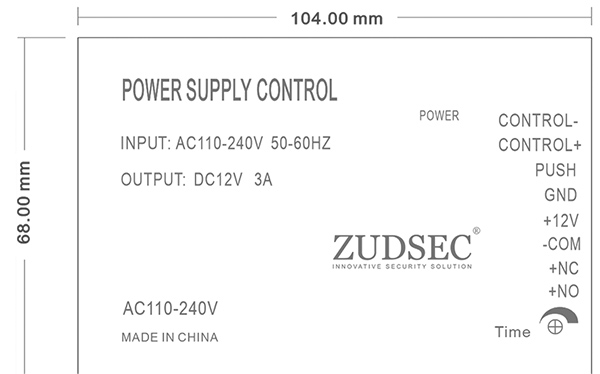

- Product Layout:


Power Supply Controller(图1)




Package Contents:

  • Standard Exporting Packing Box
