Standalone Access Control: ZDAC-2501
Multi-Angle View

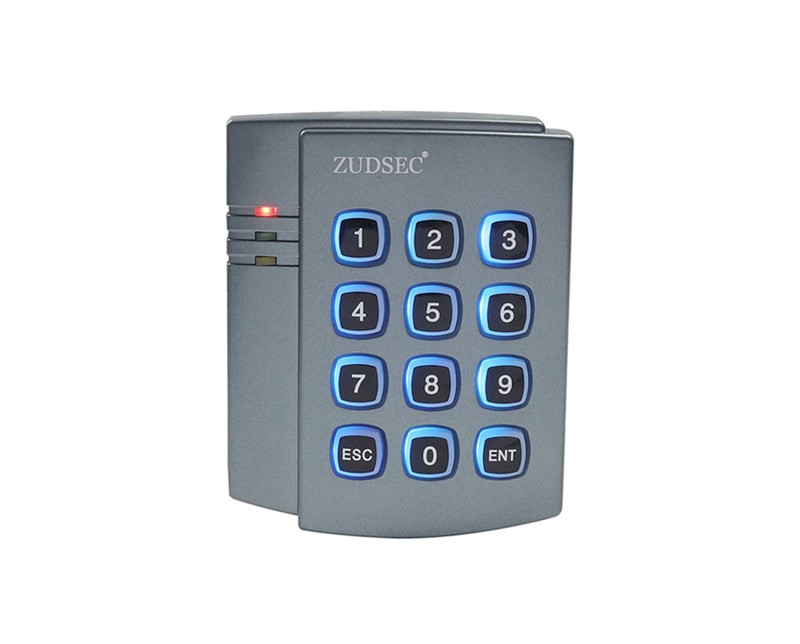

Standalone Access Controller -Blue Backlight

MODELZDAC-2501

Facebook Twitter InLink instagram Youtube Skype
  • Digital Keyboard

  • Keystroke backlight

  • Support EM-ID / Password Mode

  • Door state detection

  • Operating Mode: Proximity Card, Password or Card + Password.

  • Availability capability of card: 500 users

Standalone Access Controller -Blue Backlight:  This model ZDAC-2501 with build-in reader and Digital Keyboard, look generous, stable performance, use for the office, office buildings and so on. 500 cards has adequate capacity to meet users need, a variety of ways to open the door allows you to set permissions arbitrary.

- Access controller with build-in reader and Digital Keyboard
- Operating Mode flexible: Proximity Card, PIN, or Card + PIN
- 500 people registered capacity, high cost performance, digging every hardware resources.
- Quick issuers mode, whether it is registered general card or the card with a password can be registered.
- Door state detection, only after close stable then start locking signal, preventing the door in the swing when the latch, resulting damage electric locking bolt.
- With door magnetism interface, alarm when open the door violence.


  • User capacity: 500 customer Cards & 500 passwords

  • Read Card distance: more than 8CM

  • Read Card type:  125kHz EM ID Card or Compatible with EM Card

  • Supply Voltage: DC12V

  • Working Current: less than 1000 mA

  • Static current: less than 80 mA

  • Operation Temperature: -10°C-70°C

  • Operation Humidity: 10%-90%

  • Packing box: 14*10*4cm;   Weight:  0.2kg /pc


Package Contents:

  • Standard Exporting Packing Box
