Standalone Access Controller: ZDAC-100T
Multi-Angle View

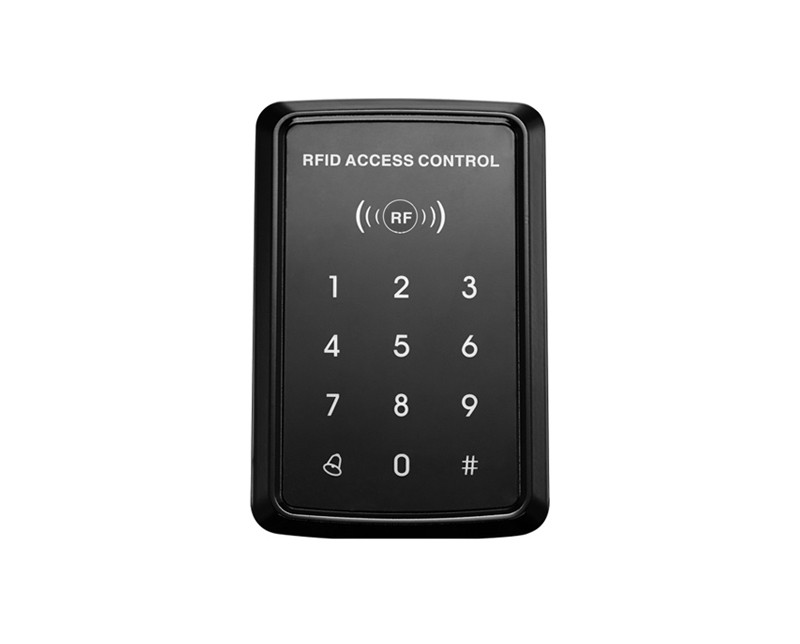

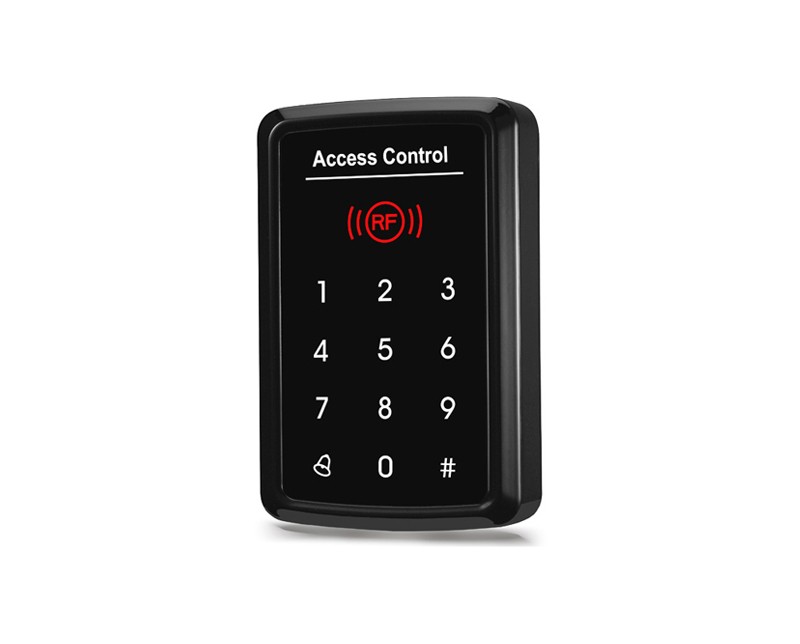

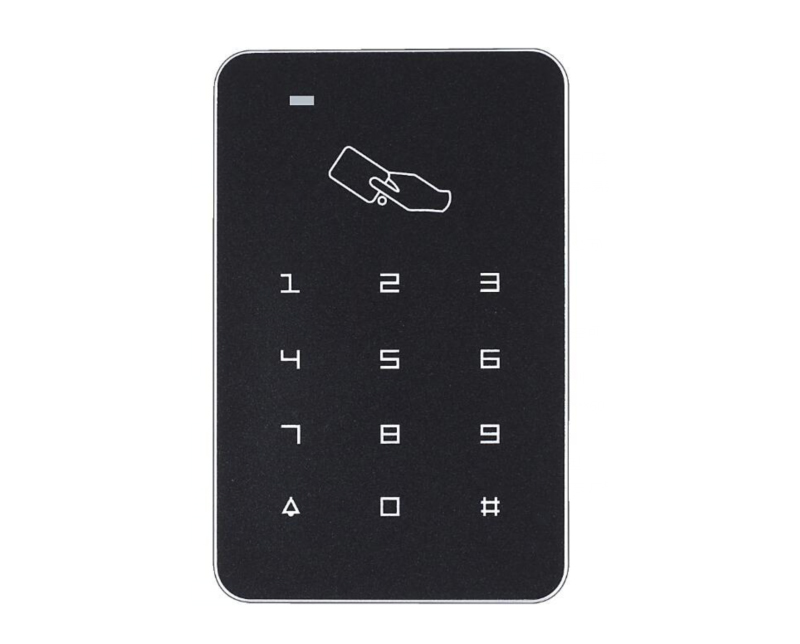

Standalone Access Controller-Touch Panel

MODELZDAC-100T

Facebook Twitter InLink instagram Youtube Skype
  • Touch panel

  • Support EM-ID/Mifare or Password Mode

  • Build-in access control card reader and kepad Manage

  • Operating Mode: Proximity Card, Password or Card + Password.

  • Availability capability of card: 1000 users

Standalone Access Controller-Touch Panel: This Radio Frequency Identification (RFID) access controller is the 3rd generation controller. With newly added functions it is one of the most advanced standalone access controller. The controller is built on powerful modern Central Processing Unit. It manages up to 1000 card holders, and access mode can be set to Authorized Card Only, Authorized Card or Public PIN and Authorized Card + Personal PIN.


- Optional model: ZDAC-200T (Touch panel)


- Support EM-ID/Mifare or Password Mode
- Build-in access control card reader and kepad Manage
- Operating Mode: Proximity Card, Password or Card + Password.
- Availability capability of card: 1000 users,
- Open modes:  Card、Card+ PIN、 PIN
- Has 1 door button Port and 1 doorbell Port;
- Has 1 Relay  output and 1 PUSH (low) output;
- Has anti-tamper function and safely operation mode;
- Application: Office building,Community, Apartment,Government,Bank,etc

Model

ZDAC-100T

 Capacity 1000 cards, each with a Personal PIN. one Public PIN
 Reading Distance 1~15CM
 Compatible Cards EM ID Card or EM compatible cards
 Relay output Alarm: 100mA     Lock: 5A
 Voltage 12VDC+10%; Current 0.1A
 Temperature -20℃~60℃
 Humidity 20%~90%
 Dimension 116mm x 116mm x 20mm
 Weight 150g


Packing size: 14*14*3CM, Gross weight: 0.15Kg/Pc


Package Contents:

  • Standard Exporting Packing Box
