WiFi Access Control: ZDAC-300TW

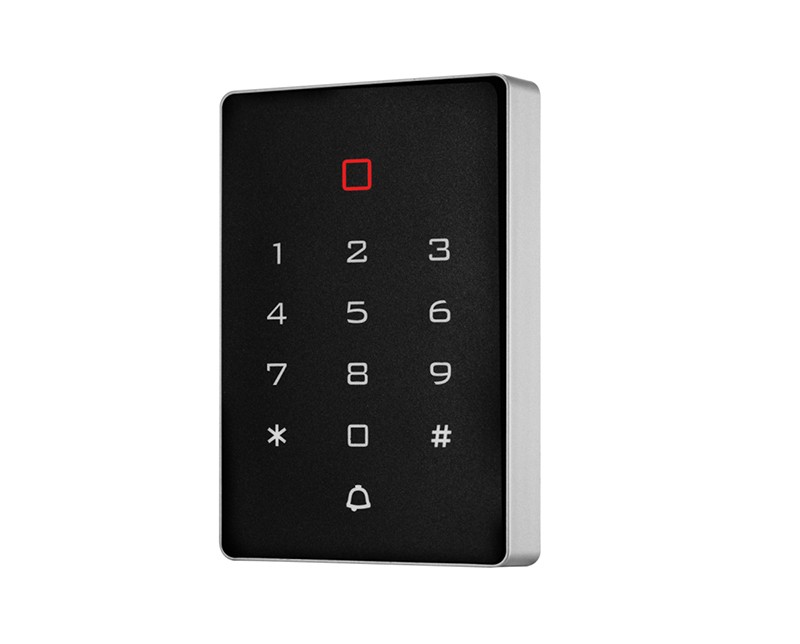

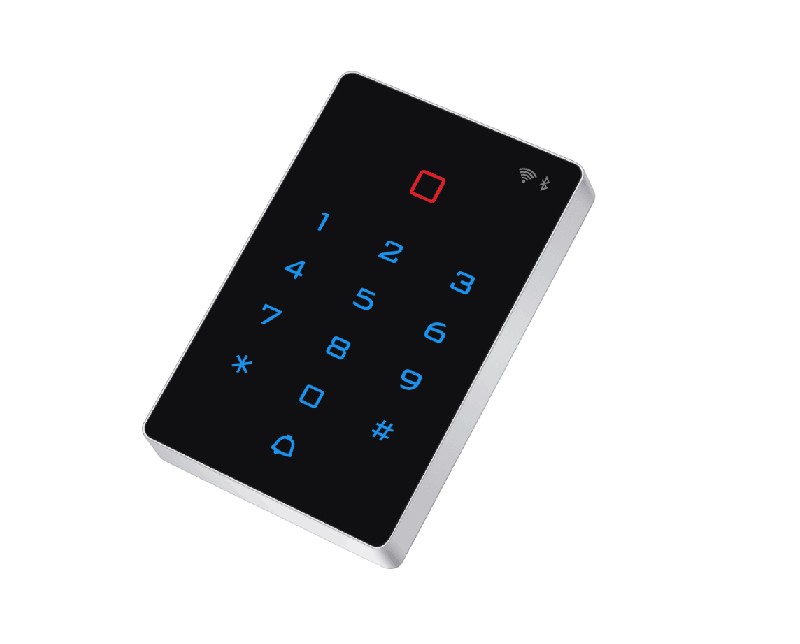

Multi-Angle View
Stand-Alone Access controller:  ZDAC-300

WiFi Access Controller -Touch Keypad

MODELZDAC-300TW-WIFI

Facebook Twitter InLink instagram Youtube Skype
  • WiFi App Control

  • IP68 Waterproof design

  • Touch Keypad, with doorbell key

  • 2000 uers Capacity

  • Data backup output/input

  • Card appliance: 125kHz EM ID cards ( MF card optional)

  • Identification way: APP, Card, Pin, Card+Pin

WiFi Access Controller -Touch Keypad : WiFi Network, Remotely open the lock by APP control, WG26 output/Input, 2,000 cards Capacity, It builds-in STC microprocessor, with strong anti-interference ability,high security and reliability,powerful function and convenient operation. It’s widely used in high-end buildings, residential communities and other public places.


Optional model: ZDAC-300WT (without waterproof function)



WiFi Access Controller -Touch Keypad(图1)


- Capacity: 2000 card users
- Can be used as WG26 reader
- Can connect external EM/HID WG26 output reader
- Two units can be interlocked
- Can realize Anti-passback function for single or two doors
- Can add consecutive user cards
- Can set master add card/master delete card

- Data backup output/input: Send the data to external device, or receive the data from external device.
- Relay toggle mode: After unlocked the door, users should read the card again or press exit button to lock the door,

ModelZDAC-300TW-WiFi
 RFID users2000
 WaterproofIP68
 Supply Voltage 12VDC±10%
 Sleeping Current <20mA
 Stay Current <30mA
 Temperature -15ºC-60ºC
 Humidity 20%RH-95%RH
 Lock output load capacity 3A
 Alarm output load capacity 20A
Door Relay time0~99S (Adjustable)
Card Reading Distance1~3cm
 Dimensions 115L*56W*22H(mm)
 N/W 300g
 G/W 3500g


Package Contents:

  • Standard Exporting Packing Box
