Metal Shell Access Controlle -Waterproof

Waterproof Metal Shell Access Controller -WiFi Optional

MODELZDAC-2400W

Facebook Twitter InLink instagram Youtube Skype
  • Waterproof, conforms to IP68, Backlight keys

  • Wifi App control optinal

  • Exquisite designs with non-masking Metal shell

  • Keystroke backlight

  • Card appliance: 125kHz EM ID cards

  • WG26 output, can be used as a Access reader.

  • 2000 uses, supports Card, PIN, Card + PIN


Standalone Access Controller -Metal Shell: The ZDAC-2400W uses the latest microprocessor technology to operate door strikes and security systems that require a momentary (timed) or latching dry contact closure. All programming is done through the keypad. Codes and operating parameters are stored within the microprocessor and can not be lost due to power failure.


The ZDAC-2400W can store 2000 prox cards and user 4~6 digit password codes; Three access way: Card, Pin, Card+Pin, Backligh keypad, WG26 input & output, with doorbell button to connect with wired doorbell The unit has one relay output with 3 Amp changeover contact.

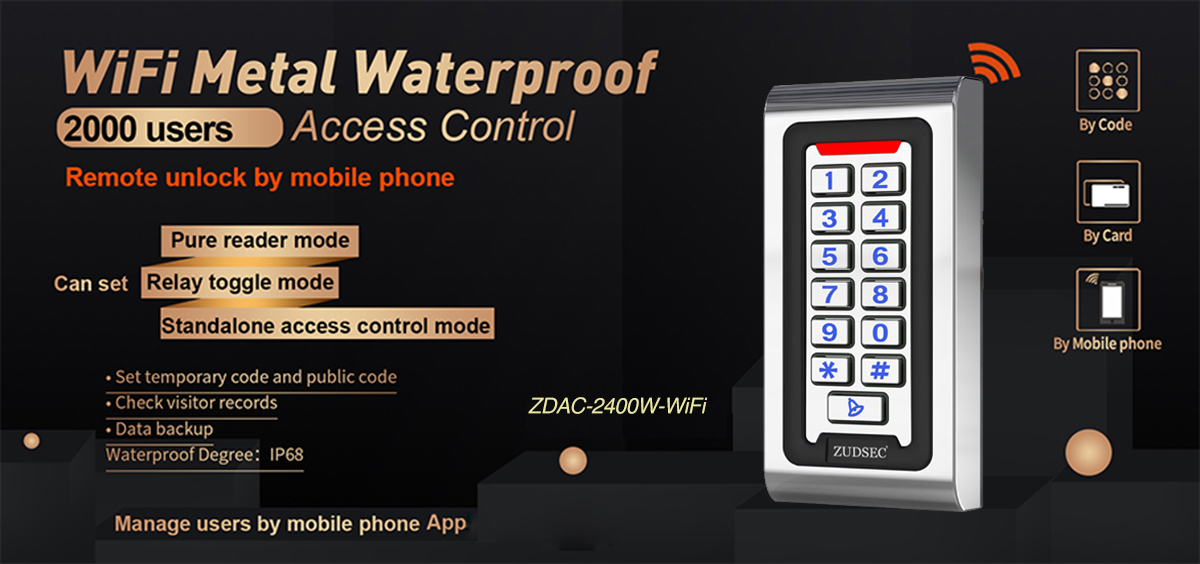

- Optional model: ZDAC-2400W-WiFi (with APP remote control)


Waterproof Metal Shell Access Controller -WiFi Optional(图1)


- Exquisite designs with non-masking Metal shell: Metal shell + Silica gel button(Metal button optional)
- Keystroke backlight
- Card appliance: 125kHz EM ID cards
- Reading range: up to 5 cm
- Change Codes 1 master,2000 users & prox cards
- Door open detection
- Door relay time 00-99 seconds; Alarm time 00-99 minutes
Wiring Connections: Electric Lock, External Bell,  External Push Switch, Magnetic Contacts
- Alarm function
- Non volatile Eeprom memory
- Application: luxurious office building, bank, Prisons

Model

ZDAC-2400W

 Card Types EM or EM compatible
 Codes 2000 users
 Induction Distance 3~6cm
 Door Relay 3A
 Alarm output load 3A
 Tamper Protection Negative loop, normally closed
 Keypad 12 keys, 3 LED status indicators
 Wiring Connections Electric lock
 Remote Request to Exit
 Door open detection
 External door bell
 External Alarm
 Memory Non volatile eeprom memory
 DC Supply Voltage Low voltage input, 12 ±10% Vdc unregulated
 Current Consumption     100mA @ quiescent maximum
 Operating Temperature 0°C to 60°C (32°F to 140°F)
 Keypad Housing Metal
 Dimensions 143mm x 58mm x 25mm
 Weight 500g


Package Contents:

  • Standard Exporting Packing Box
