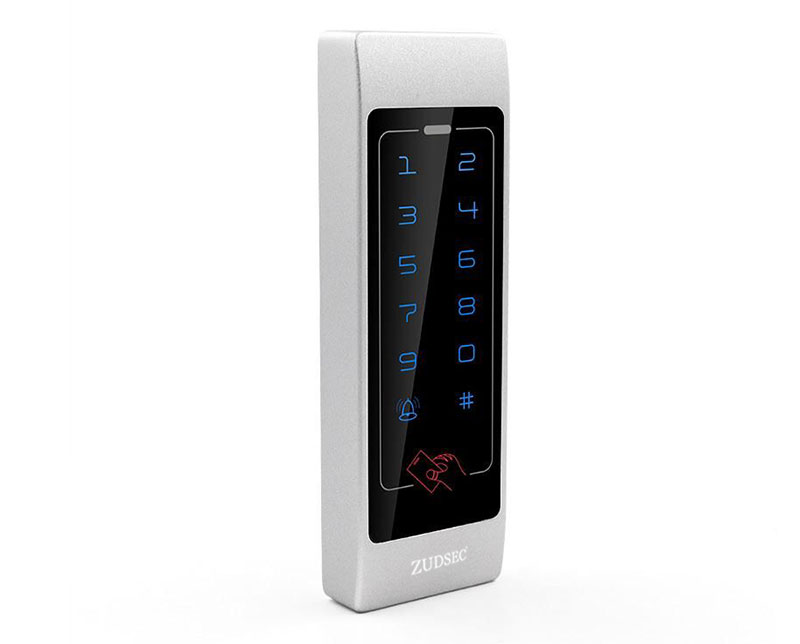

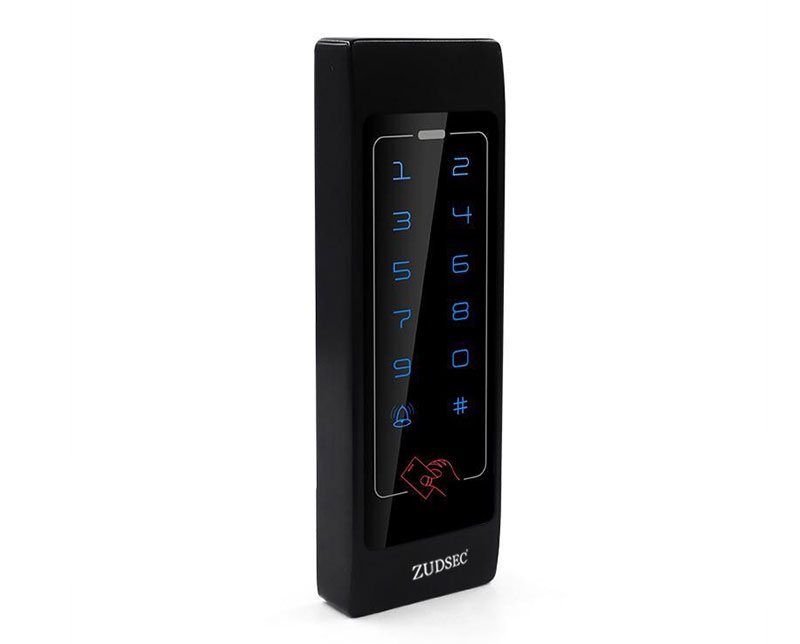

Standalone Access Controller: Touch Keypad, Aluminum alloy structure, Waterproof, fully potted, confirms to IP65, 125KHz EM card for optional, Multi-function, 8P cable with built in door bell function, operating as slave reader, single door, anti-pass back, etc. Can realize the card reading and keypad operation functions, lock, alarm, ring bell, exit button and the magnetic contact switch on the door. Suitable for various occasions.

- Aluminium alloy case, waterproof, fully potted, meets IP-65 waterproof standard

- Touch Panel backlit keypad
- With door bell function, can connect with any external doorbell.
- Built-in 125KHz EM card reader
- 4000 users available,keystroke backlight
- Buit-in buzzer alarm for anti-tamper.
- 4000 serial number cards can be recorded at a time
- Replay control to open
- Special card reader model: Wiegand 26output card number, button entering multiple output

• Operating Voltage DC 12-24V; Operating Current ≤35mA

• Card Reading Distance 3~6CM

• Type of ID Card 125KHz, EM

• Card transmit format: Wiegand 26-37

• OperatingTemperature -40℃~60℃

• Operating humidity 0～95%（non-condensing）

• Product Size: 158.6Lx43Wx21.7D(mm); Weight: 0.5Kg

Package Contents:

• Standard Exporting Packing Box
