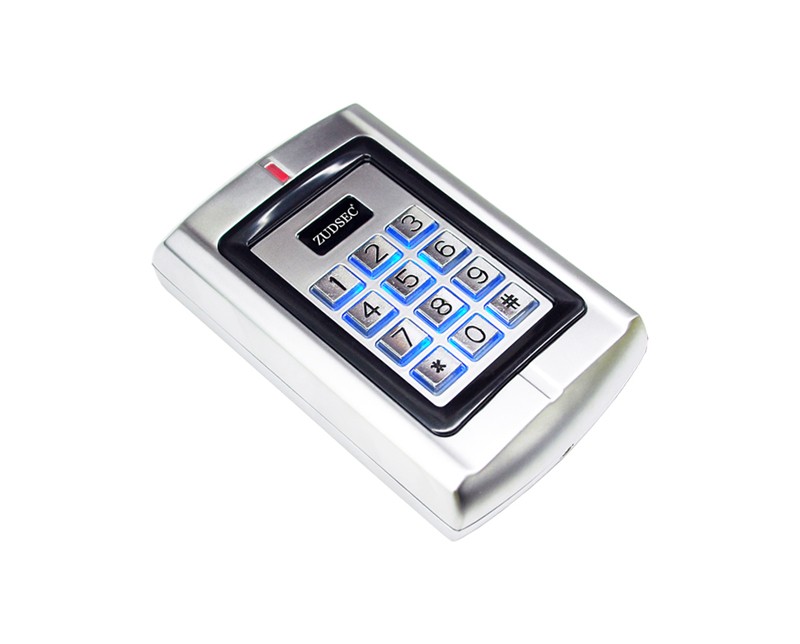

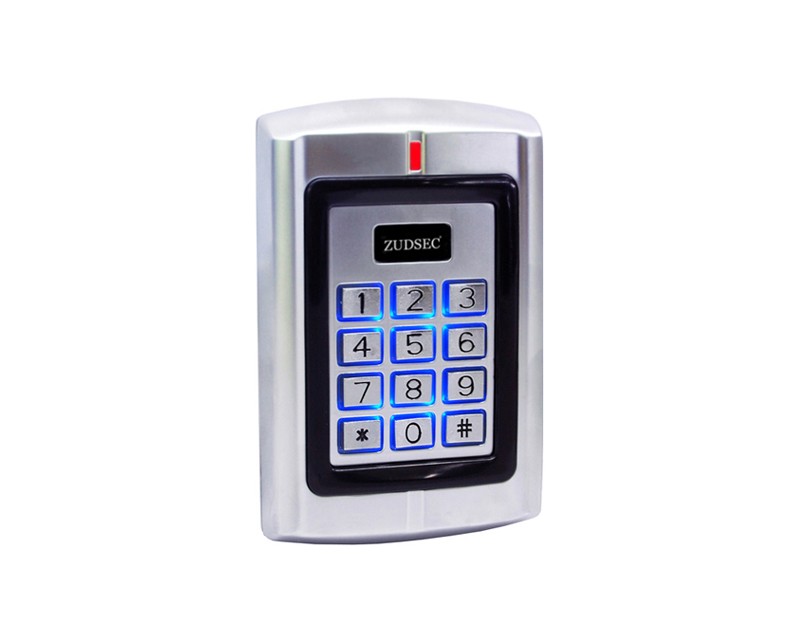

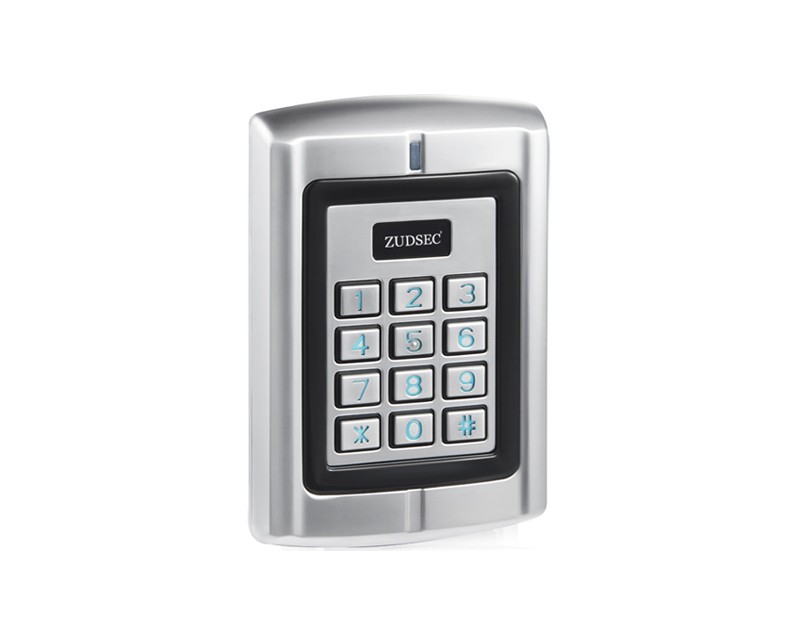

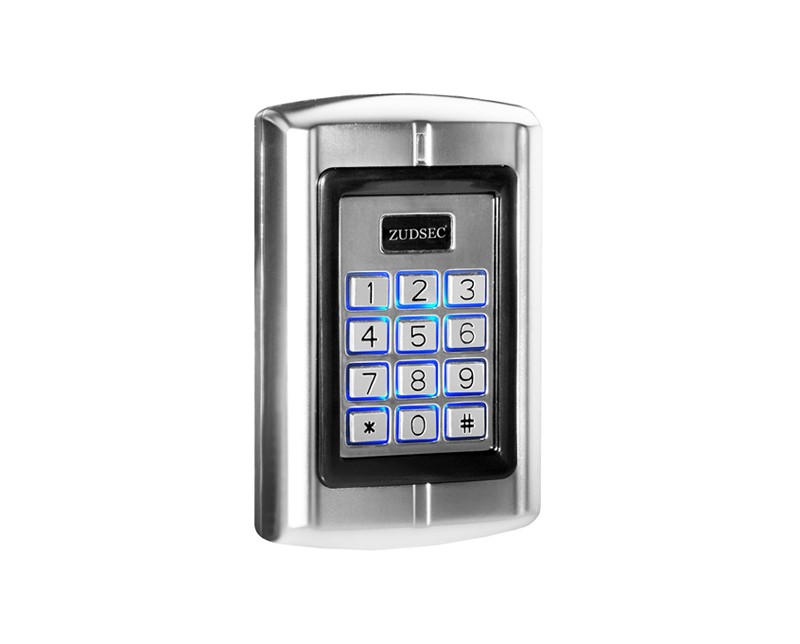

Standalone RFID Door Access Control -Metal Shell: The ZDAC-2000/2100 uses the latest microprocessor technology to operate door strikes and security systems that require a momentary (timed) or latching dry contact closure. All programming is done through the keypad. Codes and operating parameters are stored within the microprocessor and can not be lost due to power failure.

The ZDAC-2000/2100 can store 1000 prox cards and user 4 digit password codes. Each 4 digit password code has 10,000 possible combinations. The unit has one relay output with 5 Amp changeover contacts.

- Exquisite designs with non-masking Metal shell
- Keystroke backlight
- Card appliance: 125kHz EM ID cards
- Reading range: up to 5 cm
- Change Codes 1 master,1000 users & prox cards
- Door open detection
- Door relay time 00-99 seconds; Alarm time 00-99 minutes
- Wiring Connections: Electric Lock, External Bell,  External Push Switch, Magnetic Contacts
- Alarm function
- Non volatile Eeprom memory
- Application: luxurious office building, bank, Prisons.

* Packing box: 14*10*7cm;   Weight:  0.5kg /pc

Package Contents:

• Standard Exporting Packing Box
