Wifi PTZ camera -Outdoor user : ZDC-Q8

Wifi PTZ Floodlight camera -Outdoor Use

MODELZDC-Q8

Facebook Twitter InLink instagram Youtube Skype
  • Smart Life APP Control

  • 2.0MP HD CMOS Sensor,1080P HD images

  • Resolution up to 1920x1080P

  • With Floodlight, IP66 Waterproof design

  • Support external 128 GB Micro TF card

  • Support Alexa and Google Home

  • WiFi 802.11b/g/n wireless network


Wifi Floodlight PTZ camera -Outdoor Use : ZDC-Q8 is an innovative & unique WiFi IP Home Security & Monitoring system, which combines powerful multi-functions of Real time Video,  2-way Audio intercom, 2.0 MegaPixel, IP66 Waterproof design, Intelligent tracking & Motion detecting, App monitoring, Cloud or TF card storage, Alarm push, Playback, Night version, Advanced Pan/Tilt rotation, and long-distance monitor all in one, use phone to watch the real 2.0MP HD Video,, anywhere of the word can be easily controlled by it at any time. IR image monitoring and detection for moving objects, the Hi-Tech technology can eliminate the false alarm caused by environmental reason.


- Optional Model: ZDC-Q8-4MP ( With 4.0 MegaPixel)

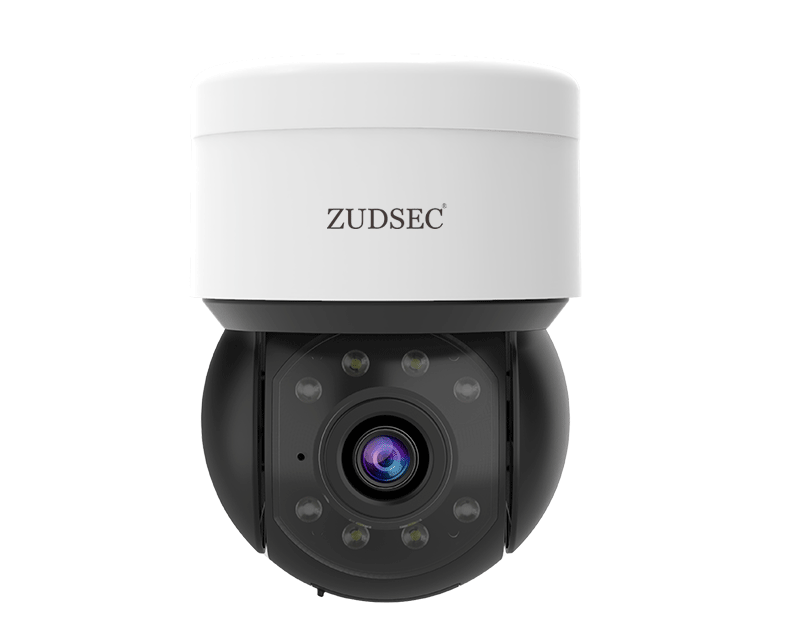

Wifi PTZ camera -Outdoor user (图1)

Wifi PTZ camera -Outdoor user (图2)

Wifi PTZ camera -Outdoor user (图3)

Wifi PTZ camera -Outdoor user (图4)

Wifi PTZ camera -Outdoor user (图5)



Wifi PTZ camera -Outdoor user (图1)

Wifi PTZ camera -Outdoor user (图2)

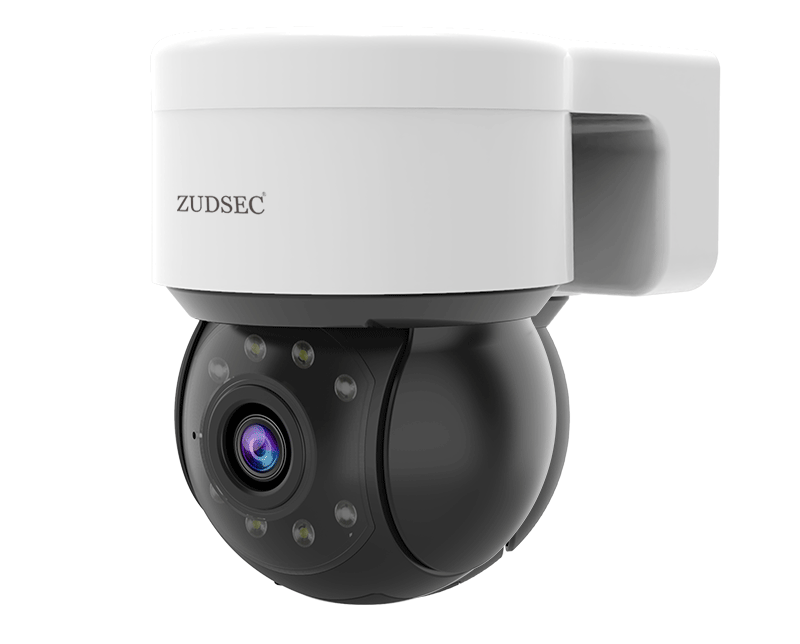

Wifi PTZ camera -Outdoor user (图8)



- Resolution 1920×1080

- Embedded Linux operating system, H.264 encoding method

- Supports 2.4g /5G dual-band wireless networks

- Built-in high-fidelity speaker and high-definition microphone, support two-way voice intercom, with echo cancellation function

- Equipped with high-power 850nm infrared light, the effective distance of night vision can reach 15 meters

- Built-in 2 megapixel, 3.6mm HD lens, maximum viewing angle of 100 degrees

- Support humanoid detection, humanoid tracking, sound motion detection alarm automatic push

- Support Smart Life APP, Support Alexa and Google Home

- Comes with Micro SD card slot, supports up to 128GB memory card,Compatible with major brands of memory cards.

- Multiple network distribution modes, support code scanning, Smart link

- Support cloud video, cloud on-demand, device sharing (unlimited friends);


ModelZDC-Q8
VideoChipFH8626
Sensor1/2.7”Full HD CMOS
Resolution1920×1080(2MP),1280×720(1MP)
Operate SyatemLinux OS
Lens3.6mm
Infrared Light850nminfrared LED,effective   distance of 15 meters
White Light2W, effective distance of 8 meters
IlluminanceColor mode 1Lux,night vision mode 0Lux
Signal to noise ratio≥52dB
Video processingAutomatic gain, automatic white balance, automaticbacklight   compensation, 3D digital noise reduction
Audio InputBuilt-in -38dB noise reduction microphone
Audio OutputBuilt-in 8 ohm 2W high-fidelity speaker
Wired networkRJ-45 10M/100M
wireless network2.4/5G
4G network(optional)
Pairing WaySupport Smartlink, Scan QR code, Wired connection
OtherInstallation WayMounted on the wall
StorageMicro SD card, Cloud storage
WaterproofIP66
PTZHorizontal 355°, vertical 90°
SD cardMax 128GB
Power SupplyExternal power adapter
Applicationtuya For Android&iOS
Working Temperature-20℃ ~+50℃
Working Humidity≤80%RH
Size154mm×149mm×95mm
Weight520g


Package Contents:

  • Standard Exporting Packing Box
