Zigbee PIR Sensor: ZDD-003PIR-ZB

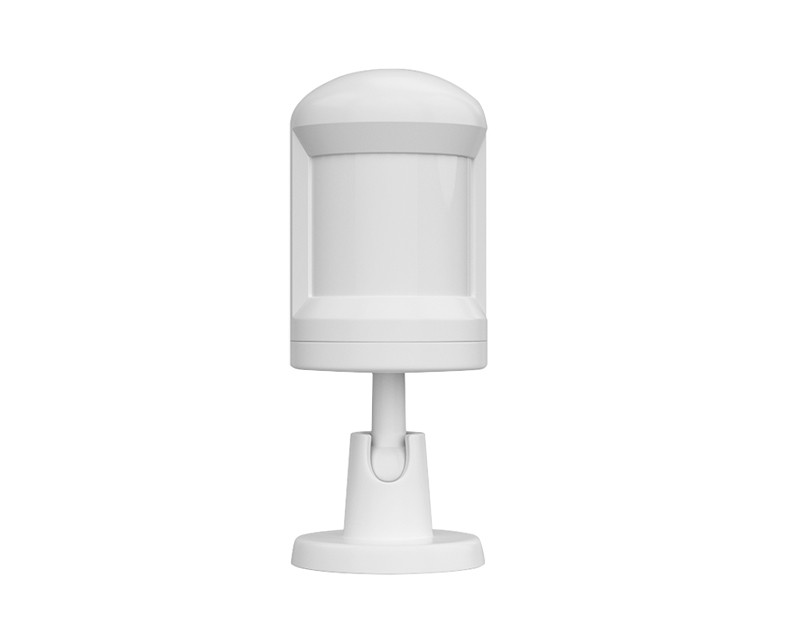

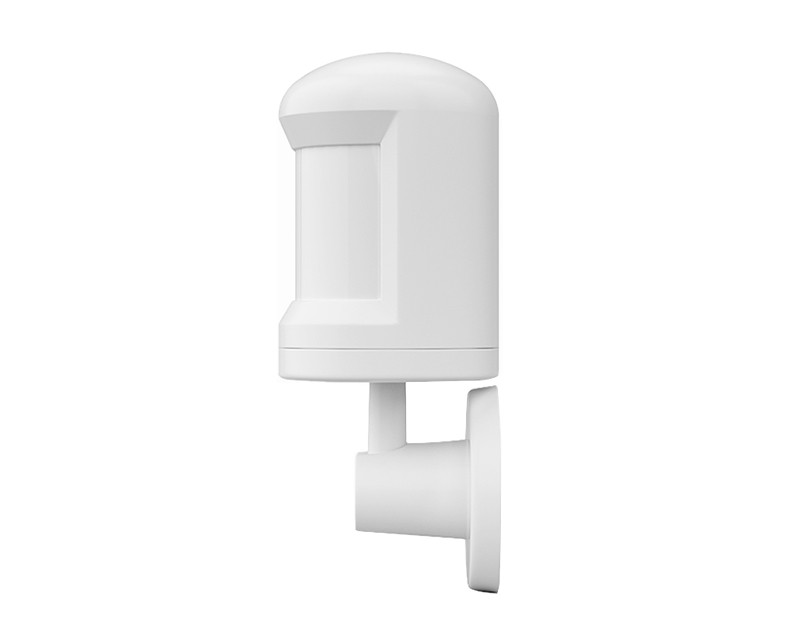

Multi-Angle View
Multi-Angle View

Zigbee Smart PIR Motion Sensor

MODELZDD-003PIR-ZB

Facebook Twitter InLink instagram Youtube Skype
  • Transfer Protocol: Zigbee

  • WiFi frequency: 2.4GHz

  • Working voltage: 2.5V-3.3V

  • Detection range: human body movement near a fixed position

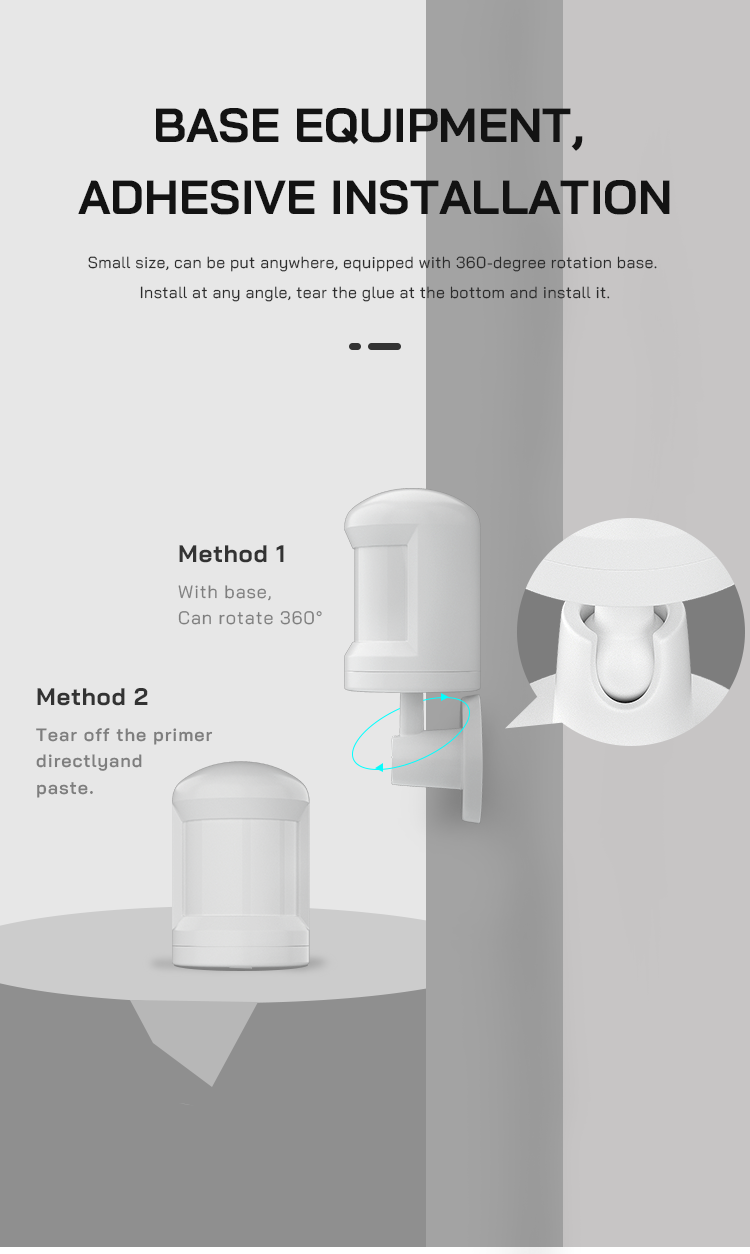

  • Installation method: paste and fix

  • Sensing distance: indoor 7 meters

  • Detection angle:Wide angle 150°

  • Work with Zigbee smartway hub


Zigbee Smart PIR Motion Sensor: Zigbee protocol, Ultra low power consumption, ZDD-003PIR-ZB is designed by infrared to detect the movement of humans or animals in the environment, combined with other devices, to achieve intelligent application scene.


- Note: Zigbee sensor can't work stand alone, this device needs to be used with ZigBee gateway!.


Zigbee Smart PIR Motion Sensor(图1)

Zigbee Smart PIR Motion Sensor(图5)

Zigbee Smart PIR Motion Sensor(图6)

Zigbee Smart PIR Motion Sensor(图4)

Zigbee Smart PIR Motion Sensor(图2)

Zigbee Smart PIR Motion Sensor(图3)


- Ultra low power consumption and long battery life

- Digital temperature compensation technology

- With anti-white light function

- Mobile App Remote Control.

- Ultra low power consumption.

- Anti-demolition alarm,mobile alarm settings.

- Support message push, Angle Adjustment

- Support Alexa/Google Home/IFTTT voice control


  • Detection Distance  5~7 Meters

  • Detection Angle  150°

  • Battery Type  CR2450, 3V, 2-years battery time.

  • Stand-by current: <5uA

  • Working current: <80mA

  • Working Temperature -10℃~45℃

  • Working Humidity 10%-90%RH(No Condensation)

  • Wireless Connection  Zigbee 3.0

  • Dimension:  34*50mm


Package Contents:

  • Standard Exporting Packing Box
