Zigbee PIR Sensor: ZDD-002PIR-ZB
Multi-Angle View
Multi-Angle View
Multi-Angle View

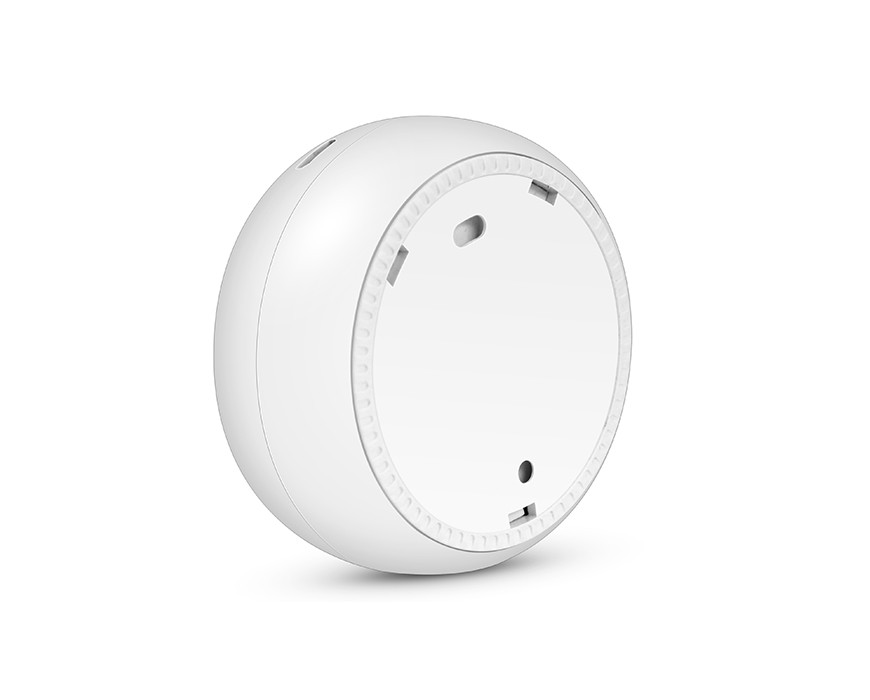

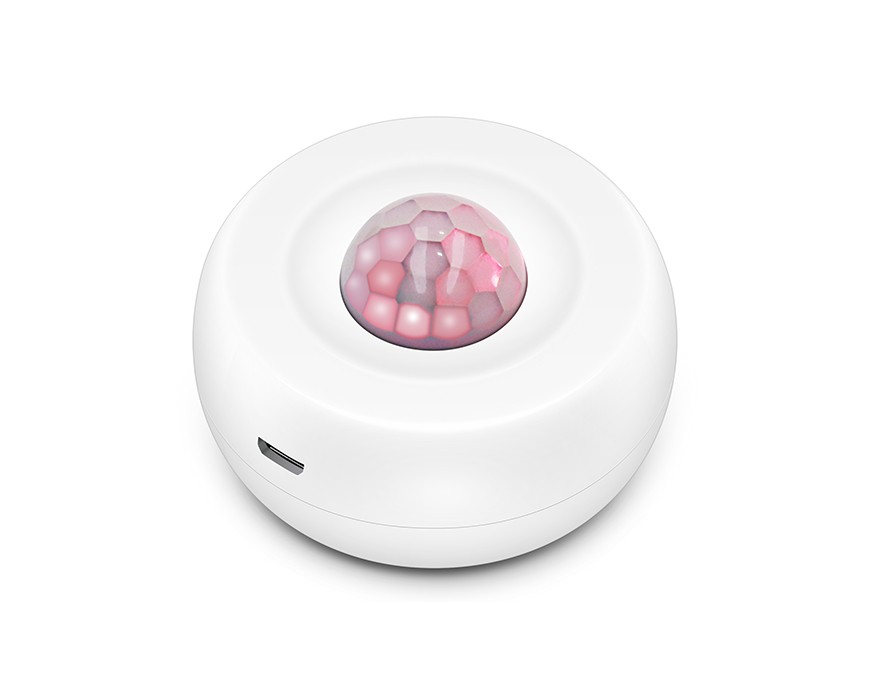

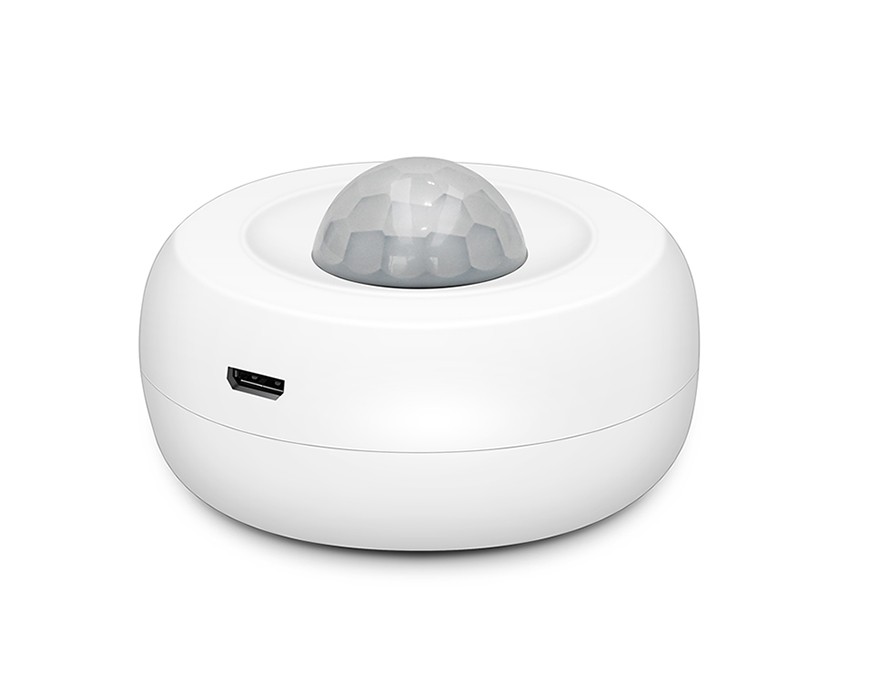

Zigbee Smart Ceiling PIR Sensor

MODELZDD-002PIR-ZB

Facebook Twitter InLink instagram Youtube Skype
  • Detection distance:7m

  • Detection angle:Wide angle 120°

  • Battery: AAA1.5V*3

  • Main function:Intelligent linkage

  • Wireless Standard:WIFI802.11b/g/n

  • Housing material:ABS

  • Ceiling mount installation


Zigbee Smart Ceiling PIR Motion Sensor: Zigbee protocol, Ultra low power consumption, 6m protectiong distance. ZDD-002PIR-ZB is designed by infrared to detect the movement of humans or animals in the environment, combined with other devices, to achieve intelligent application scene.


- Note: Zigbee sensor can't work stand alone, this device needs to be used with ZigBee gateway!.


Zigbee Smart Ceilling PIR Sensor(图1)

Zigbee Smart Ceilling PIR Sensor(图2)


- APP name:TuyaSmart & Smart Life
- Battery:AAA1.5V*2
- Low-battery detection
- Built-battery

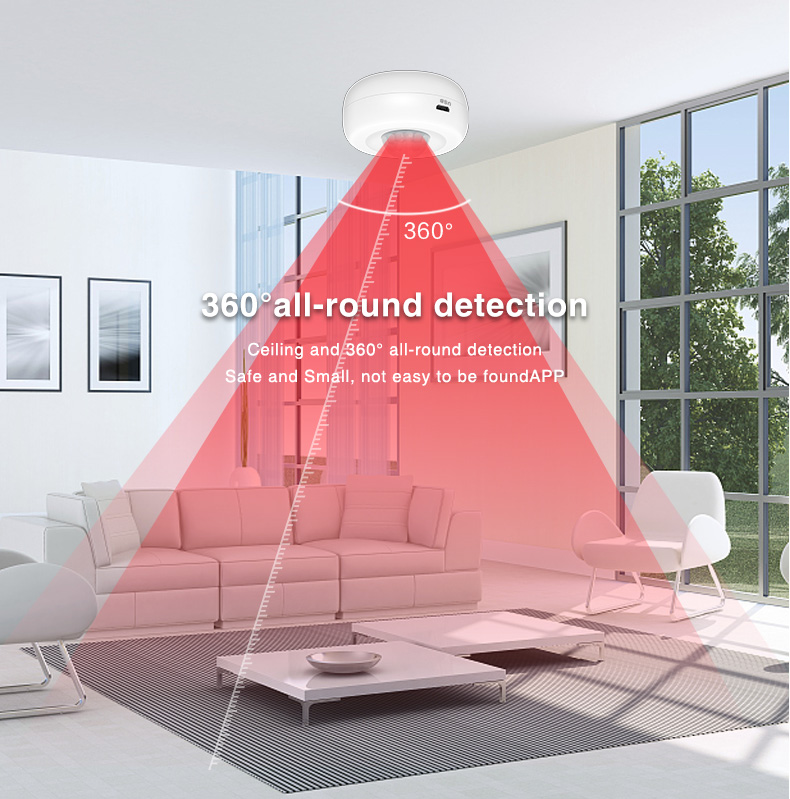

- PIR sensitivity angle:360 degree ceiling-installation
- PIR sensitivity distance:6m
- Wireless type: ZigBee
- Can detect moving and leaving, Suitable for sense linkage Smart Life

  • USB Input voltage:DC5V/ 2A

  • Battery Input voltage:DC3V LR03

  • Static Current:≤35uA

  • Working current:≤15mA

  • Low-voltage notification:≤2.4V

  • zigbee operating frequency:2.400GHz-2.484GHz

  • Detecting Distance:6M

  • Detecting Angle:360°Ceiling Mounted

  • Working Temperature:-10~+50℃

  • Working Humidity:≤95% RH


Package Contents:

  • Standard Exporting Packing Box
